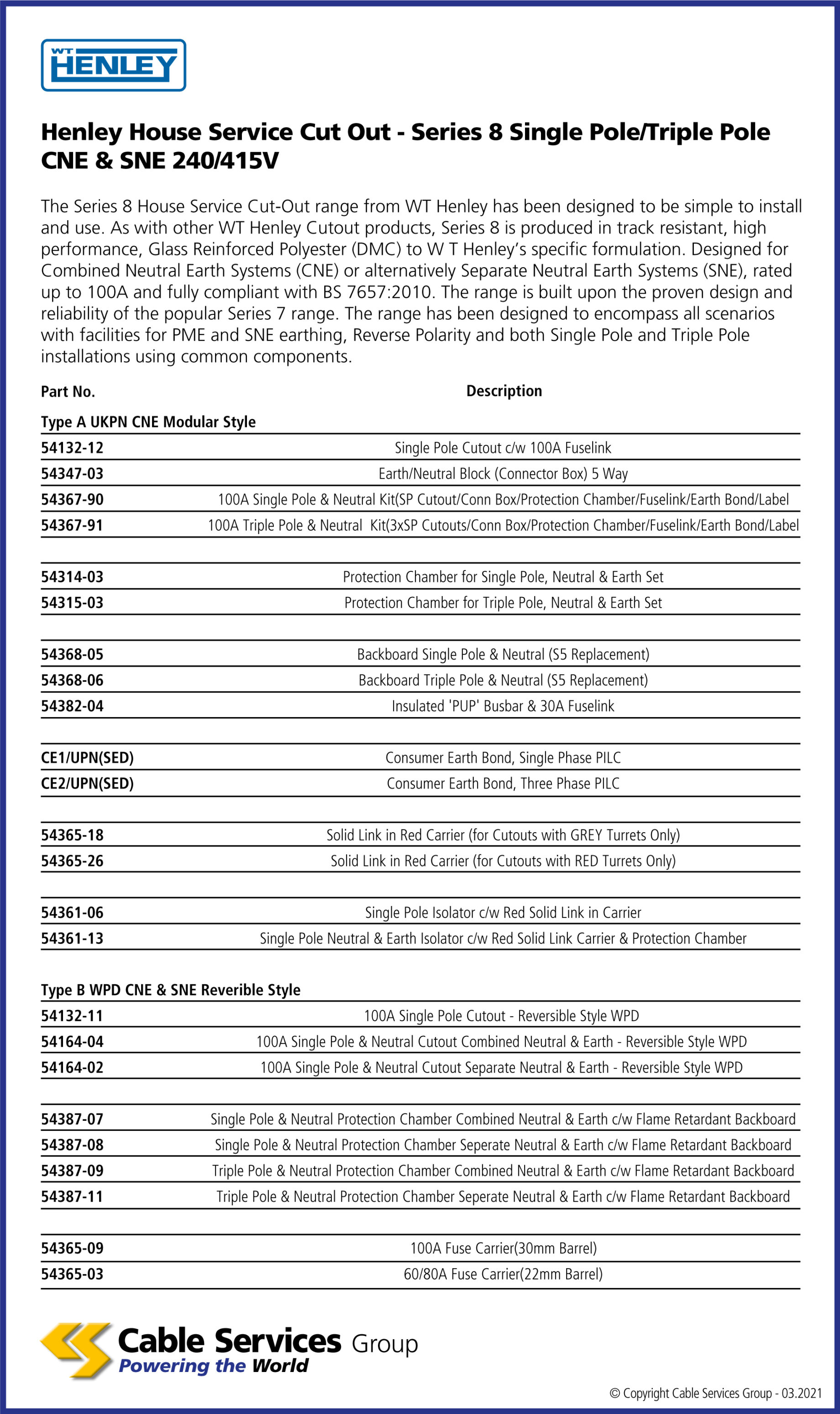

Selection Table

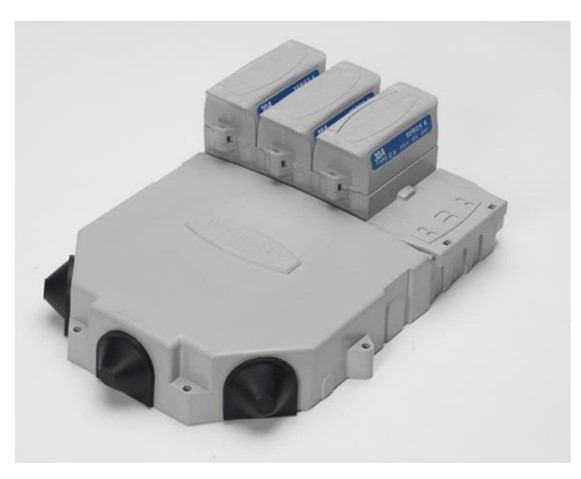

Henley House Service Cut Out – Series 8 Single Pole/Triple Pole
The Series 8 House Service Cut-Out range from WT Henley has been designed to be simple to install and use. As with other WT Henley Cutout products, Series 8 is produced in track resistant, high performance, Glass Reinforced Polyester (DMC) to W T Henley’s specific formulation. Designed for Combined Neutral Earth Systems (CNE) or alternatively Separate Neutral Earth Systems (SNE), rated up to 100A and fully compliant with BS 7657:2010. The range is built upon the proven design and reliability of the popular Series 7 range. The range has been designed to encompass all scenarios with facilities for PME and SNE earthing, Reverse Polarity and both Single Pole and Triple Pole installations using common components.
Data Sheets
| Reference | Name | |
|---|---|---|
| 54132-12 | Single Pole Cutout c/w 100A Fuselink variant | |
| 54347-03 | Earth/Neutral Block (Connector Box) 5 Way variant | |
| 54367-90 | 100A Single Pole & Neutral Kit(SP Cutout/Conn Box/Protection Chamber/Fuselink/Earth Bond/Label variant | |
| 54367-91 | 100A Triple Pole & Neutral Kit(3xSP Cutouts/Conn Box/Protection Chamber/Fuselink/Earth Bond/Label variant | |
| 54314-03 | Protection Chamber for Single Pole, Neutral & Earth Set variant | |
| 54315-03 | Protection Chamber for Triple Pole, Neutral & Earth Set variant | |
| 54368-05 | Backboard Single Pole & Neutral (S5 Replacement) variant | |
| 54368-06 | Backboard Triple Pole & Neutral (S5 Replacement) variant | |
| 54382-04 | Insulated 'PUP' Busbar & 30A Fuselink variant | |
| CE1/UPN(SED) | Consumer Earth Bond, Single Phase PILC variant | |
| CE2/UPN(SED) | Consumer Earth Bond, Three Phase PILC variant | |
| 54365-18 | Solid Link in Red Carrier (for Cutouts with GREY Turrets Only) variant | |
| 54365-26 | Solid Link in Red Carrier (for Cutouts with RED Turrets Only) variant | |
| 54361-06 | Single Pole Isolator c/w Red Solid Link in Carrier variant | |
| 54361-13 | Single Pole Neutral & Earth Isolator c/w Red Solid Link Carrier & Protection Chamber variant | |
| 54132-11 | 100A Single Pole Cutout - Reversible Style WPD variant | |
| 54164-04 | 100A Single Pole & Neutral Cutout Combined Neutral & Earth - Reversible Style WPD variant | |
| 54164-02 | 100A Single Pole & Neutral Cutout Separate Neutral & Earth - Reversible Style WPD variant | |
| 54387-07 | Single Pole & Neutral Protection Chamber Combined Neutral & Earth c/w Flame Retardant Backboard variant | |
| 54387-08 | Single Pole & Neutral Protection Chamber Seperate Neutral & Earth c/w Flame Retardant Backboard variant | |
| 54387-09 | Triple Pole & Neutral Protection Chamber Combined Neutral & Earth c/w Flame Retardant Backboard variant | |
| 54387-11 | Triple Pole & Neutral Protection Chamber Seperate Neutral & Earth c/w Flame Retardant Backboard variant | |
| 54365-09 | 100A Fuse Carrier(30mm Barrel) variant | |
| 54365-03 | 60/80A Fuse Carrier(22mm Barrel) variant |
