Selection Table

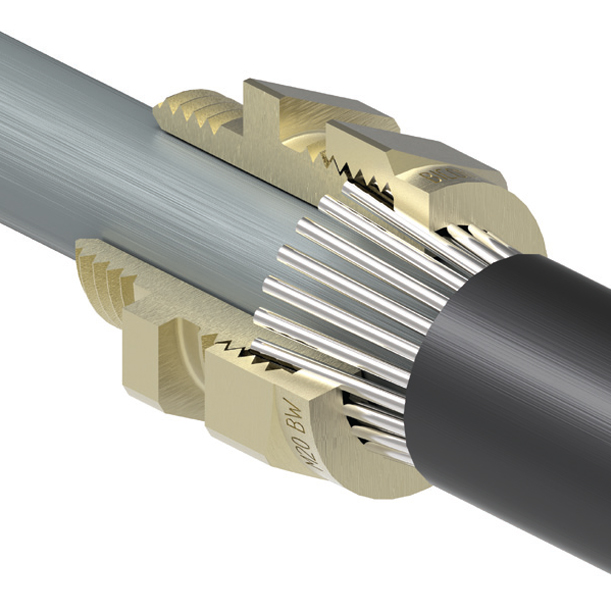

Prysmian Bicon BW Gland Kit
Indoor Cable Gland. Suitable for use with all steel wire armoured cables. The KA410 Series kit comprises of : BW Gland , Brass Earth Tag, Brass Locknut and PVC Shroud. (2 per kit up to and including 25mm size)
Data Sheets

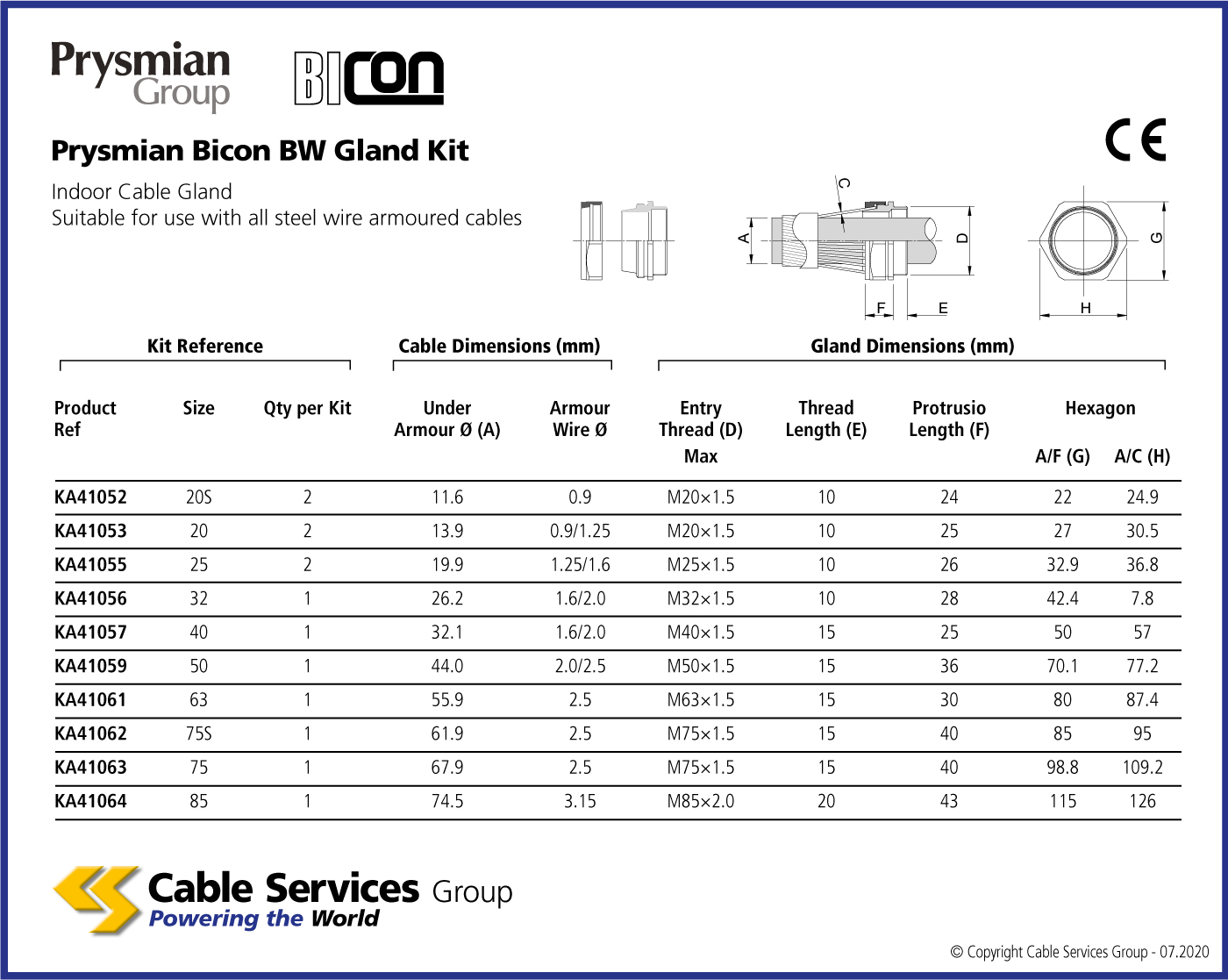

| Reference | Name | |
|---|---|---|
| KA410-52 | 20Smm conductor size | |
| KA410-53 | 20mm conductor size | |
| KA410-55 | 25mm conductor size | |
| KA410-56 | 32mm conductor size | |
| KA410-57 | 40mm conductor size | |
| KA410-59 | 50mm conductor size | |
| KA410-61 | 63mm conductor size | |
| KA410-62 | 75Smm conductor size | |
| KA410-63 | 75mm conductor size | |
| KA410-64 | 85mm conductor size |
