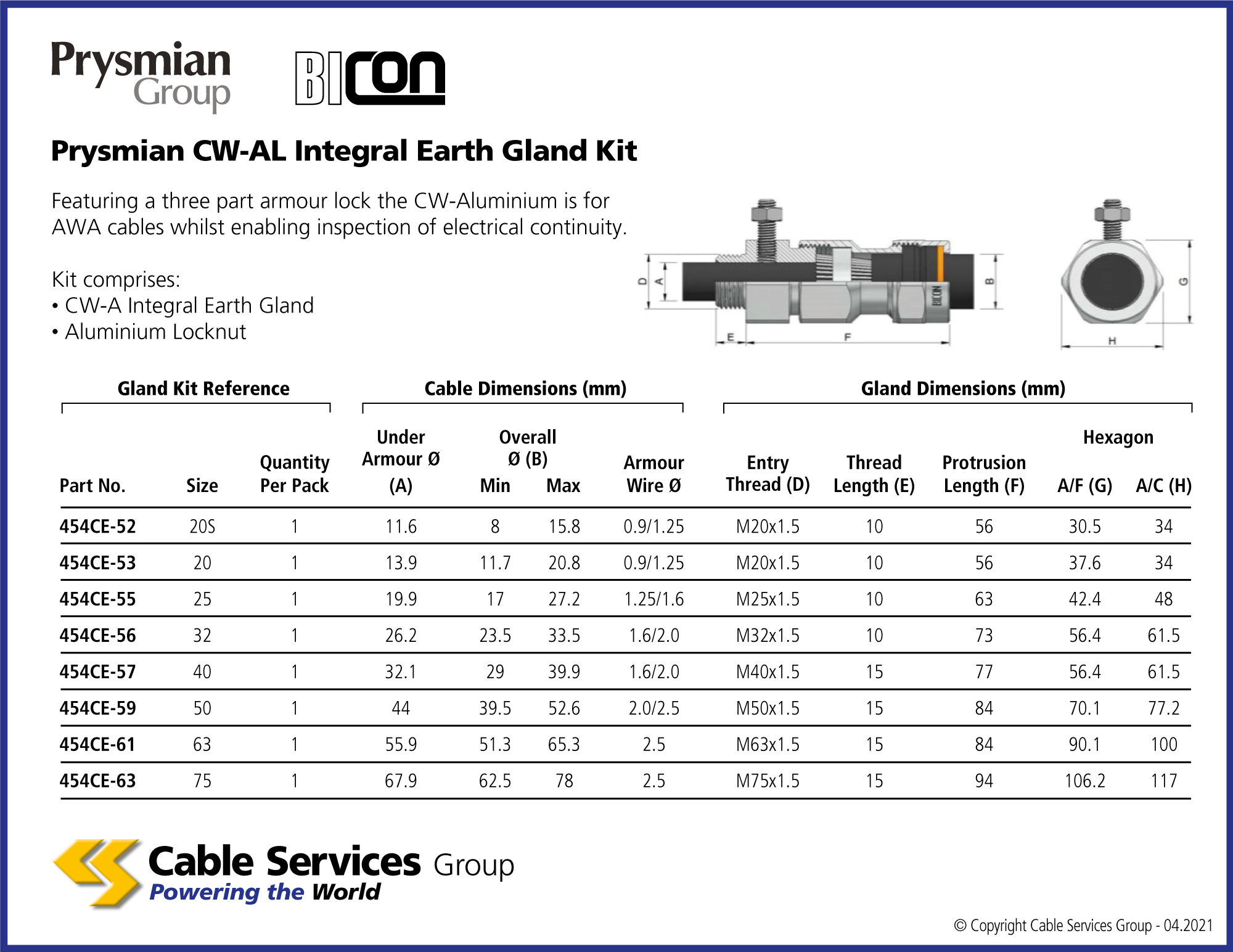

Selection Table

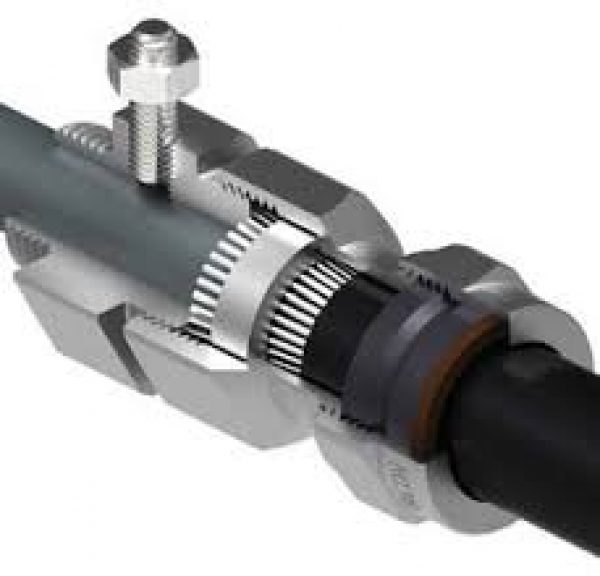

Prysmian CW-AL Integral Earth Gland Kit
Featuring a three part armour lock the CW-Aluminium is for AWA cables whilst enabling inspection of electrical continuity. Kit comprises of: CW-A Integral Earth Gland and Aluminium Locknut
Data Sheets
| Reference | Name | |
|---|---|---|
| 454CE-52 | 20Smm conductor size | |
| 454CE-53 | 20mm conductor size | |
| 454CE-55 | 25mm conductor size | |
| 454CE-56 | 32mm conductor size | |
| 454CE-57 | 40mm conductor size | |
| 454CE-59 | 50mm conductor size | |
| 454CE-61 | 63mm conductor size | |
| 454CE-63 | 75mm conductor size |
