Selection Table
Prysmian Telcleats (Standard)

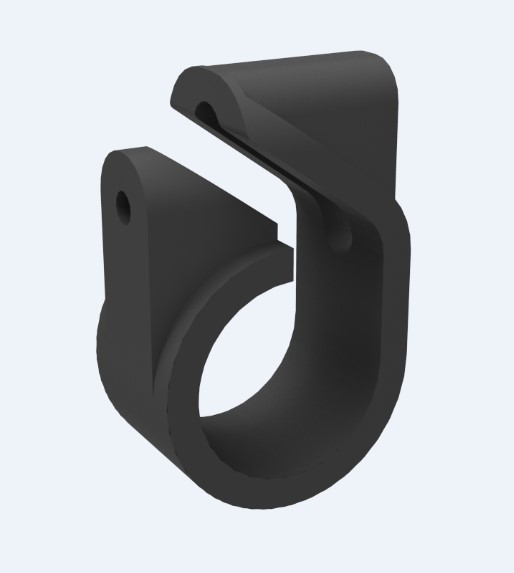

The Telcleat is a single piece cleat which provides protection against all weather conditions and simple installation on a one piece, single fixing design.
Not sure which Telcleat size you need? Check our cable cleat size chart to match your cable diameter to the right cleat.
Data Sheets

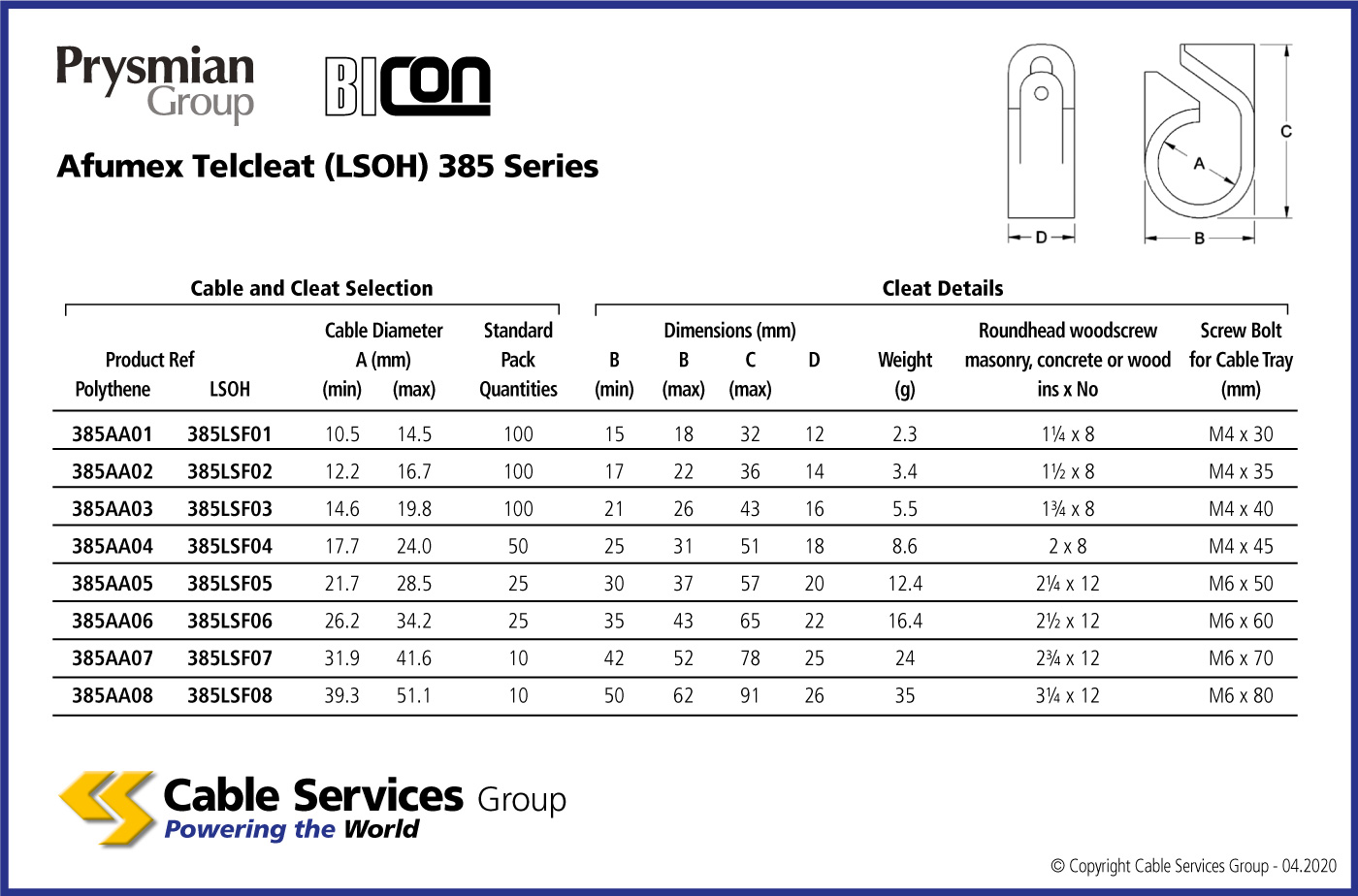

| Reference | Name | |
|---|---|---|
| 385AA01 | 10.5 - 14.5mm cable sizing | |
| 385AA02 | 12.2 - 16.7mm cable sizing | |
| 385AA03 | 14.6 - 19.8mm cable sizing | |
| 385AA04 | 17.7 - 24mm cable sizing | |
| 385AA05 | 21.7 - 28.5mm cable sizing | |
| 385AA06 | 26.2 - 34.2mm cable sizing | |
| 385AA07 | 31.9 - 41.6mm cable sizing | |
| 385AA08 | 39.3 - 51.1mm cable sizing |
