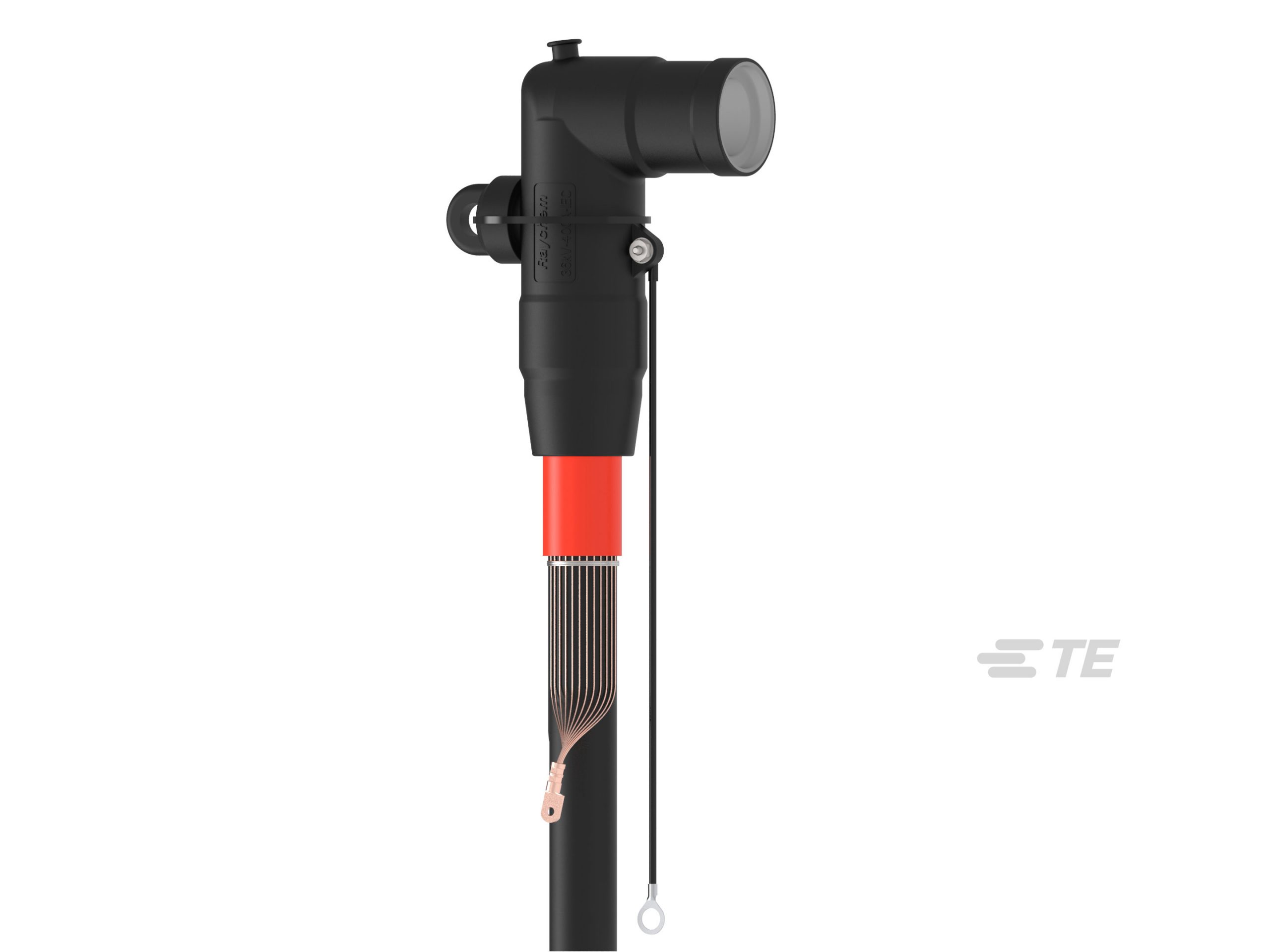

TE Connectivity Raychem Screened, separable elbow connection system RSES Type B 400A for 24kV


Raychem RSES screened, separable elbow connectors are designed to connect single- and three-core polymeric cables to medium-voltage gas-insu la ted switchgear and other equipment using CENELEC bushings Type “B” specified for 400 A up to 36 kV.

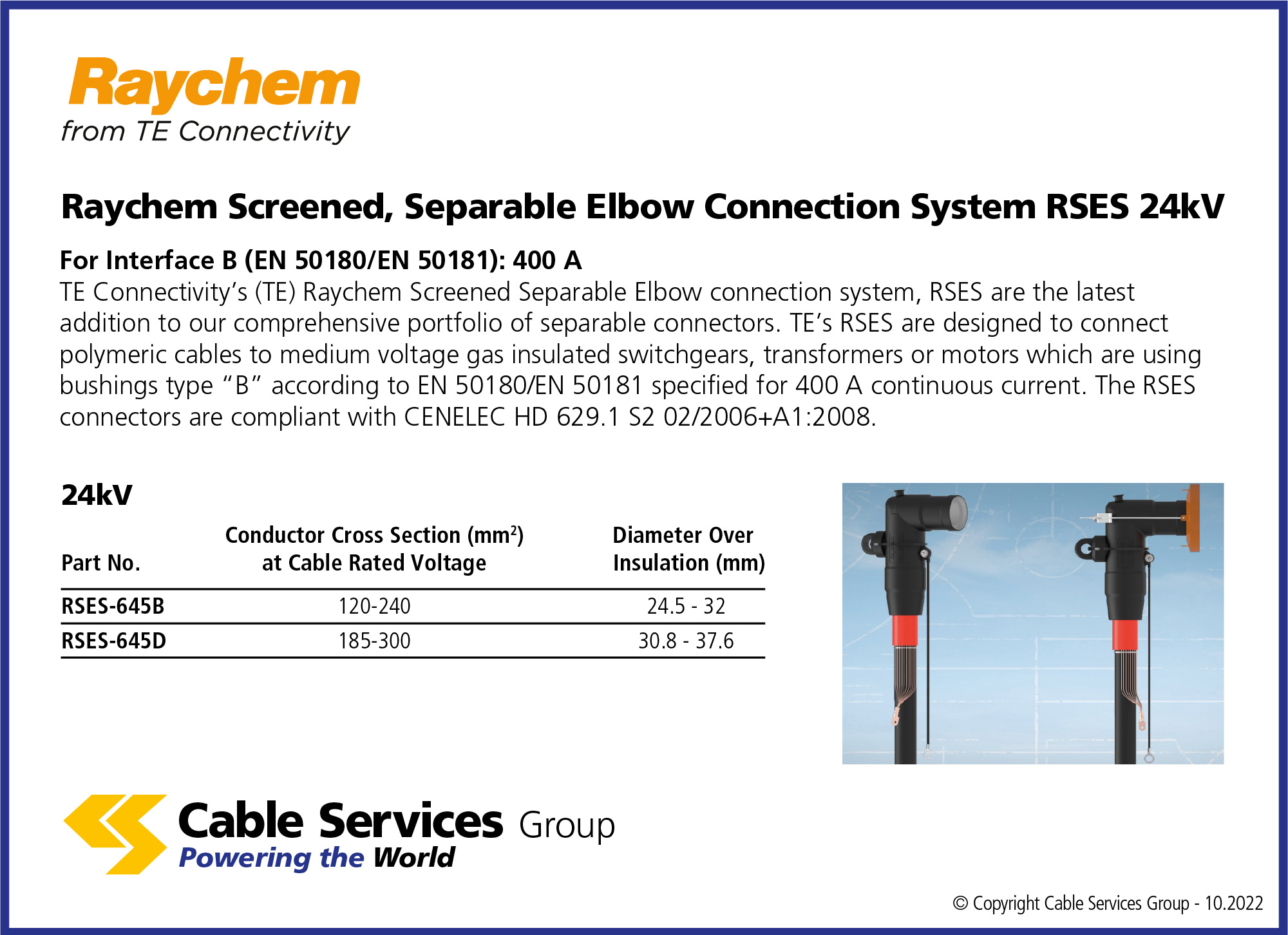

Selection Table

Data Sheets

Download Data Sheet

RSES-645170-95mm2 cross section, 24kV type
RSES-645295-240mm2 cross section, 24kV type
RSES-6454185-300mm2 cross section, 24kV type
