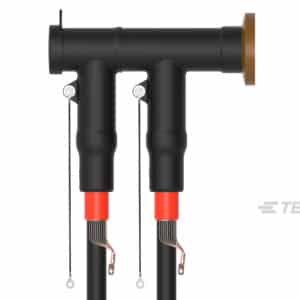

TE Connectivity Raychem Screened Separable T-Connectors RSTI-58 for Interface C, Rated up to 800A/12 Kv

TE Connectivity’s (TE) Raychem Screened separable T-connectors RSTI-58 are designed to connect single and three-core polymeric cables to medium voltage gas insulated switchgear and other equipment using bushings type “C” (EN50180/EN50181) specified for 630/1250A up to 24 kV.

Category:

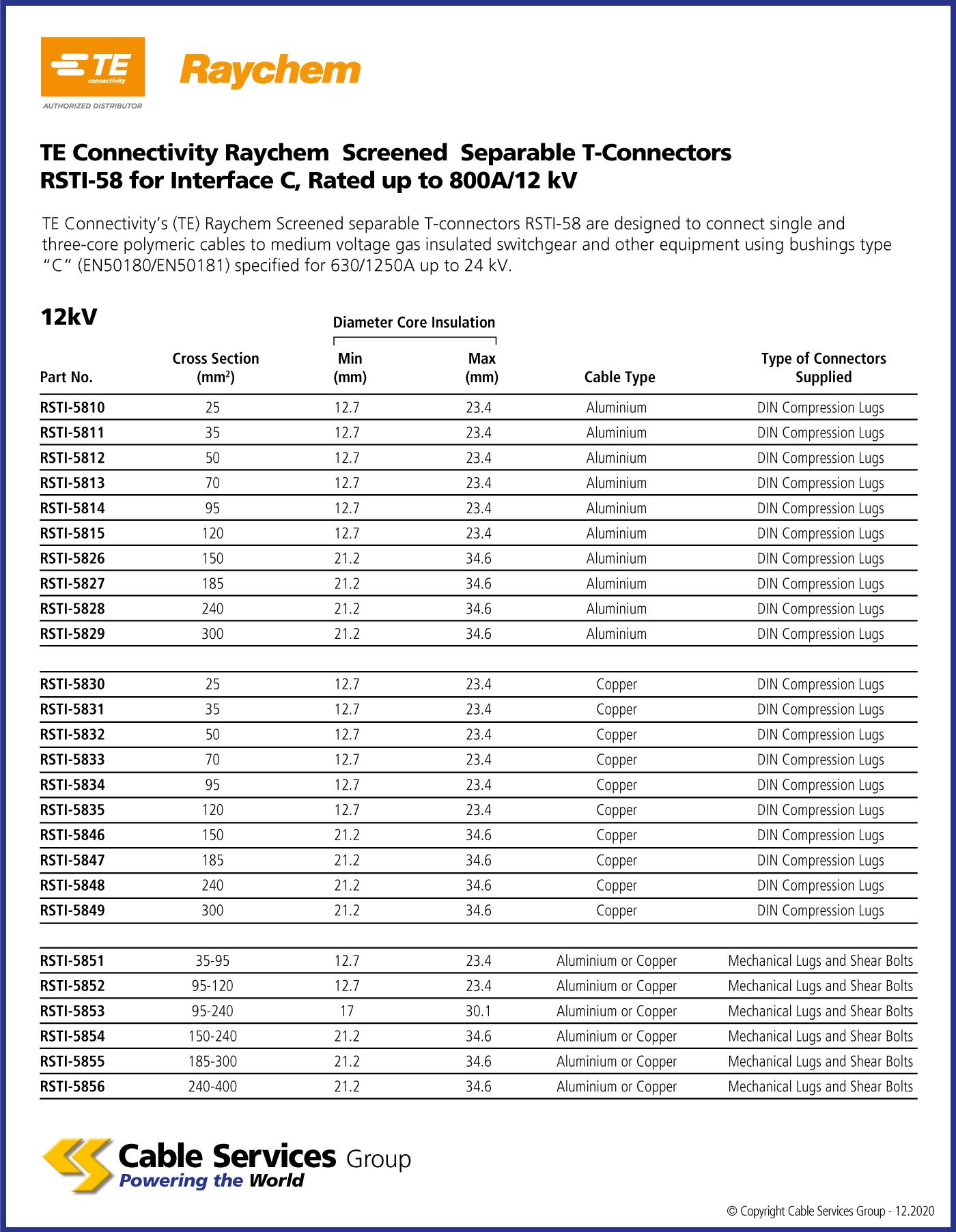

Selection Table

Data Sheets

Download Data Sheet

ReferenceName
RSTI-583370mm2 cross section, Copper type
RSTI-5856240-400mm2 cross section, Aluminium or Copper type
RSTI-5855185-300mm2 cross section, Aluminium or Copper type
RSTI-5854150-240mm2 cross section, Aluminium or Copper type
RSTI-585395-240mm2 cross section, Aluminium or Copper type
RSTI-585295-120mm2 cross section, Aluminium or Copper type
RSTI-585135-95mm2 cross section, Aluminium or Copper type
RSTI-5849300mm2 cross section, Copper type
RSTI-5848240mm2 cross section, Copper type
RSTI-5847185mm2 cross section, Copper type
RSTI-5846150mm2 cross section, Copper type
RSTI-5835120mm2 cross section, Copper type
RSTI-583495mm2 cross section, Copper type
RSTI-581025mm2 cross section, Aluminium type
RSTI-583250mm2 cross section, Copper type
RSTI-583135mm2 cross section, Copper type
RSTI-583025mm2 cross section, Copper type
RSTI-5829300mm2 cross section, Aluminium type
RSTI-5828240mm2 cross section, Aluminium type
RSTI-5827185mm2 cross section, Aluminium type
RSTI-5826150mm2 cross section, Aluminium type
RSTI-5815120mm2 cross section, Aluminium type
RSTI-581495mm2 cross section, Aluminium type
RSTI-581370mm2 cross section, Aluminium type
RSTI-581250mm2 cross section, Aluminium type
RSTI-581135mm2 cross section, Aluminium type
