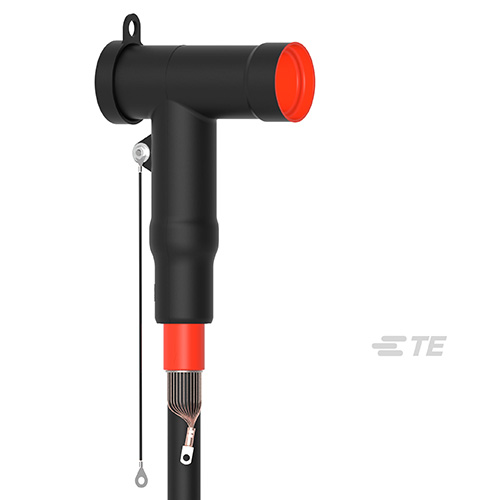

TE Connectivity Raychem Screened Separable T-Connectors RSTI-x9 for Large Cross Sections, Interface C, Rated up to 1250A/36kV and 42kV

TE Connectivity’s (TE) Raychem Screened separable T-connectors RSTI-x9 are designed to connect single and three-core polymeric cables to medium voltage gas insulated switchgear and other equipment using bushings type “C” (EN50180/EN50181) specified for 630/1250A up to 42 kV. TE’s Raychem RSTI-x9 connectors are equipped with a capacitive test point for determining whether the circuit is energised. A conductive cap protects this test point. The RSTI-x9 connectors exceeds CENELEC HD 629.1 S2 requirements, which includes BS; VDE and other international specifications. Our kits include high performance mechanical lugs.

Category:

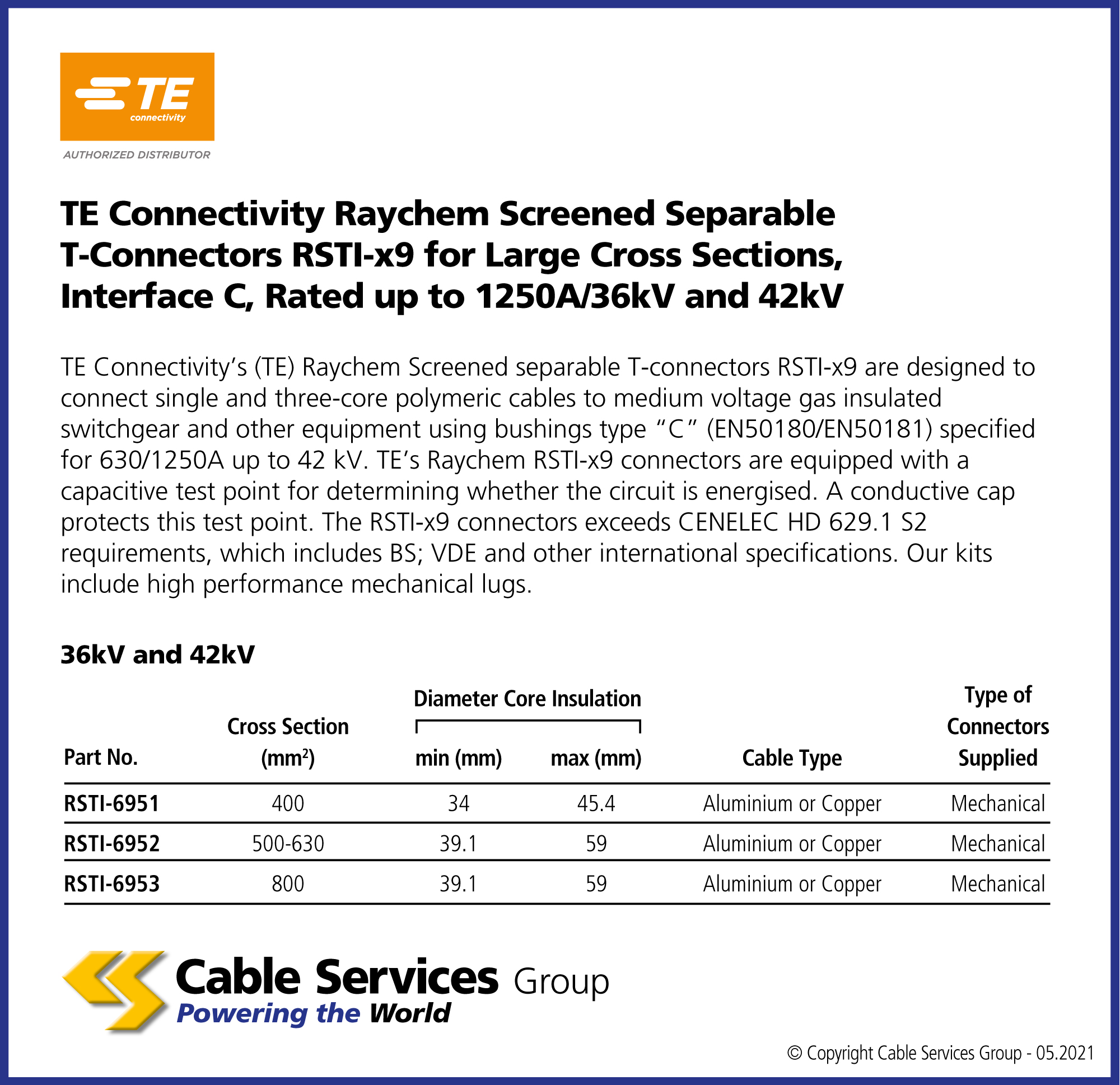

Selection Table

Data Sheets

Download Data Sheet

Reference Name
RSTI-6951 400mm2 cross section, Aluminium or Copper type
RSTI-6952 500-630mm2 cross section, Aluminium or Copper type
RSTI-6953 800mm2 cross section, Aluminium or Copper type
