Selection Table
TE Connectivity Raychem Screened Surge Arresters – Parallel Connection RSTI-CC-SA-10 10 kA and UC up to 41 Kv

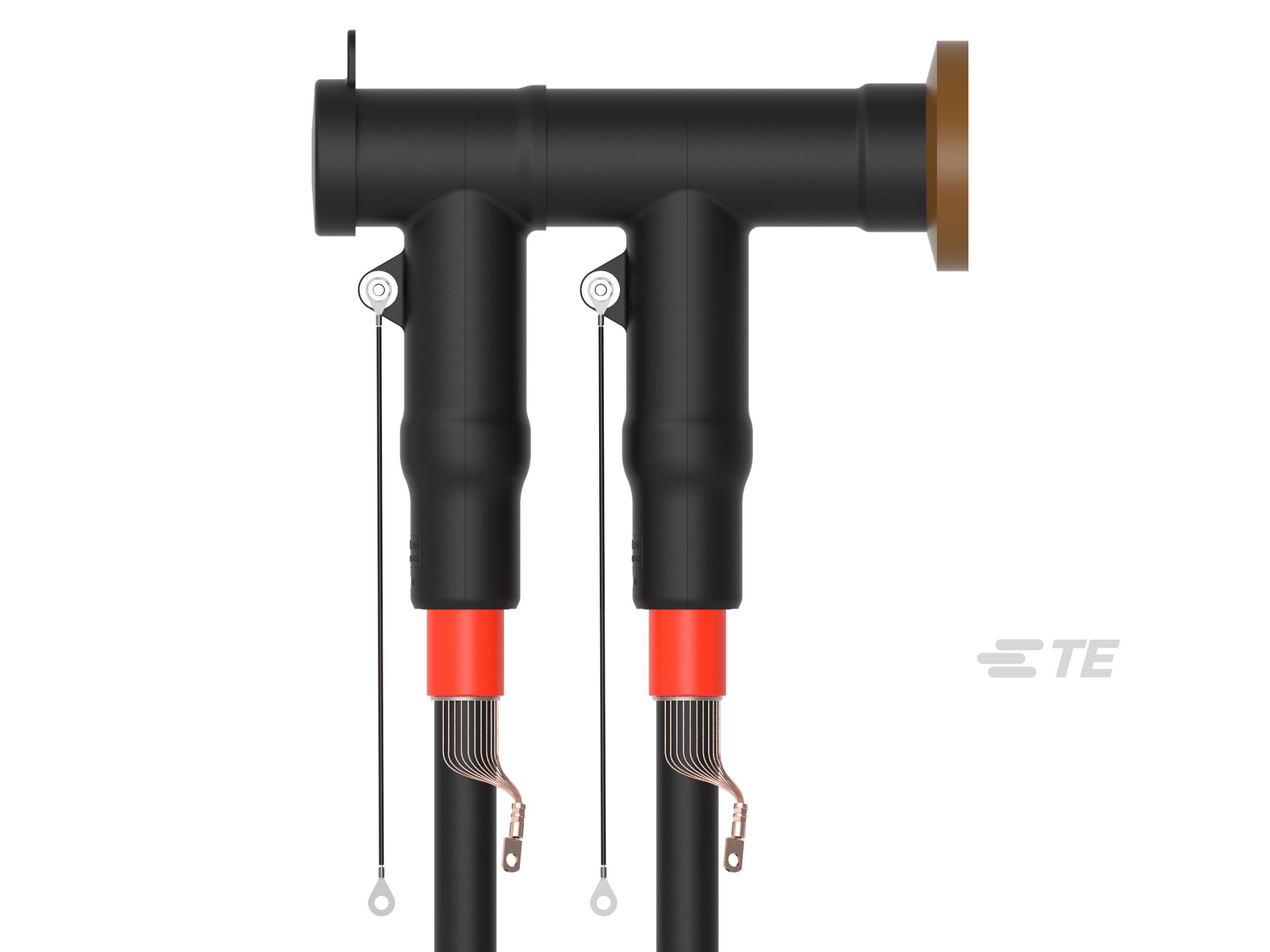

The screened gapless surge arrester are โTโ-shaped products. They are designed for direct connection onto outer cone bushings in accordance with EN50180 or EN50181 with interface type โCโ or for parallel connection mating to the rear entry of the RSTI base screened connector system designed for system voltage up to 41 kV. Complete kit including screened surge arresters, threaded pin and ground lead for three phases facilitates installation and storage.
Data Sheets
| Reference | Name | |
|---|---|---|
| RSTI-CC-68SA1210 | 12KV cross section | |
| RSTI-CC-68SA1810 | 18KV cross section | |
| RSTI-CC-68SA2410 | 24KV cross section | |
| RSTI-CC-68SA3010 | 30KV cross section | |
| RSTI-CC-68SA3610 | 36KV cross section | |
| RSTI-CC-68SA3910 | 39KV cross section | |
| RSTI-CC-68SA4110 | 41KV cross section |
