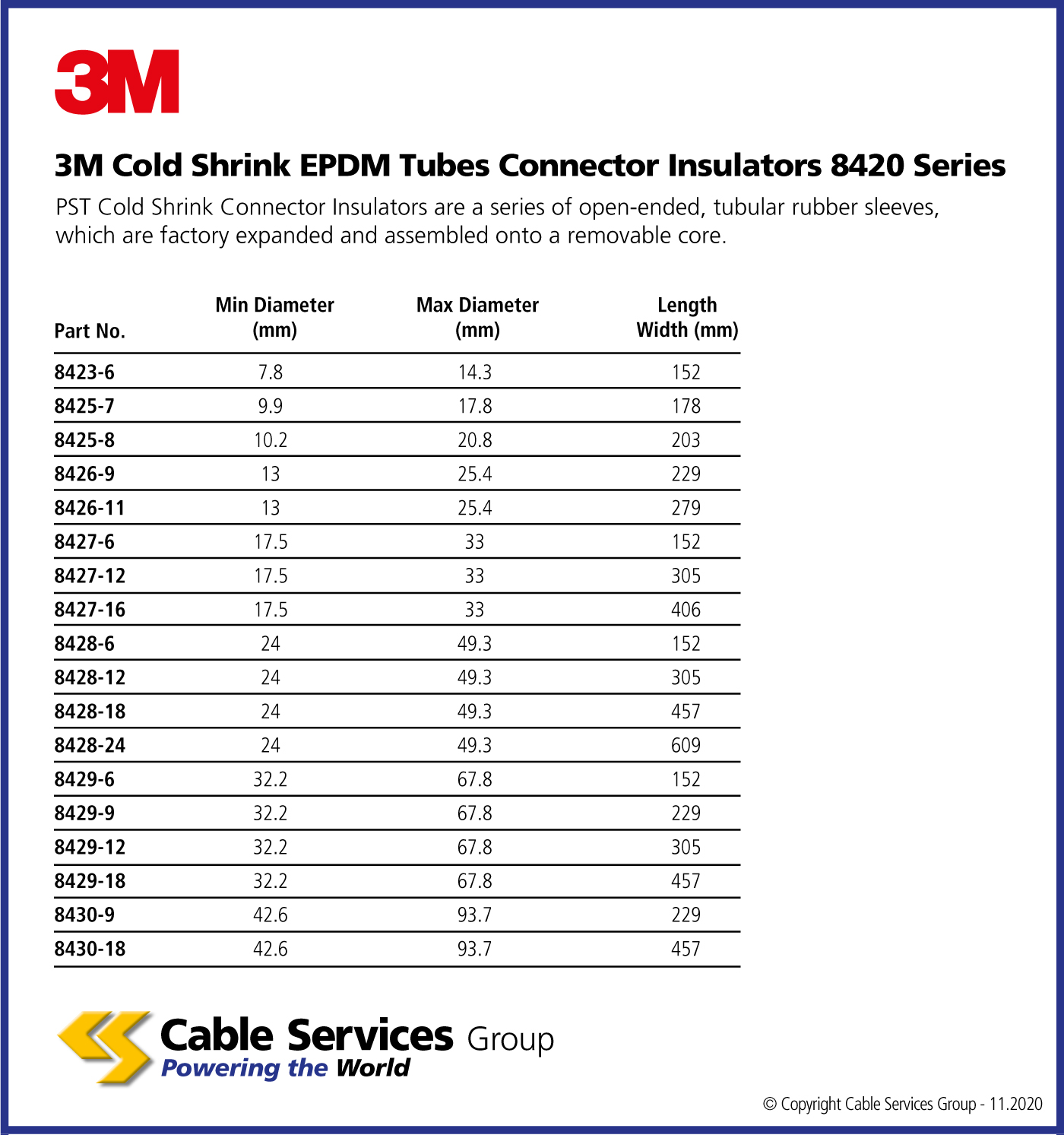

Selection Table
3M Cold Shrink EPDM Tubes Connector Insulators 8420 Series

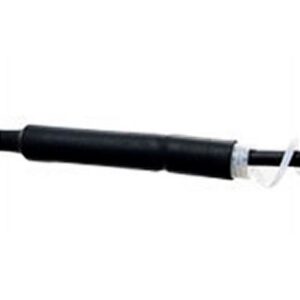

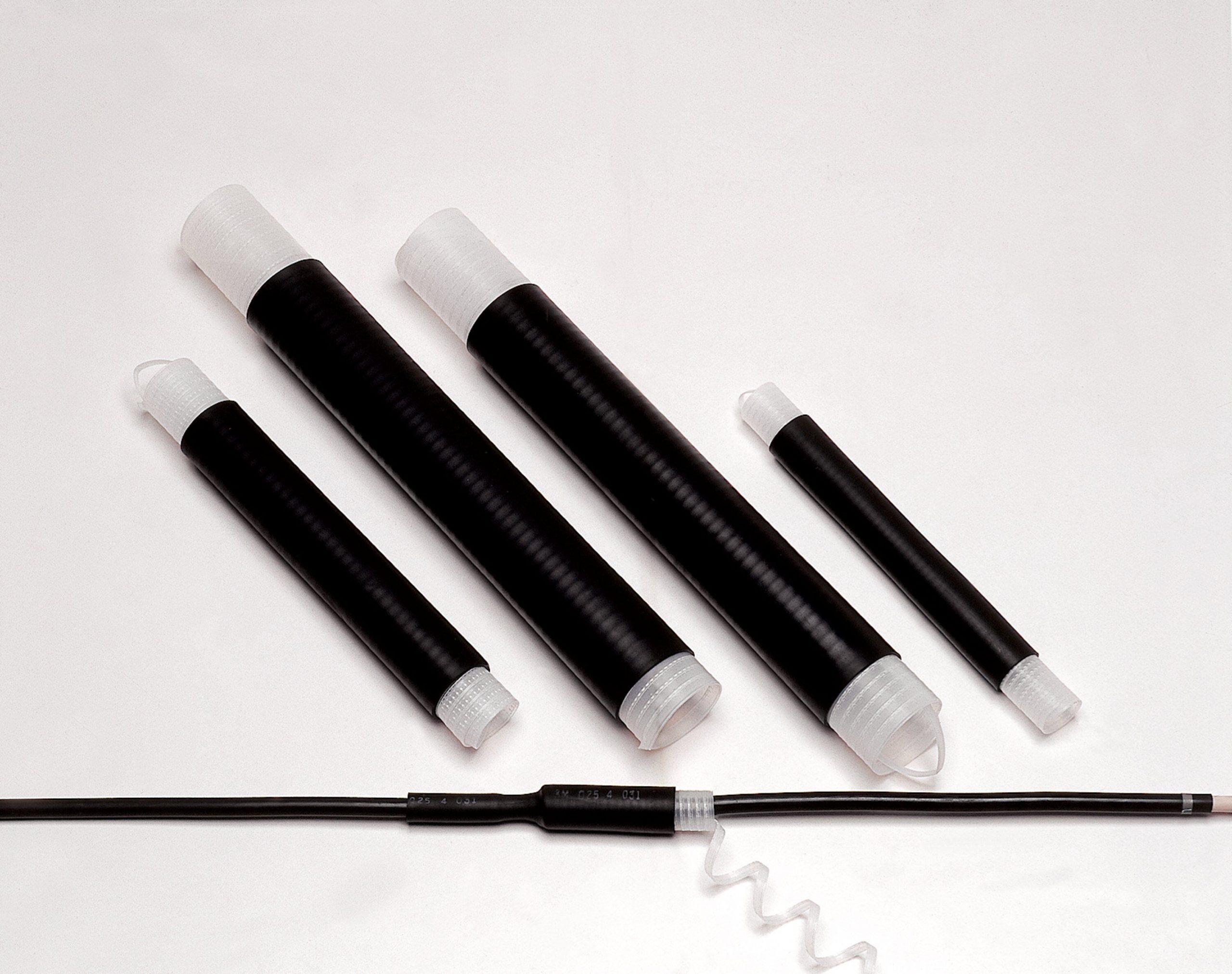

3M Brand PST Cold Shrink Connector Insulators are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre-stretched condition. The core is removed after the tube has been positioned for installation over an in line connection, terminal lug, etc., allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber, which contains no chlorides or sulphurs. Six diameter sizes will cover a range of 1000 volt cables, copper and aluminium conductors.
Data Sheets
| Reference | Name | |
|---|---|---|
| 8428-12 | 24mm range, 305mm length fixing type | |
| 8430-18 | 42.6mm range, 457mm length fixing type | |
| 8430-9 | 42.6mm range, 229mm length fixing type | |
| 8429-18 | 32.2mm range, 457mm length fixing type | |
| 8429-12 | 32.2mm range, 305mm length fixing type | |
| 8429-9 | 32.2mm range, 229mm length fixing type | |
| 8429-6 | 32.2mm range, 152mm length fixing type | |
| 8428-24 | 24mm range, 609mm length fixing type | |
| 8428-18 | 24mm range, 457mm length fixing type | |
| 8423-6 | 7.8mm range, 152mm length fixing type | |
| 8428-6 | 24mm range, 152mm length fixing type | |
| 8427-16 | 17.5mm range, 406mm length fixing type | |
| 8427-12 | 17.5mm range, 305mm length fixing type | |
| 8427-6 | 17.5mm range, 152mm length fixing type | |
| 8426-11 | 13mm range, 279mm length fixing type | |
| 8426-9 | 13mm range, 229mm length fixing type | |
| 8425-8 | 10.2mm range, 203mm length fixing type | |
| 8425-7 | 9.9mm range, 178mm length fixing type |
