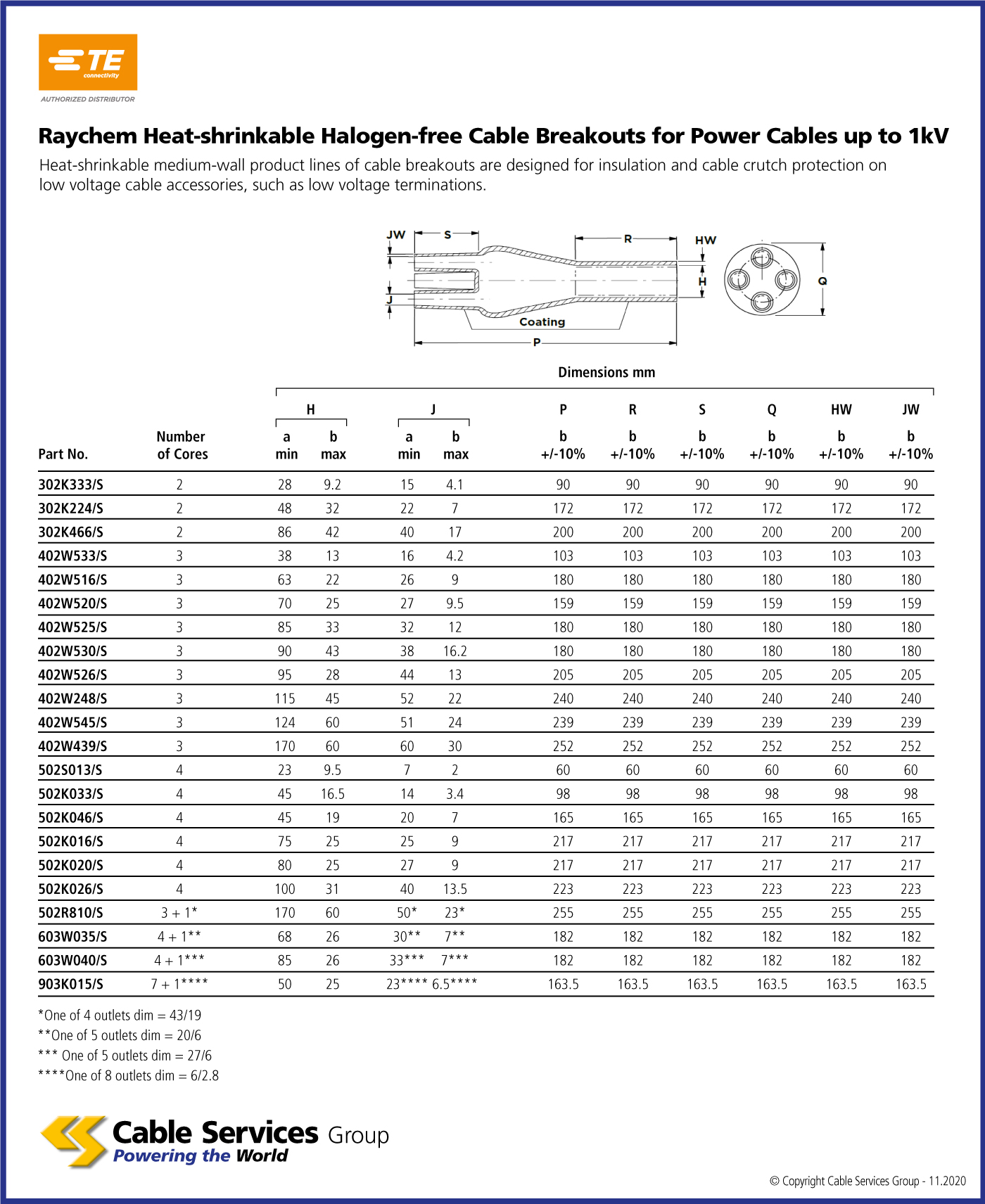

Selection Table
TE Connectivity Heat-shrinkable Halogen-free Cable Breakouts for Power Cables up to 1kV
TE Connectivity Raychem heat-shrinkable medium-wall product lines of cable breakouts are designed for insulation and cable crutch protection on low voltage cable accessories, such as low voltage terminations. They are also used in sealing against moisture and mechanical protection in low voltage splices especially in transition joints.
Data Sheets
| Reference | Name | |
|---|---|---|
| 502S013 | 23 - 9.5mm range | |
| 302K333 | 28 - 9.2mm range | |
| 402W533 | 38 - 13mm range | |
| 502K033 | 45 - 16.5mm range | |
| 502K046 | 45 - 19mm range | |
| 302K224 | 48 - 32mm range | |
| 903K015 | 50 - 25mm range | |
| 402W516 | 63 - 22mm range | |
| 603W035 | 68 - 26mm range | |
| 402W520 | 70 - 25mm range | |
| 502K016 | 75 - 25mm range | |
| 502K020 | 80 - 25mm range | |
| 603W040 | 85 - 26mm range | |
| 402W525 | 85 - 33mm range | |
| 302K466 | 86 - 42mm range | |
| 402W530 | 90 - 43mm range | |
| 402W526 | 95 - 28mm range | |
| 502K026 | 100 - 31mm range | |
| 402W248 | 115 - 45mm range | |
| 402W545 | 124 - 60mm range | |
| 402W439 | 170 - 60mm range | |

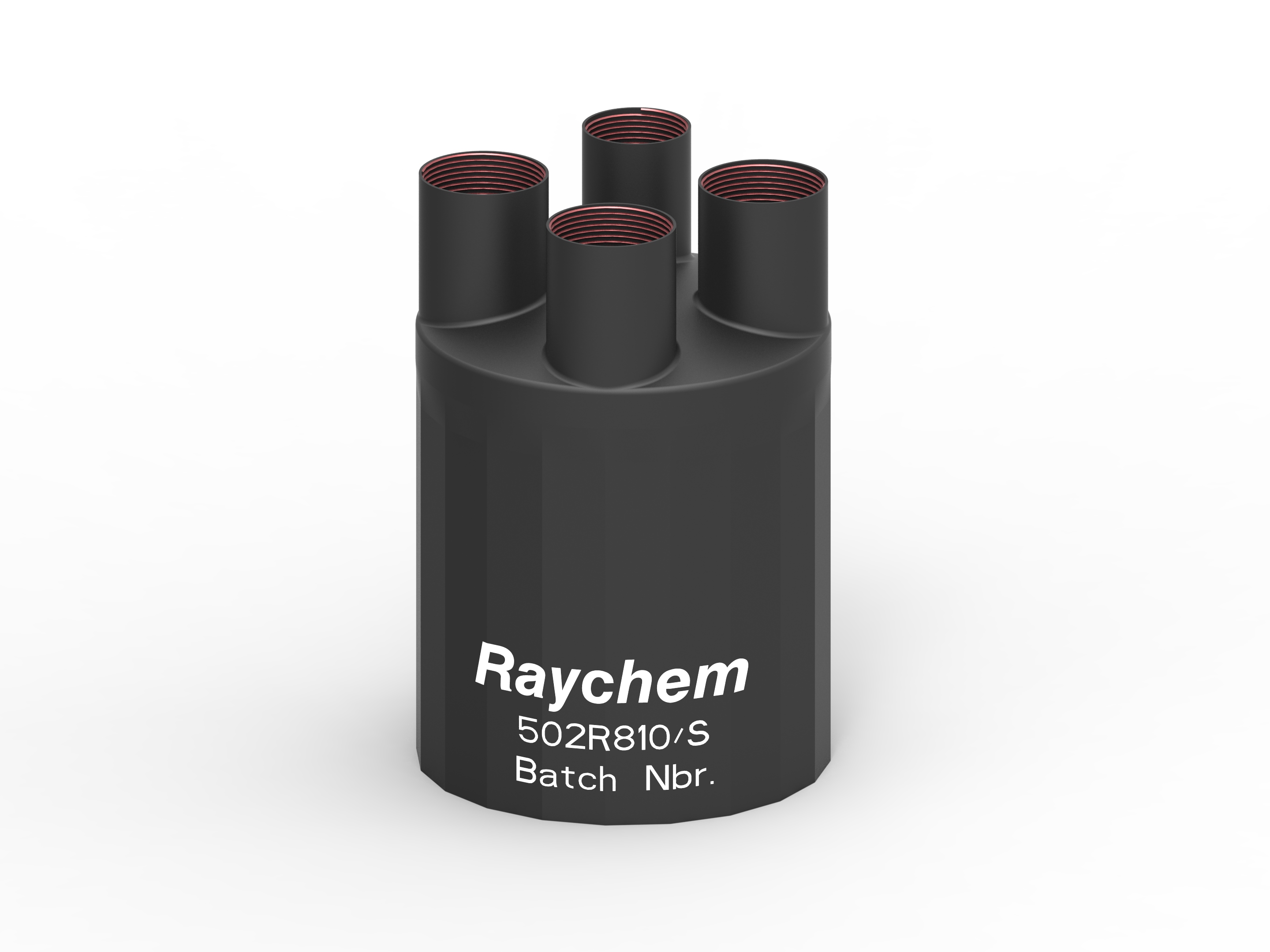

| 502R810 | 170 - 60mm range |
