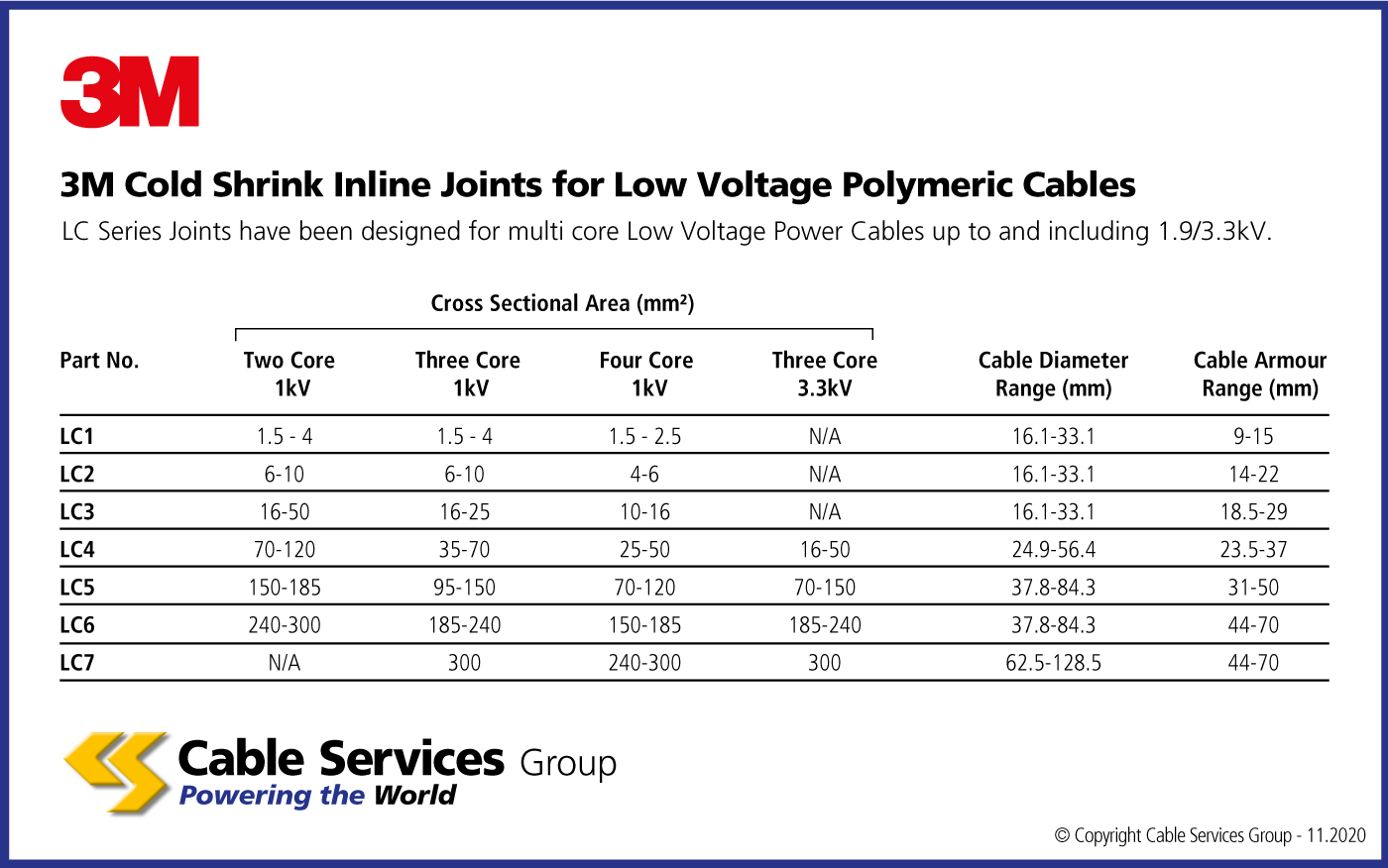

Selection Table
3M Cold Shrink Inline Joints for Low Voltage Polymeric Cables

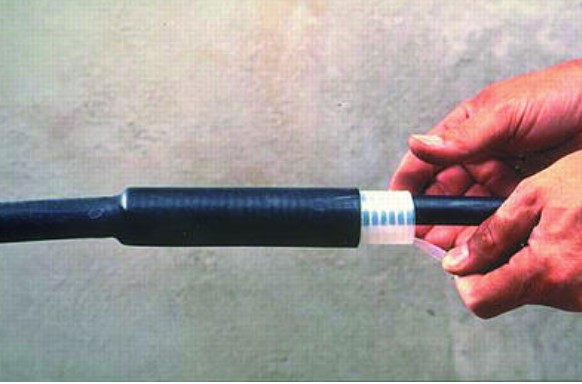

3M™ Cold Shrink LC Series Joints have been designed for multi core Low Voltage Power – Cables up to and including 1.9/3.3kV. Also suitable for some multi pair cables – Designed for flexible or trailing cables, Cable Tray applications, and Indoor applications – Suitable for Cable Type XLPE/PVC Insulated, Steel Wire Armoured, PVC Sheathed Cables,with or without a lead sheath – Additional mechanical protection may be required for direct burial.
Data Sheets
| Reference | Name | |
|---|---|---|
| LC1 | 1size range | |
| LC2 | 2size range | |
| LC3 | 3size range | |
| LC4 | 4size range | |
| LC5 | 5size range | |
| LC6 | 6size range | |
| LC7 | 7size range |
