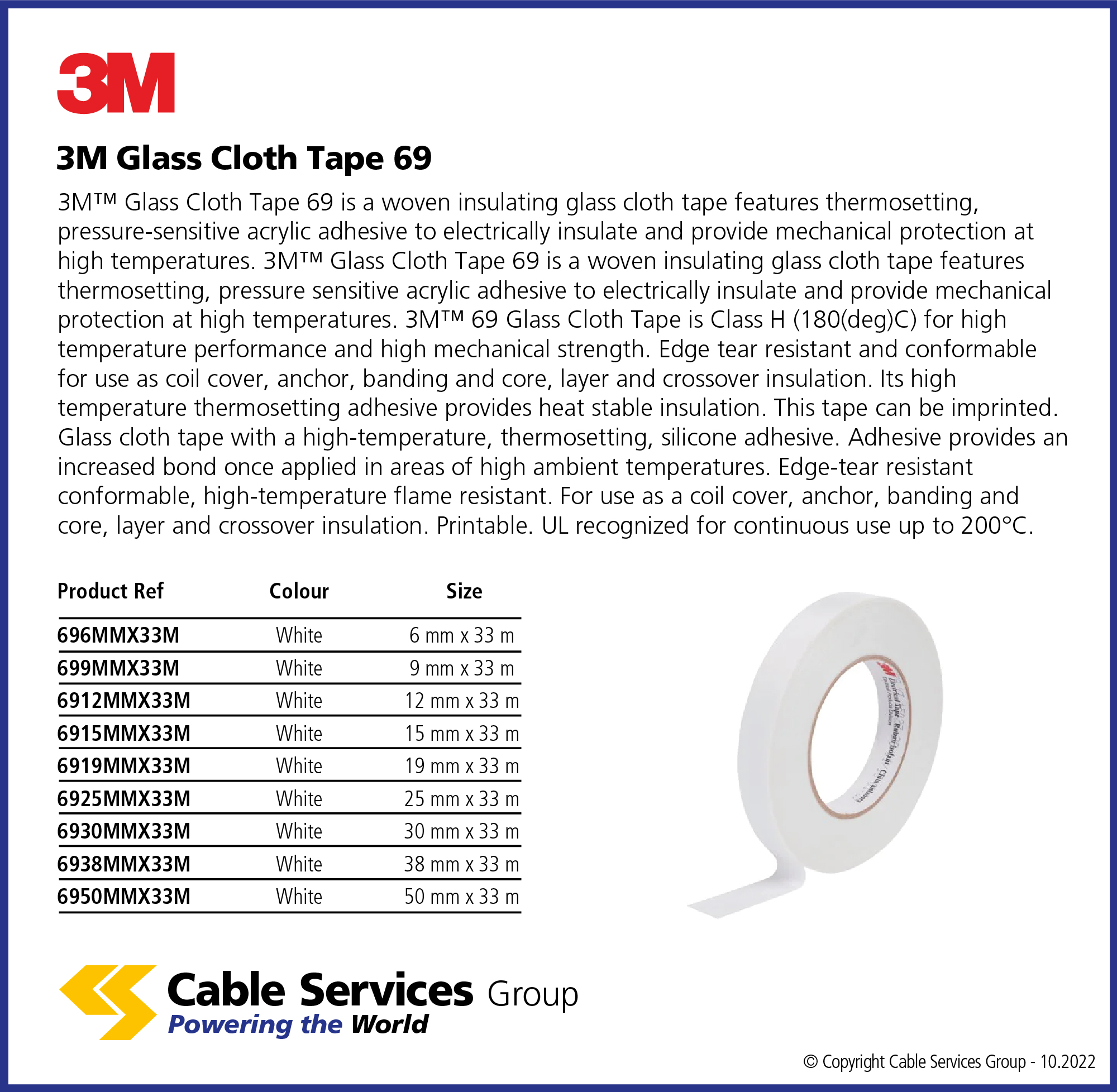

3M Glass Cloth Tape 69

3M™ Glass Cloth Tape 69 is a woven insulating glass cloth tape featuring thermosetting, pressure-sensitive acrylic adhesive to electrically insulate and provide mechanical protection at high temperatures. 3M™ Glass Cloth Tape 69 is a woven insulating glass cloth tape features thermosetting, pressure sensitive acrylic adhesive to electrically insulate and provide mechanical protection at high temperatures. 3M™ 69 Glass Cloth Tape is Class H (180(deg)C) for high temperature performance and high mechanical strength. Edge tear resistant and conformable for use as coil cover, anchor, banding and core, layer and crossover insulation. Its high temperature thermosetting adhesive provides heat stable insulation. This tape can be imprinted. Glass cloth tape with a high-temperature, thermosetting, silicone adhesive. Adhesive provides an increased bond once applied in areas of high ambient temperatures. Edge-tear resistant conformable, high-temperature flame resistant. For use as a coil cover, anchor, banding and core, layer and crossover insulation. Printable. UL recognized for continuous use up to 200°C.

Category:

Selection Table

Data Sheets

Download Data Sheet

ReferenceName
696MMX33M6 mm x 33M size, White colour
699MMX33M9 mm x 33M size, White colour
6912MMX33M12 mm x 33M size, White colour
6915MMX33M15 mm x 33M size, White colour
6919MMX33M19 mm x 33M size, White colour
6925MMX33M25 mm x 33M size, White colour
6930MMX33M30 mm x 33M size, White colour
6938MMX33M38 mm x 33M size, White colour
6950MMX33M50 mm x 33M size, White colour
