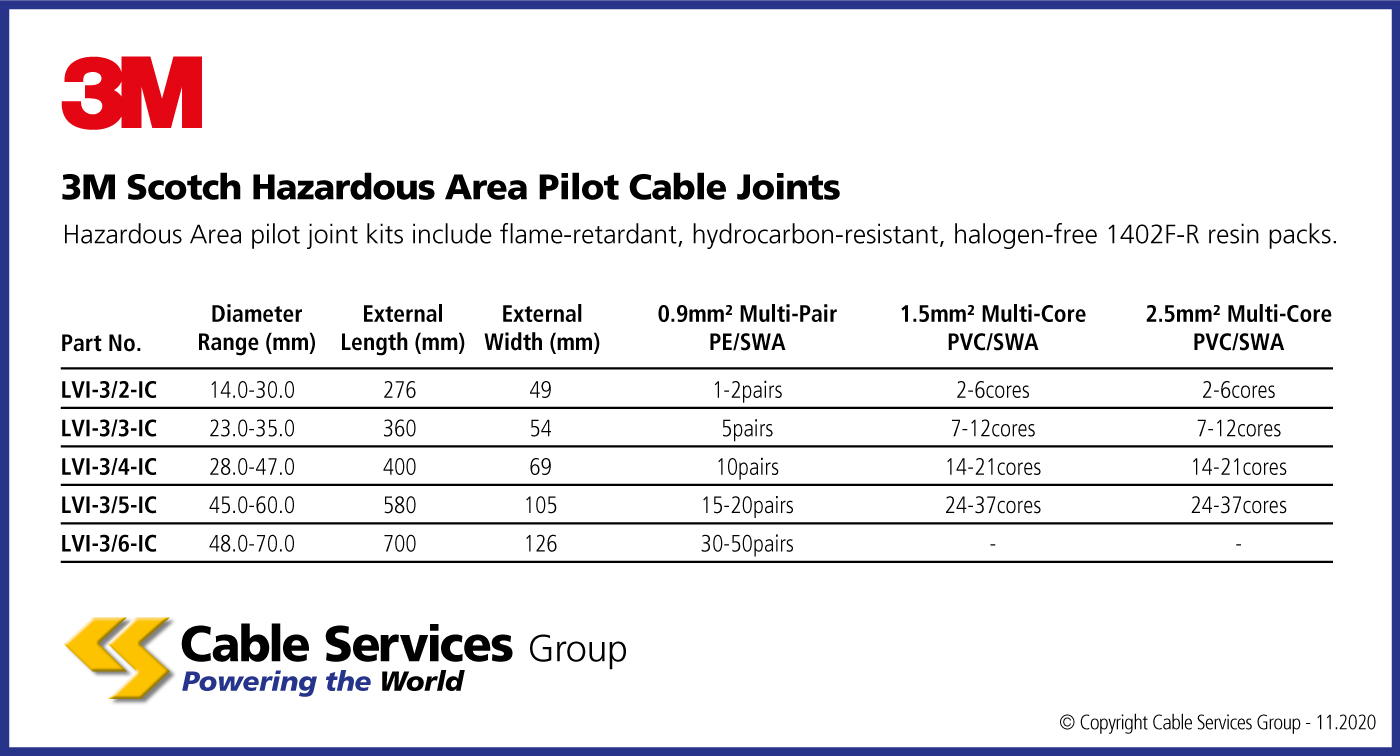

Selection Table
3M Scotch Hazardous Area Pilot Cable Joints

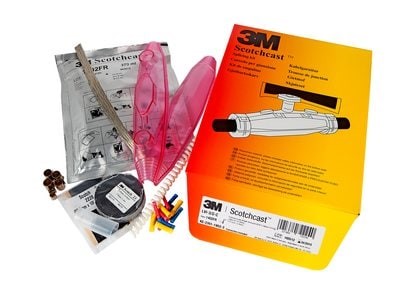

3M™ Scotchcast™ Hazardous Area pilot joint kits include flame-retardant, hydrocarbon-resistant,halogen-free 1402F-R resin packs. The resin joints are designed for use with both multi-pair or multi-core SWA armoured control and instrumentation cables. This product features a unique hinged mould body and totally enclosed resin mixing system, suitable for use in areas of high soil contamination and ATEX-rated Hazardous Areas.
Data Sheets
| Reference | Name | |
|---|---|---|
| LVI-3/2-IC | 14.0-30.0mm range | |
| LVI-3/3-IC | 23.0-35.0mm range | |
| LVI-3/4-IC | 28.0-47.0mm range | |
| LVI-3/5-IC | 45.0-60.0mm range | |
| LVI-3/6-IC | 48.0-70.0mm range |
