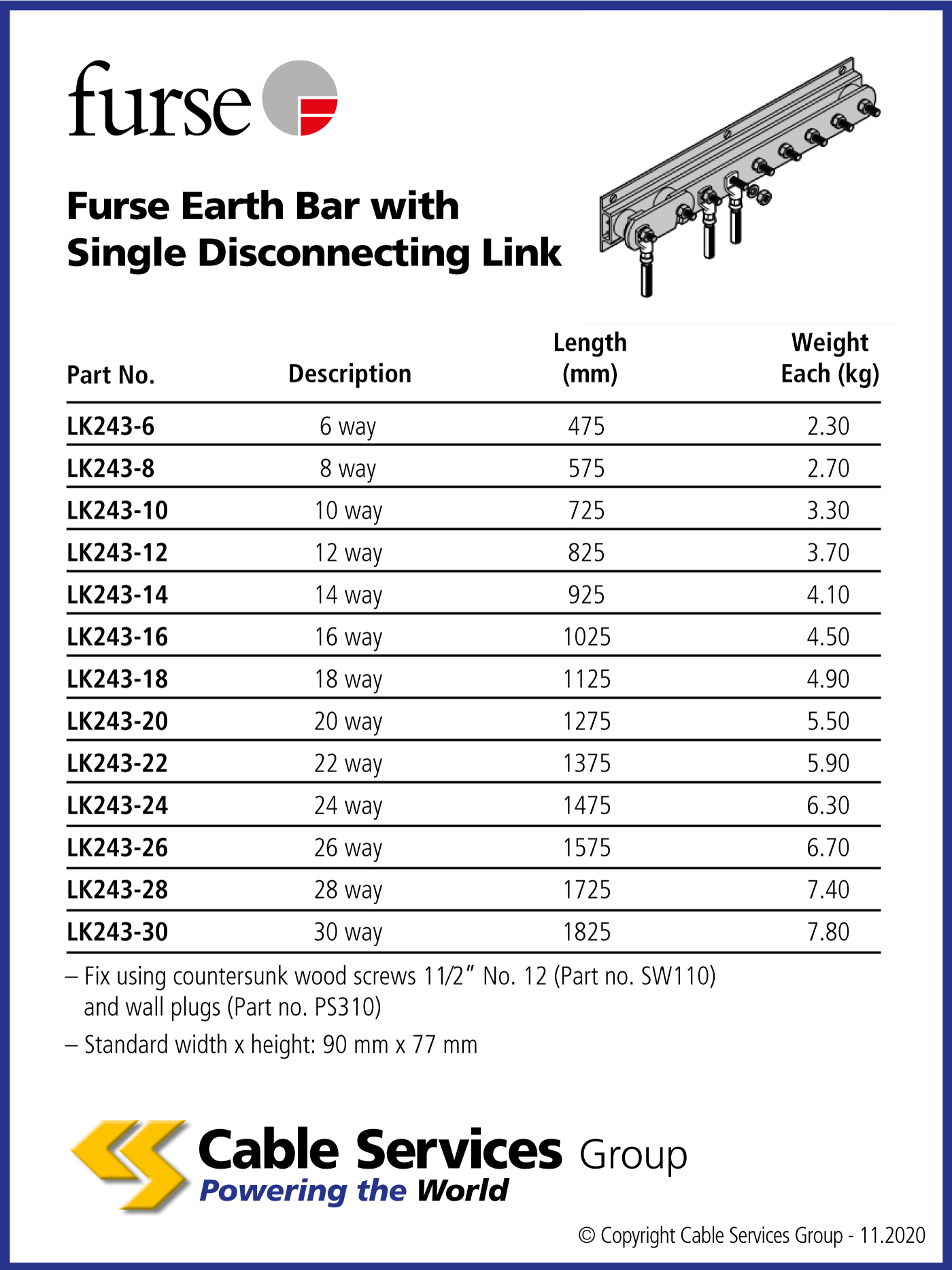

Selection Table

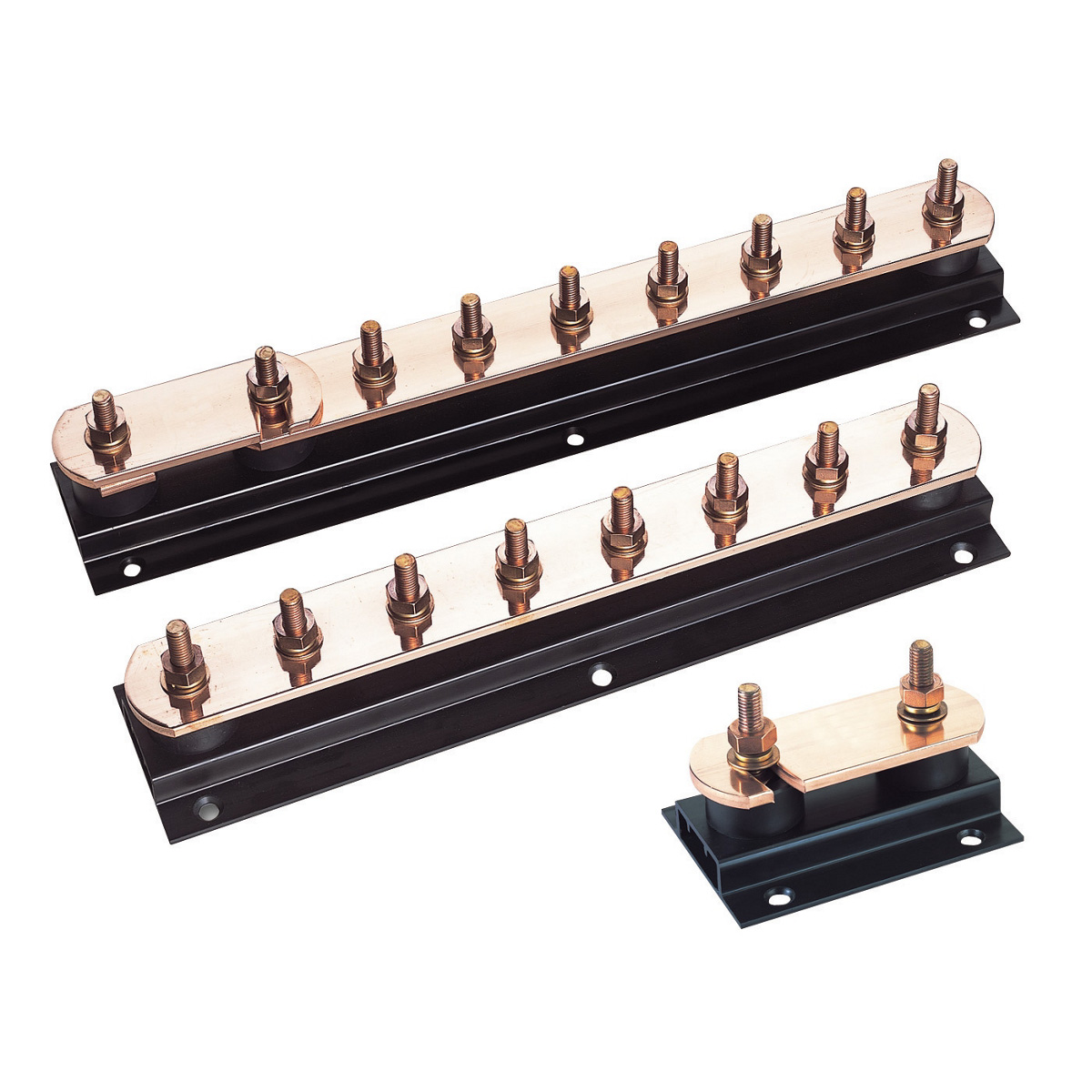

Furse Earth Bar with Single Disconnecting Link
Furse earth bars have a plastic channel base that is entirely corrosion proof, made from high impact uPVC unlike the traditional galvanized steel channel. The use of a modern polymer channel has also reduced the weight of these earth bars, making them lighter and easier to handle. Available as bare copper or tinned copper hard drawn bar. Pre-drilled fixing holes for ease of installation. Swan-Neck accessory available to facilitate the main earth bar connection. Standard height 90 mm, standard depth 77 mm. Tightening torque 20 Nm. Fix using countersunk wood screws 1½” No. 12 (Part no. SW110) and wall plugs (Part no. PS310).
Data Sheets
| Reference | Name | |
|---|---|---|
| LK243 | 475mm size, 6 way fixing type | |
| LK243-8 | 575mm size, 8 way fixing type | |
| LK243-10 | 725mm size, 10 way fixing type | |
| LK243-12 | 825mm size, 12 way fixing type | |
| LK243-14 | 925mm size, 14 way fixing type | |
| LK243-16 | 1025mm size, 16 way fixing type | |
| LK243-18 | 1125mm size, 18 way fixing type | |
| LK243-20 | 1275mm size, 20 way fixing type | |
| LK243-22 | 1375mm size, 22 way fixing type | |
| LK243-24 | 1475mm size, 24 way fixing type | |
| LK243-26 | 1575mm size, 26 way fixing type | |
| LK243-28 | 1725mm size, 28 way fixing type | |
| LK243-30 | 1825mm size, 30 way fixing type |
