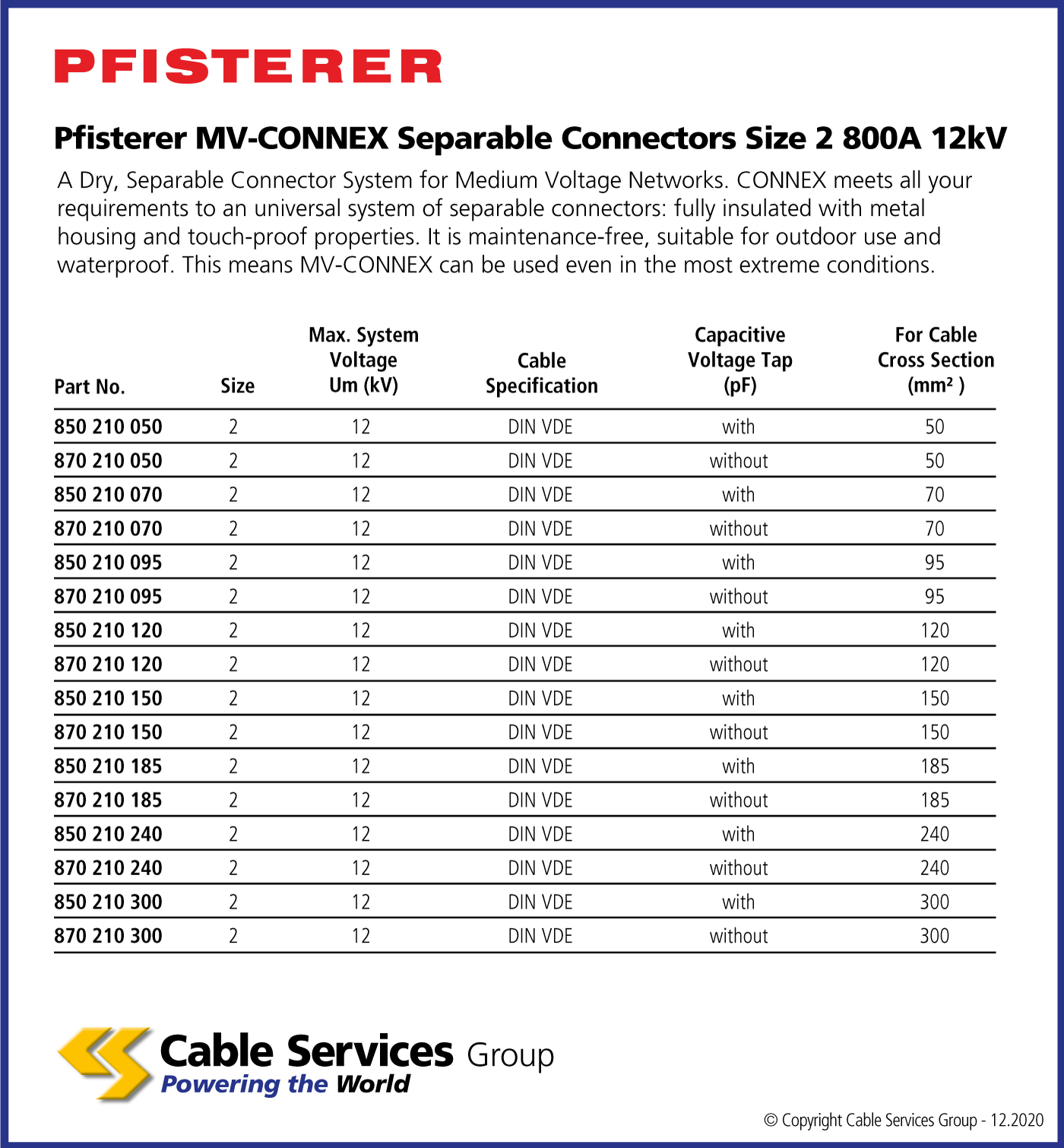

Selection Table

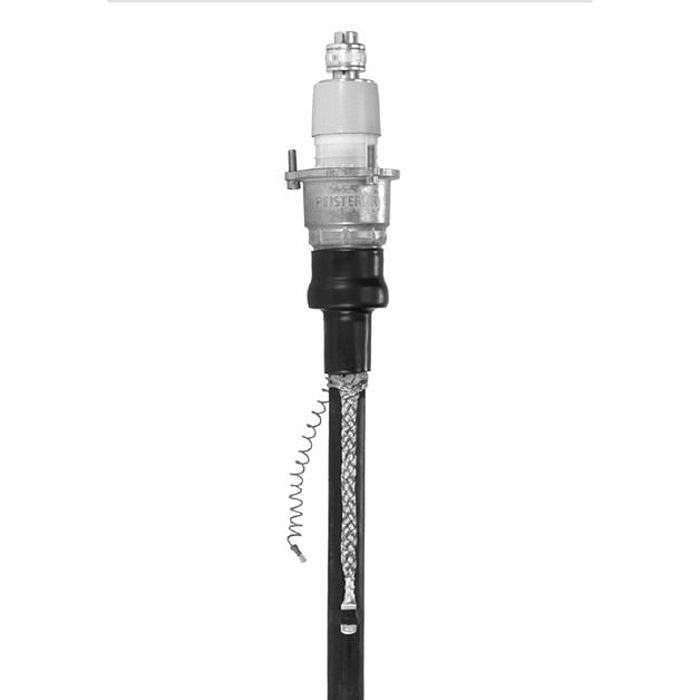

Pfisterer MV-CONNEX Separable Connectors Size 2 800A 12kV
A Dry, Separable Connector System for Medium Voltage Networks. CONNEX meets all your requirements to an universal system of separable connectors: fully insulated with metal housing and touch-proof properties. It is maintenance-free, suitable for outdoor use and waterproof. This means MV-CONNEX can be used even in the most extreme conditions.
Data Sheets
| Reference | Name | |
|---|---|---|
| 850 210 050 | 50mm2 cross section, With type | |
| 870 210 050 | 50mm2 cross section, Without type | |
| 850 210 070 | 70mm2 cross section, With type | |
| 870 210 070 | 70mm2 cross section, Without type | |
| 850 210 095 | 95mm2 cross section, With type | |
| 870 210 095 | 95mm2 cross section, Without type | |
| 850 210 120 | 120mm2 cross section, With type | |
| 870 210 120 | 120mm2 cross section, Without type | |
| 850 210 150 | 150mm2 cross section, With type | |
| 870 210 150 | 150mm2 cross section, Without type | |
| 850 210 185 | 185mm2 cross section, With type | |
| 870 210 185 | 185mm2 cross section, Without type | |
| 850 210 240 | 240mm2 cross section, With type | |
| 870 210 240 | 240mm2 cross section, Without type | |
| 850 210 300 | 300mm2 cross section, With type | |
| 870 210 300 | 300mm2 cross section, Without type |
