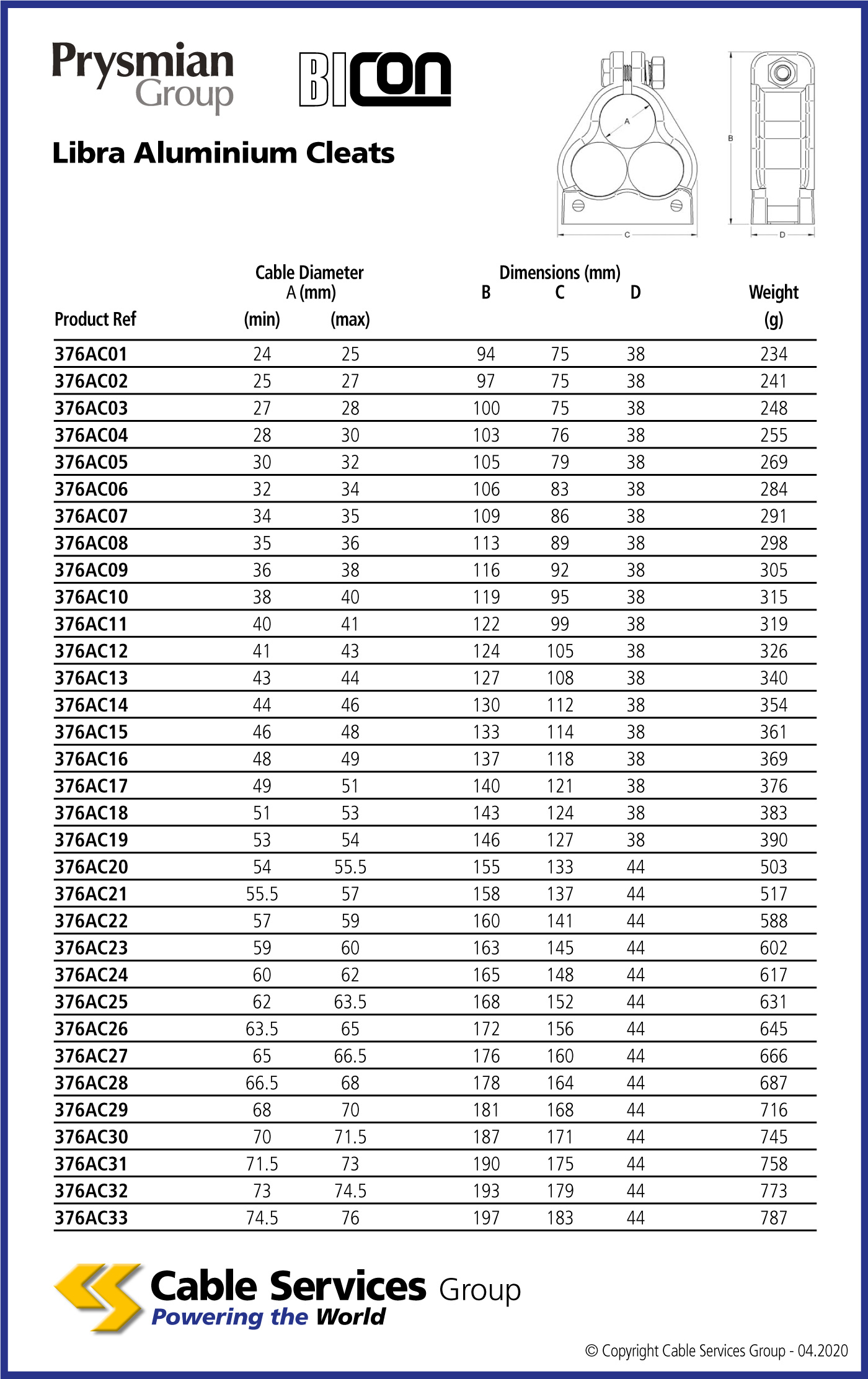

Selection Table
Prysmian Libra Aluminium Cleats

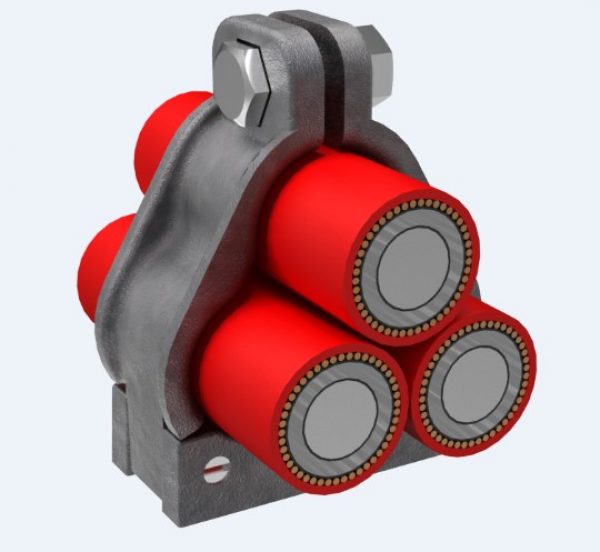

The Libra Cleat is an aluminium cleat suitable for single core cables laid in trefoil.
See our trefoil cable cleat sizing guide to choose the right Libra size for your cable diameter.
Data Sheets
| Reference | Name | |
|---|---|---|
| 376AC01 | 24 - 25mm cable sizing | |
| 376AC02 | 25 - 27mm cable sizing | |
| 376AC03 | 27 - 28mm cable sizing | |
| 376AC04 | 28 - 30mm cable sizing | |
| 376AC05 | 30 - 32mm cable sizing | |
| 376AC06 | 32 - 34mm cable sizing | |
| 376AC07 | 34 - 35mm cable sizing | |
| 376AC08 | 35 - 36mm cable sizing | |
| 376AC09 | 36 - 38mm cable sizing | |
| 376AC10 | 38 - 40mm cable sizing | |
| 376AC11 | 40 - 41mm cable sizing | |
| 376AC12 | 41 - 43mm cable sizing | |
| 376AC13 | 43 - 44mm cable sizing | |
| 376AC14 | 44 - 46mm cable sizing | |
| 376AC15 | 46 - 48mm cable sizing | |
| 376AC16 | 48 - 49mm cable sizing | |
| 376AC17 | 49 - 51mm cable sizing | |
| 376AC18 | 51 - 53mm cable sizing | |
| 376AC19 | 53 - 54mm cable sizing | |
| 376AC20 | 54 - 55.5mm cable sizing | |
| 376AC21 | 55.5 - 57mm cable sizing | |
| 376AC22 | 57 - 59mm cable sizing | |
| 376AC23 | 59 - 60mm cable sizing | |
| 376AC24 | 60 - 62mm cable sizing | |
| 376AC25 | 62 - 63.5mm cable sizing | |
| 376AC26 | 63.5 - 65mm cable sizing | |
| 376AC27 | 65 - 66.5mm cable sizing | |
| 376AC28 | 66.5 - 68mm cable sizing | |
| 376AC29 | 68 - 70mm cable sizing | |
| 376AC30 | 70 - 71.5mm cable sizing | |
| 376AC31 | 71.5 - 73mm cable sizing | |
| 376AC32 | 73 - 74.5mm cable sizing | |
| 376AC33 | 74.5 - 76mm cable sizing |
