TE Connectivity 25kV Busbar Insulation Tubing – BPTM

TE Connectivity’s (TE) Raychem BPTM medium-wall, heat shrink tubing provides insulation enhancement and protection against flashover and accidentally induced discharge. Particularly useful in confined spaces, the BPTM tubing can be used on both circular and rectangular copper or aluminium busbars. On application of heat, the tubing shrinks snugly over the busbar profile, ensuring that the required minimum wall thickness is obtained. TE’s Raychem BPTM tubing can be installed easily during large scale production using an oven or in the field using a gas torch or hot air. The BPTM tubing is manufactured from a halogen-free based polymer which has excellent performance in high voltage environments and greatly reduces the noxious and corrosive effects in fire situations. Use of the BPTM tubing allows equipment designers the freedom to reduce air spacing between busbars, such as in the manufacture of switchgear cabinets where space is at a premium. The BPTM tubing provides flashover protection up to 25 kV.


Selection Table

Data Sheets

Download Data Sheet

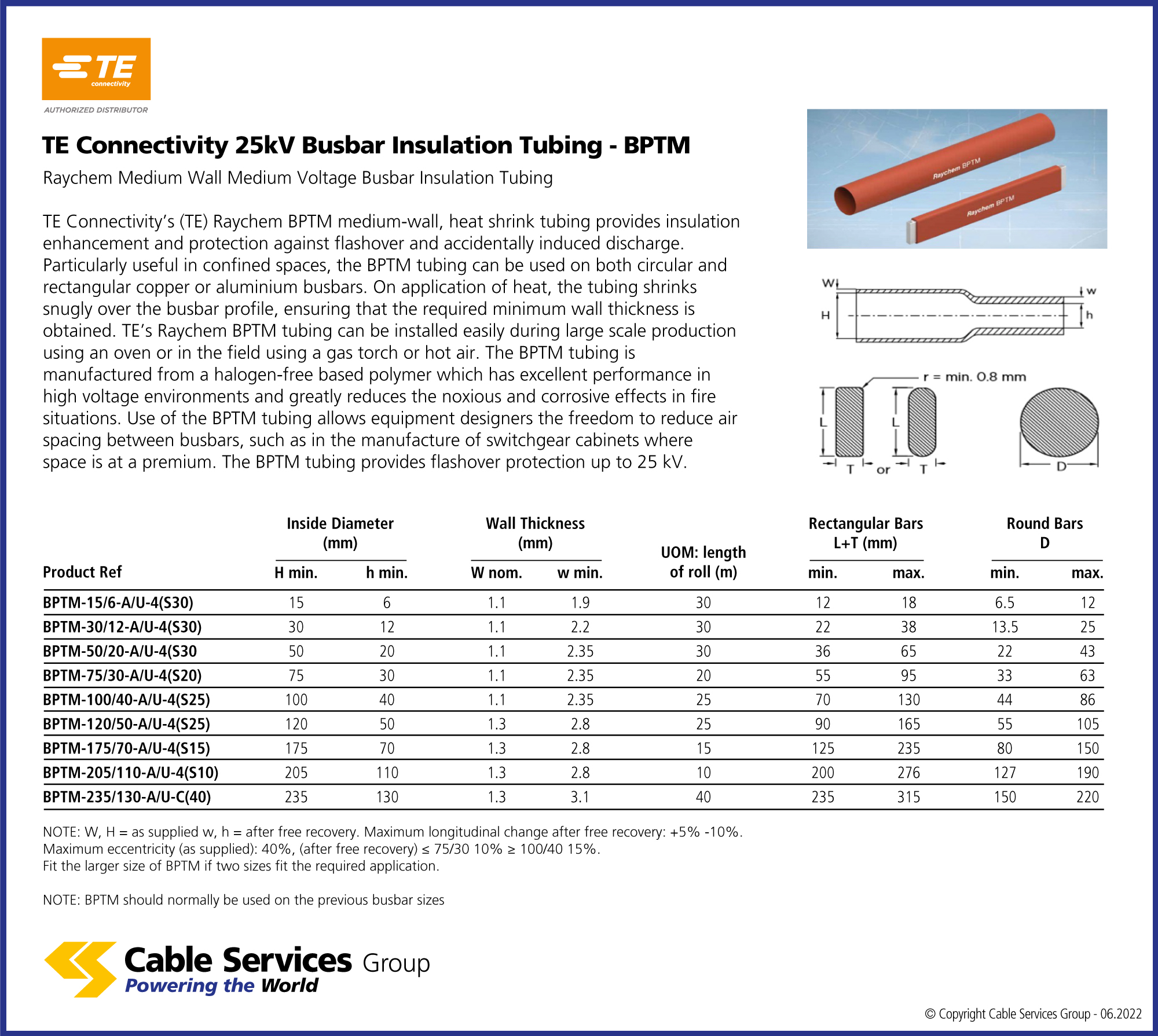

Reference Name
BPTM-15/6-A/U-4(S30) 15mm x 6mminside diameter size
BPTM-30/12-A/U-4(S30) 30mm x 12mminside diameter size
BPTM-50/20-A/U-4(S30 50mm x 20mminside diameter size
BPTM-75/30-A/U-4(S20) 75mm x 30mminside diameter size
BPTM-100/40-A/U-4(S25) 100mm x 40mminside diameter size
BPTM-120/50-A/U-4(S25) 120mm x 50mminside diameter size
BPTM-175/70-A/U-4(S15) 175mm x 70mminside diameter size
BPTM-205/110-A/U-4(S10) 205mm x 110mminside diameter size
BPTM-235/130-A/U-C(40) 235mm x 130mminside diameter size
