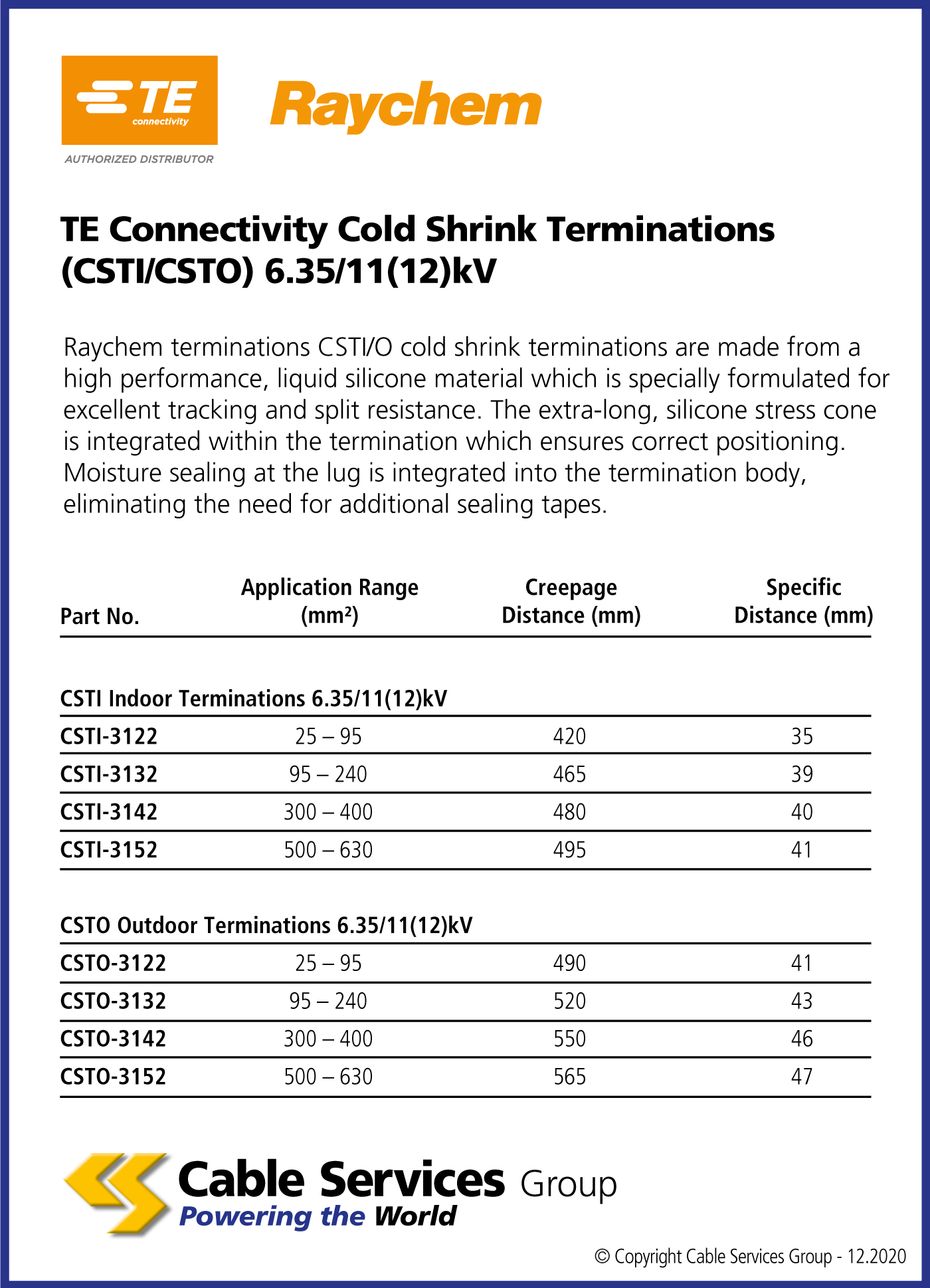

Selection Table
TE Connectivity Cold Shrink Terminations (CSTI/CSTO) 6.35/11(12)kV

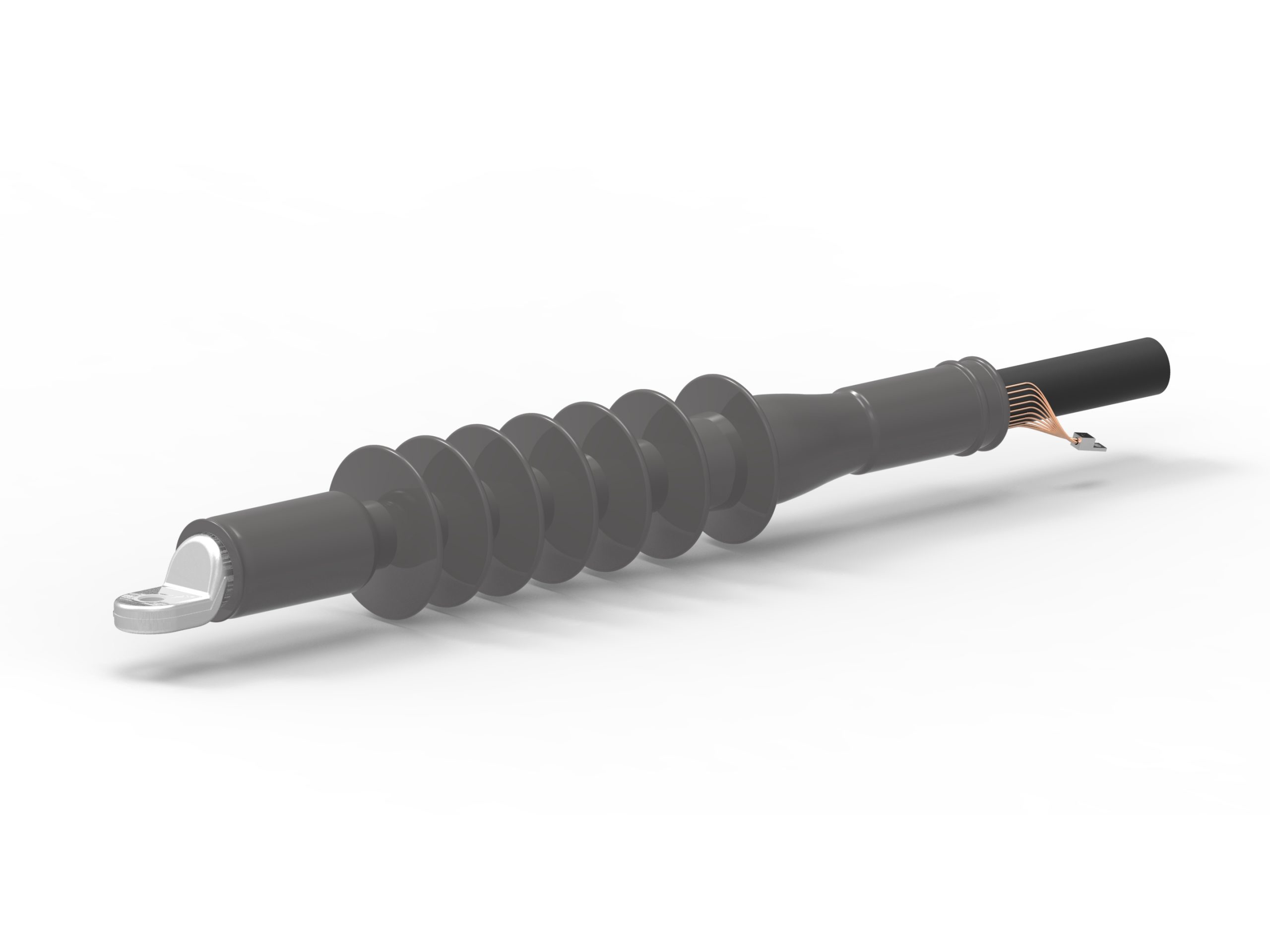

Raychem terminations CSTI/O cold shrink terminations are made from a high performance, liquid silicone material which is specially formulated for excellent tracking and split resistance. The extra-long, silicone stress cone is integrated within the termination which ensures correct positioning. Moisture sealing at the lug is integrated into the termination body, eliminating the need for additional sealing tapes.
Data Sheets
| Reference | Name | |
|---|---|---|
| CSTI-3122 | 25 – 95mm2 conductor size, Indoor type | |
| CSTI-3132 | 95 – 240mm2 conductor size, Indoor type | |
| CSTI-3142 | 300 – 400mm2 conductor size, Indoor type | |
| CSTI-3152 | , Indoor type | |
| CSTO-3122 | 25 – 95mm2 conductor size, Outdoor type | |
| CSTO-3132 | 95 – 240mm2 conductor size, Outdoor type | |
| CSTO-3142 | 300 – 400mm2 conductor size, Outdoor type | |
| CSTO-3152 | , Outdoor type |
