TE Connectivity Raychem Medium Voltage Heat-shrink Zinc Oxide Stress Control Terminations up to 17.5 kV

TE Connectivity Raychem Medium Voltage Heat-shrink Zinc Oxide Stress Control Terminations up to 17.5 kV

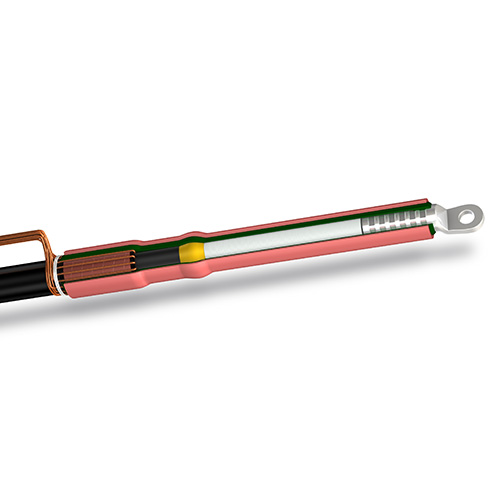

TE Connectivity’s (TE) Raychem IXSU-F/OXSU-F has a recently formulated electrical stress control compound that is based on extensive experience with Raychem ceramic semiconductor technology. The ZnO-based stress control system is integrated in heat-shrinkable insulating tubing. This stress control system fills any irregularities, bonds to the insulation and provides superb electrical performance.

Categories: ,

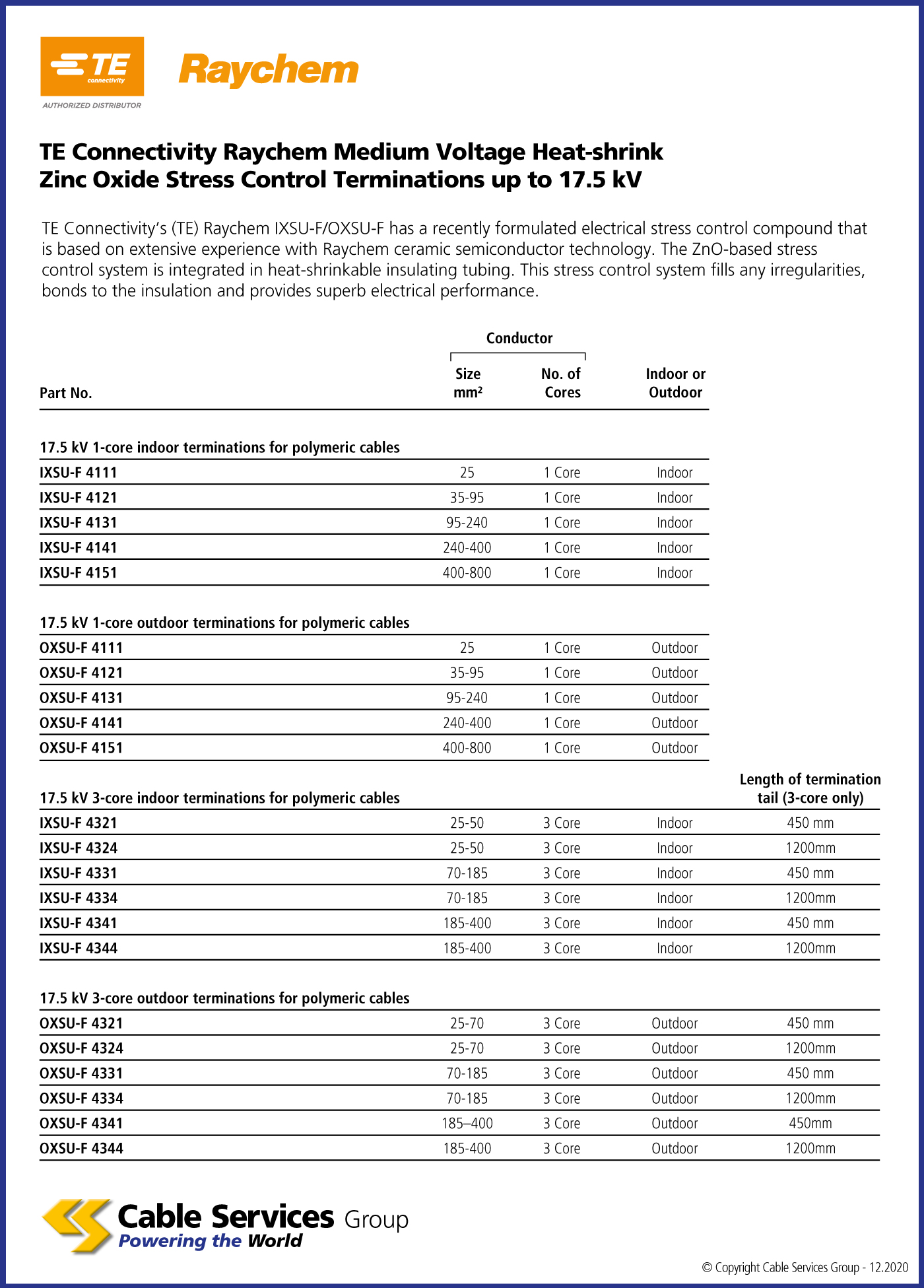

Selection Table

Data Sheets

Download Data Sheet

Reference Name
IXSU-F4111 25mm conductor size, 1core - Indoor type
IXSU-F4121 35-95mm conductor size, 1core - Indoor type
IXSU-F4131 95-240mm conductor size, 1core - Indoor type
IXSU-F4141 240-400mm conductor size, 1core - Indoor type
IXSU-F4151 400-800mm conductor size, 1core - Indoor type
OXSU-F4111 25mm conductor size, 1core - Outdoor type
OXSU-F4121 35-95mm conductor size, 1core - Outdoor type
OXSU-F4131 95-240mm conductor size, 1core - Outdoor type
OXSU-F4141 240-400mm conductor size, 1core - Outdoor type
OXSU-F4151 400-800mm conductor size, 1core - Outdoor type
IXSU-F 4321 25-50mm conductor size, 3core - Indoor type
IXSU-F 4324 25-50mm conductor size, 3core - Indoor type
IXSU-F 4331 70-185mm conductor size, 3core - Indoor type
IXSU-F 4334 70-185mm conductor size, 3core - Indoor type
IXSU-F 4341 185-400mm conductor size, 3core - Indoor type
IXSU-F 4344 185-400mm conductor size, 3core - Indoor type
OXSU-F 4321 25-70mm conductor size, 3core - Outdoor type
OXSU-F 4324 25-70mm conductor size, 3core - Outdoor type
OXSU-F 4331 70-185mm conductor size, 3core - Outdoor type
OXSU-F 4334 70-185mm conductor size, 3core - Outdoor type
OXSU-F 4341 , 3core - Outdoor type
OXSU-F 4344 185-400mm conductor size, 3core - Outdoor type
