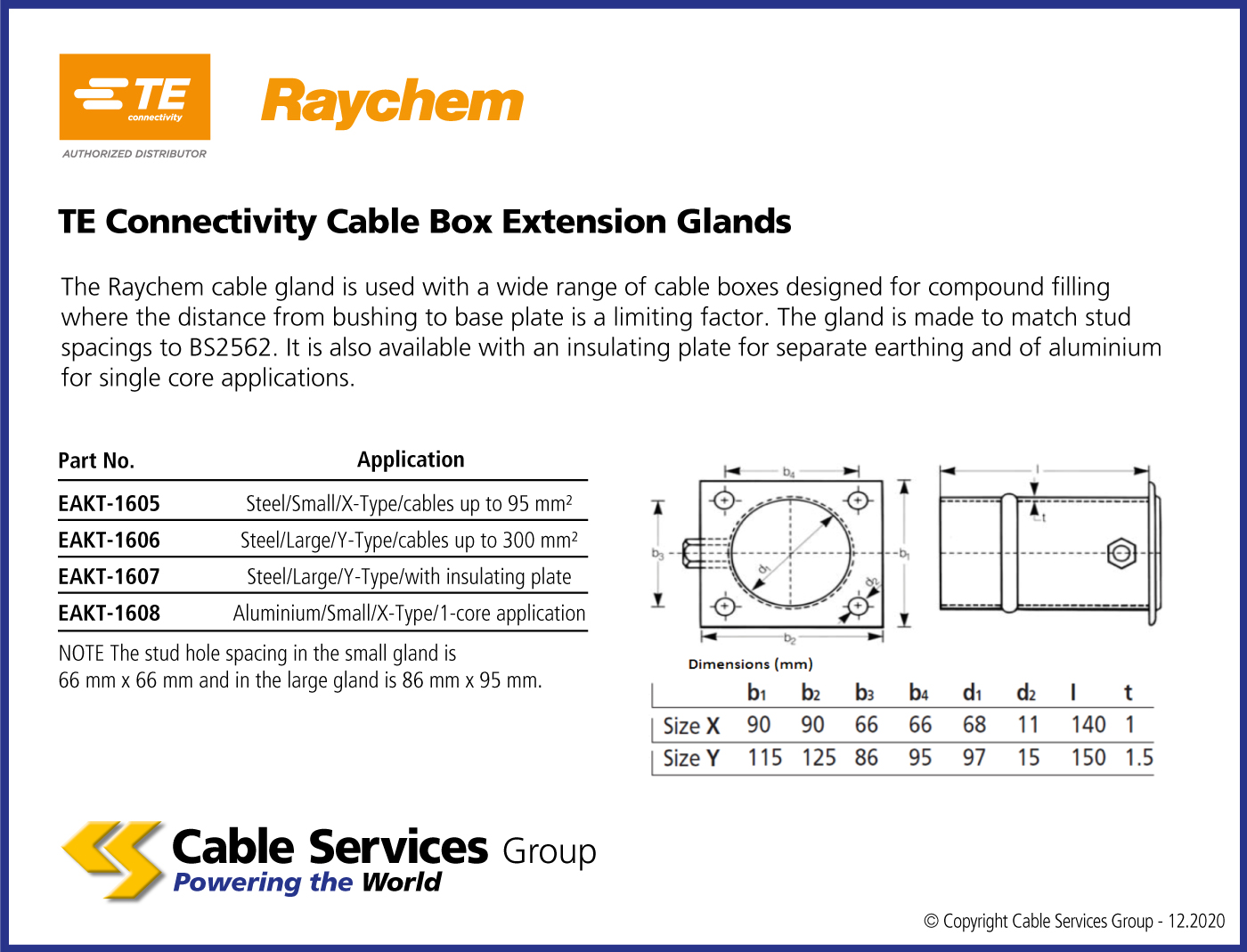

Selection Table

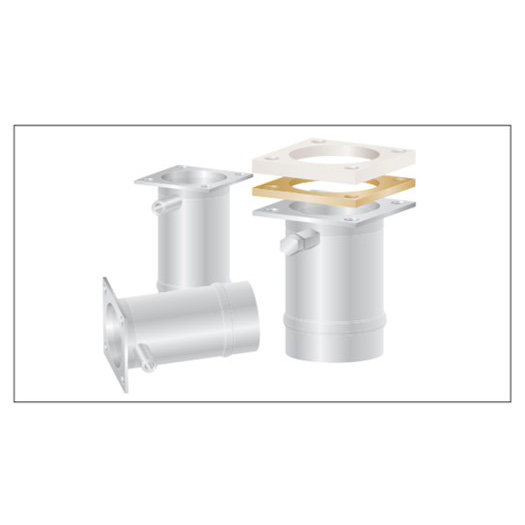

TE Connectivity Cable Box Extension Glands
The Raychem cable gland is used with a wide range of cable boxes designed for compound filling where the distance from bushing to base plate is a limiting factor. The gland is made to match stud spacings to BS2562. It is also available with an insulating plate for separate earthing and of aluminium for single core applications.
Data Sheets
| Reference | Name | |
|---|---|---|
| EAKT1605 | 36 - 60mm conductor size, 3core type | |
| EAKT1606 | 53 - 94mm conductor size, 3core type | |
| EAKT1607 | 53 - 94mm conductor size, 3core type | |
| EAKT1608 | 36 - 60mm conductor size, 1core type |
