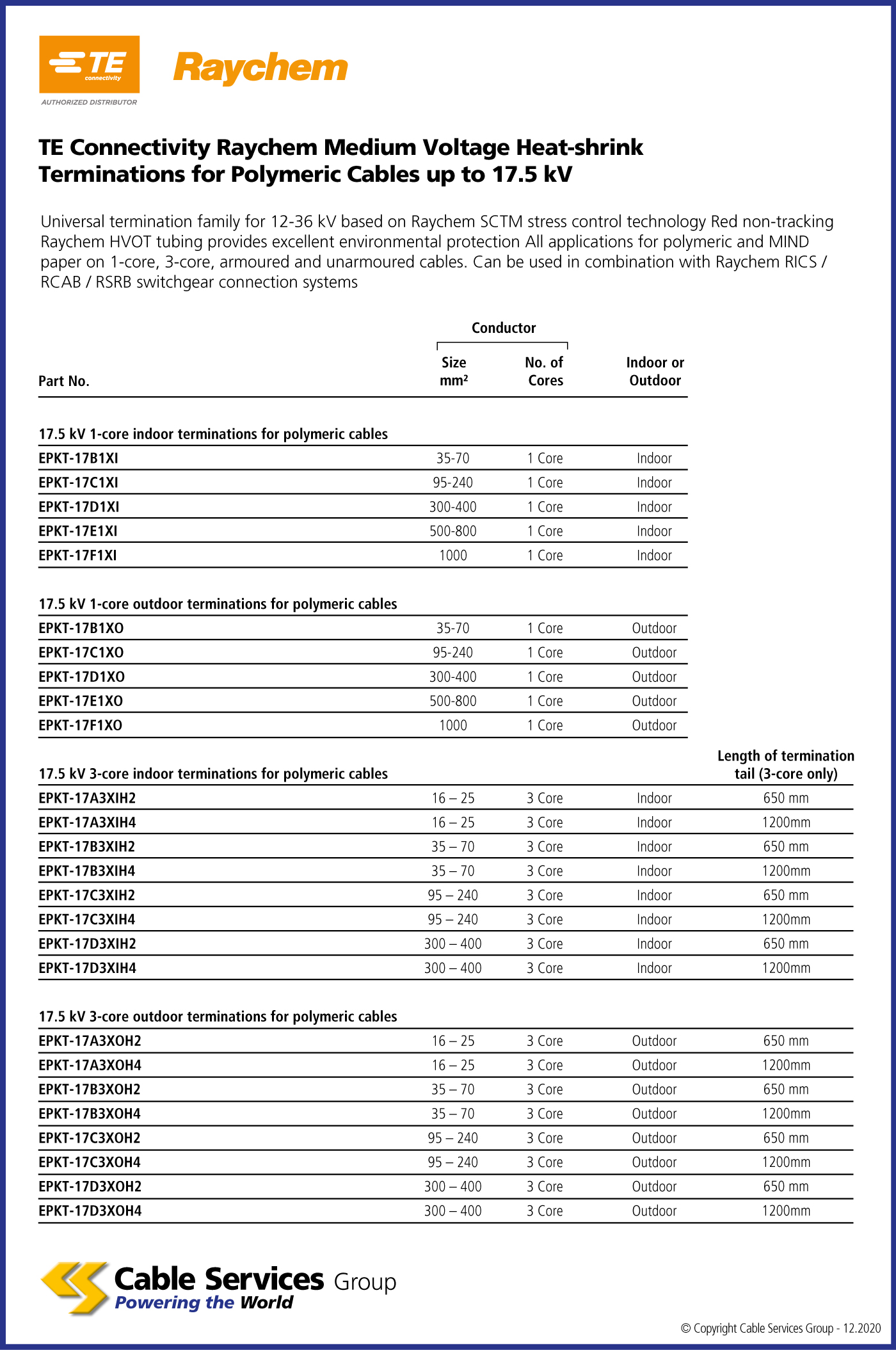

Selection Table

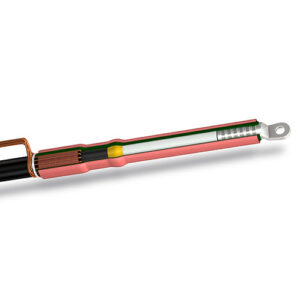

TE Connectivity Raychem Medium Voltage Heat-shrink Terminations for Polymeric Cables up to 17.5 kV
Universal termination family for 12-36 kV based on Raychem SCTM stress control technology Red non-tracking Raychem HVOT tubing provides excellent environmental protection All applications for polymeric and MIND paper on 1-core, 3-core, armoured and unarmoured cables. Can be used in combination with Raychem RICS / RCAB / RSRB switchgear connection systems
Data Sheets
| Reference | Name | |
|---|---|---|
| EPKT17B1XI | 35-70mm conductor size, 1core type | |
| EPKT17C1XI | 95-240mm conductor size, 1core type | |
| EPKT17D1XI | 300-400mm conductor size, 1core type | |
| EPKT17E1XI | 500-800mm conductor size, 1core type | |
| EPKT17F1XI | 1000mm conductor size, 1core type | |
| EPKT17B1XO | 35-70mm conductor size, 1core type | |
| EPKT17C1XO | 95-240mm conductor size, 1core type | |
| EPKT17D1XO | 300-400mm conductor size, 1core type | |
| EPKT17E1XO | 500-800mm conductor size, 1core type | |
| EPKT17F1XO | 1000mm conductor size, 1core type | |
| EPKT 17A3XIH2 | 16 โ 25mm conductor size, 3core type | |
| EPKT 17A3XIH4 | 16 โ 25mm conductor size, 3core type | |
| EPKT 17B3XIH2 | 35-70mm conductor size, 3core type | |
| EPKT 17B3XIH4 | 35-70mm conductor size, 3core type | |
| EPKT 17C3XIH2 | 95-240mm conductor size, 3core type | |
| EPKT 17C3XIH4 | 95-240mm conductor size, 3core type | |
| EPKT 17D3XIH2 | 300-400mm conductor size, 3core type | |
| EPKT 17D3XIH4 | 300-400mm conductor size, 3core type | |
| EPKT17A3XOH2 | 16 โ 25mm conductor size, 3core type | |
| EPKT17A3XOH4 | 16 โ 25mm conductor size, 3core type | |
| EPKT17B3XOH2 | 35-70mm conductor size, 3core type | |
| EPKT17B3XOH4 | 35-70mm conductor size, 3core type | |
| EPKT17C3XOH2 | 95-240mm conductor size, 3core type | |
| EPKT17C3XOH4 | 95-240mm conductor size, 3core type | |
| EPKT17D3XOH2 | 300-400mm conductor size, 3core type | |
| EPKT17D3XOH4 | 300-400mm conductor size, 3core type |
