TE Connectivity Raychem Medium Voltage Heat-shrink Zinc Oxide Stress Control Terminations up to 36 kV

£0.00

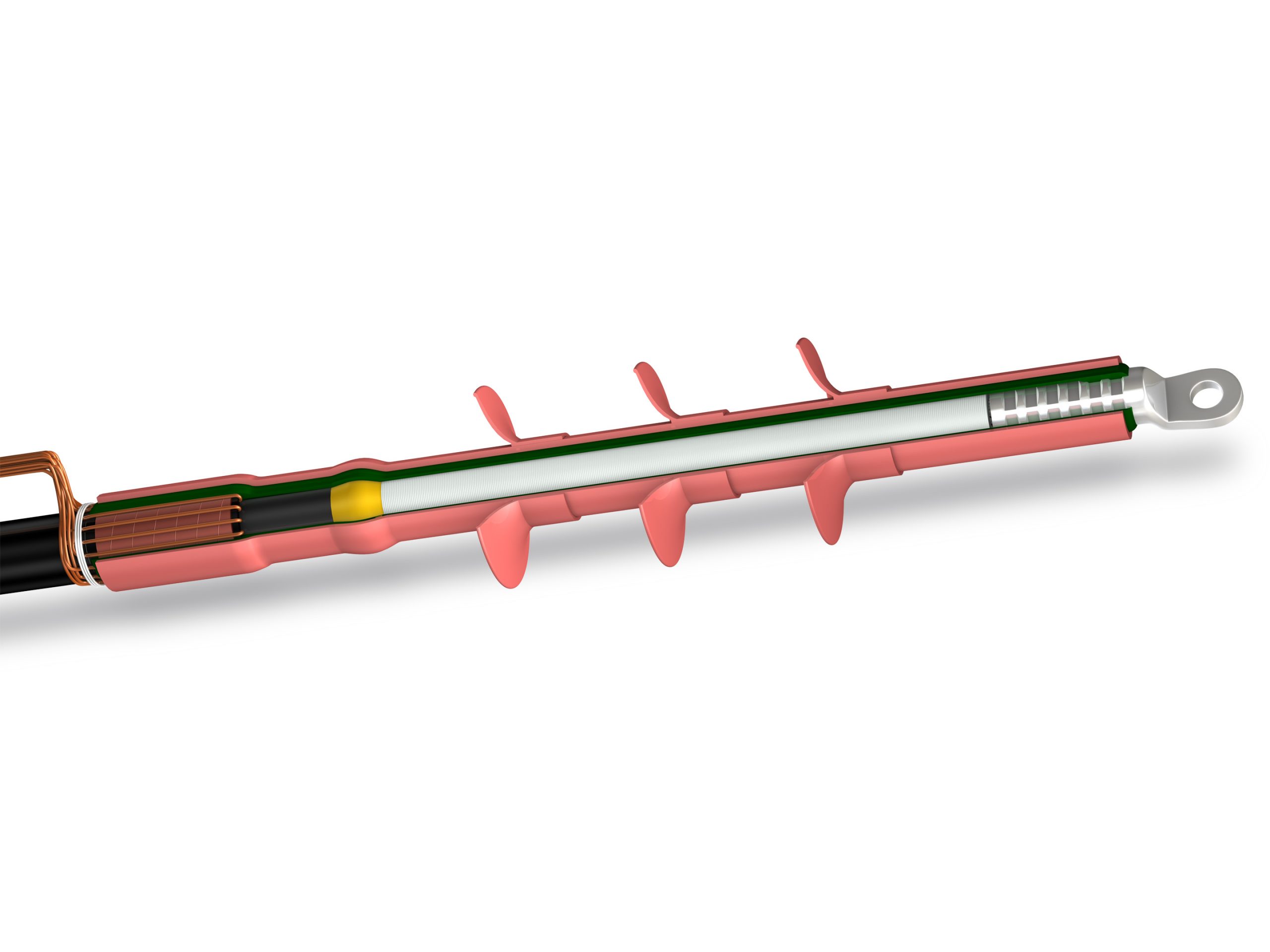

TE Connectivity’s (TE) Raychem IXSU-F/OXSU-F has a recently formulated electrical stress control compound that is based on extensive experience with Raychem ceramic semiconductor technology. The ZnO-based stress control system is integrated in heat-shrinkable insulating tubing. This stress control system fills any irregularities, bonds to the insulation and provides superb electrical performance.

Clear
Category:

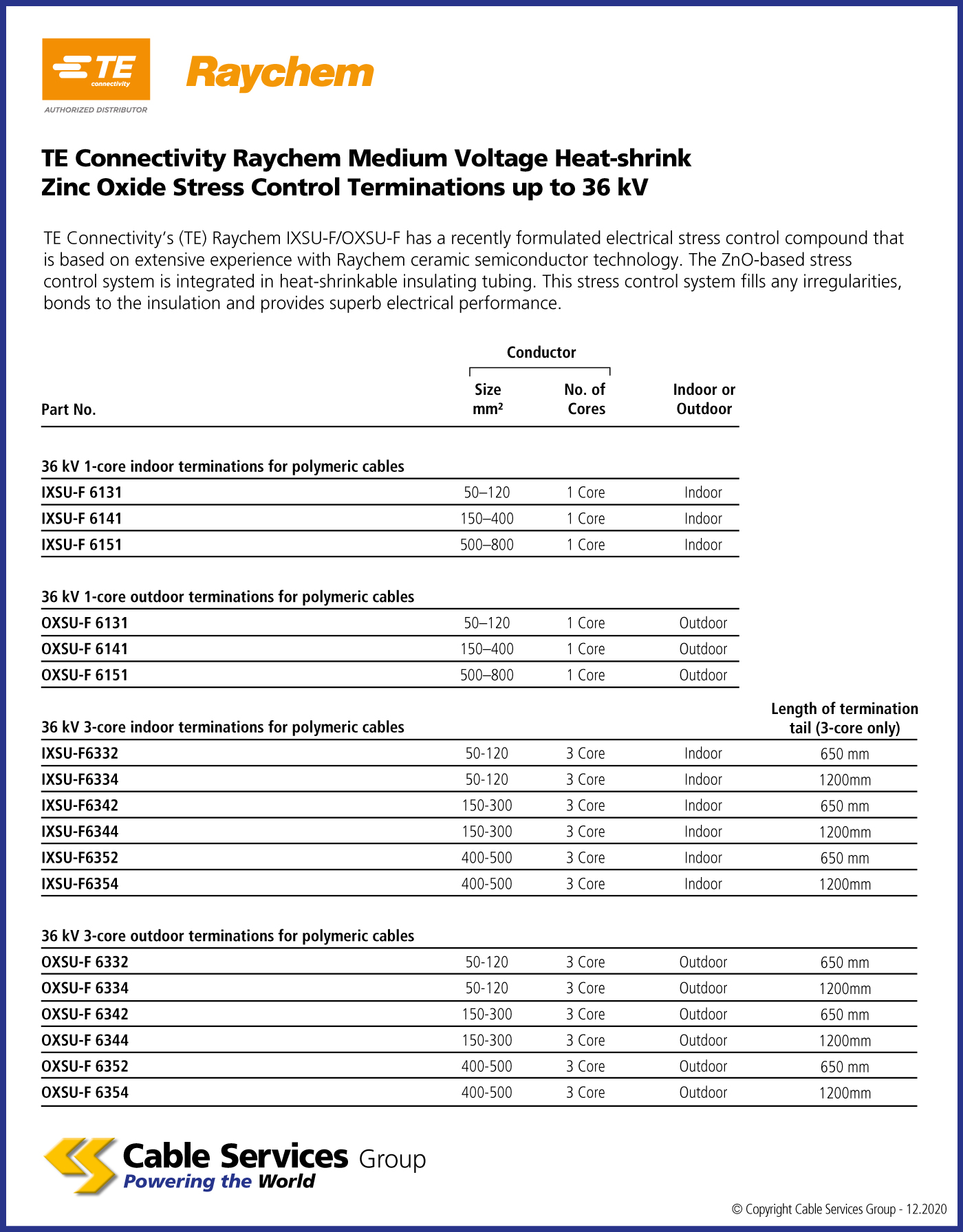

Selection Table

Data Sheets

Download Data Sheet

ReferenceName
IXSU-F613150–120mm conductor size, 1core - Indoor type
IXSU-F6141150–400mm conductor size, 1core - Indoor type
IXSU-F6151500-800mm conductor size, 1core - Indoor type
OXSU-F613150–120mm conductor size, 1core - Outdoor type
OXSU-F6141150–400mm conductor size, 1core - Outdoor type
OXSU-F6151500-800mm conductor size, 1core - Outdoor type
IXSU-F633250–120mm conductor size, 3core - Indoor type
IXSU-F633450–120mm conductor size, 3core - Indoor type
IXSU-F6342150-300mm conductor size, 3core - Indoor type
IXSU-F6344150-300mm conductor size, 3core - Indoor type
IXSU-F6352400-500mm conductor size, 3core - Indoor type
IXSU-F6354400-500mm conductor size, 3core - Indoor type
OXSU-F633250–120mm conductor size, 3core - Outdoor type
OXSU-F633450–120mm conductor size, 3core - Outdoor type
OXSU-F6342150-300mm conductor size, 3core - Outdoor type
OXSU-F6344150-300mm conductor size, 3core - Outdoor type
OXSU-F6352400-500mm conductor size, 3core - Outdoor type
OXSU-F6354400-500mm conductor size, 3core - Outdoor type
