3M™ QTII Cold Shrink Indoor Terminations for 6.6/11(12) kV Cables

3M™ QTII Cold Shrink Indoor Terminations for 6.6/11(12) kV Cables

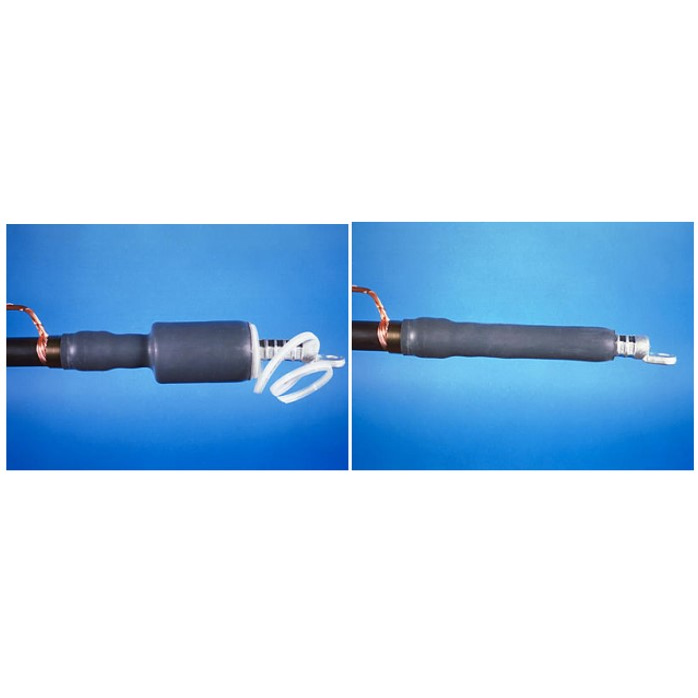

3M™ 92-EP Series Terminations include the Cold Shrink QTIII Silicone Termination body with integrated stress control device, silicone elastomeric insulation and built in moisture sealing mastic layer. Skirts are integrated for easier & faster installation. Also included are all armour continuity components where applicable

Categories: ,

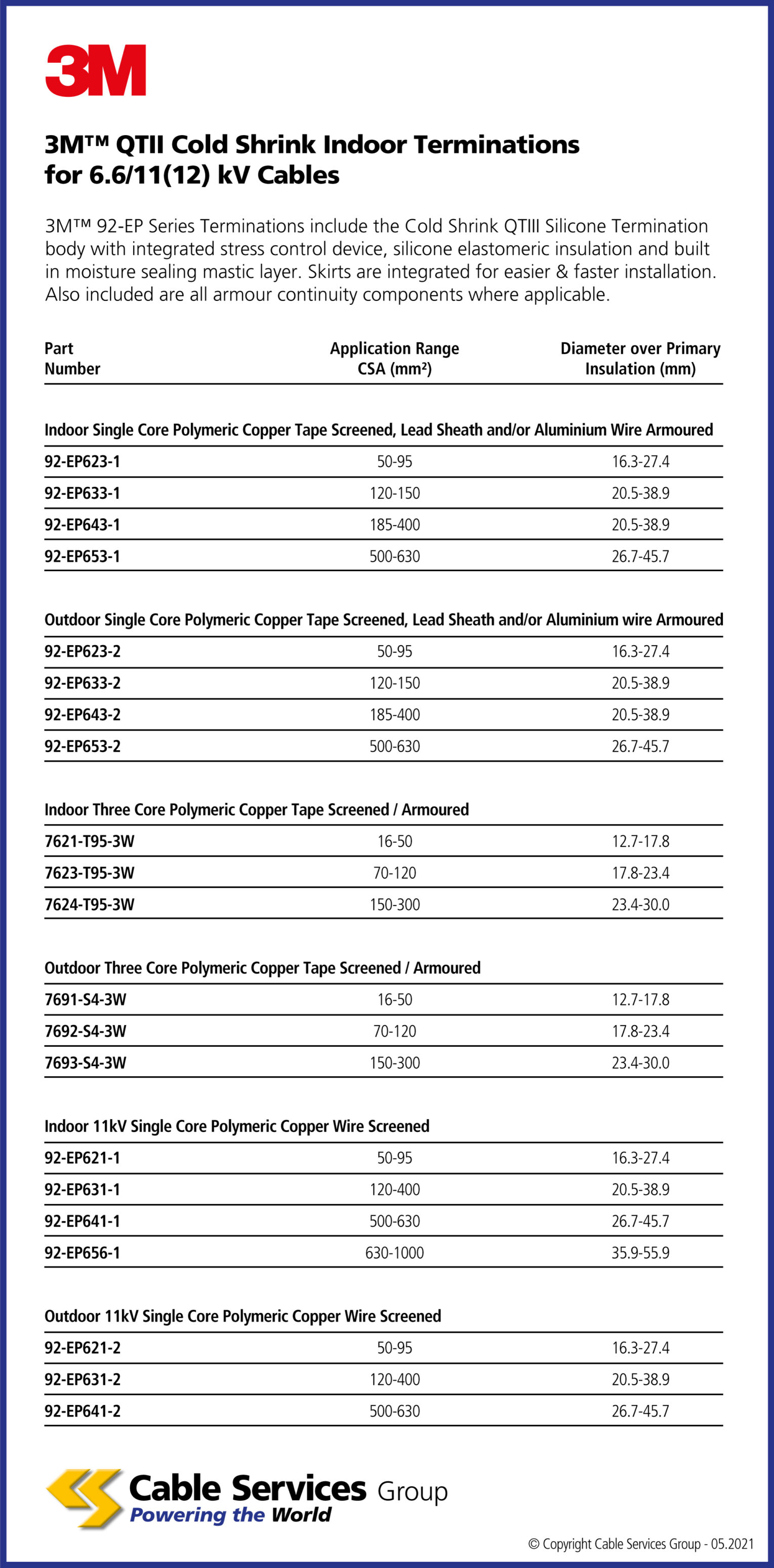

Selection Table

Data Sheets

Download Data Sheet

Reference Name
92-EP623-1 50 - 95mm2 conductor size, Indoor type
92-EP633-1 120-150mm2 conductor size, Indoor type
92-EP643-1 185-400mm2 conductor size, Indoor type
92-EP653-1 500-630mm2 conductor size, Indoor type
92-EP623-2 50 - 95mm2 conductor size, Outdoor type
92-EP633-2 120-150mm2 conductor size, Outdoor type
92-EP643-2 185-400mm2 conductor size, Outdoor type
92-EP653-2 500-630mm2 conductor size, Outdoor type
7621-T95-3W 16-50mm2 conductor size, Indoor type
7623-T95-3W 70-120mm2 conductor size, Indoor type
7624-T95-3W 150-300mm2 conductor size, Indoor type
7691-S4-3W 16-50mm2 conductor size, Outdoor type
7692-S4-3W 70-120mm2 conductor size, Outdoor type
7693-S4-3W 150-300mm2 conductor size, Outdoor type
92-EP621-1 50 - 95mm2 conductor size, Indoor type
92-EP631-1 120-400mm2 conductor size, Indoor type
92-EP641-1 500-630mm2 conductor size, Indoor type
92-EP656-1 630-1000mm2 conductor size, Indoor type
92-EP621-2 50 - 95mm2 conductor size, Outdoor type
92-EP631-2 120-400mm2 conductor size, Outdoor type
92-EP641-2 500-630mm2 conductor size, Outdoor type
MT16 70-300mm2 conductor size, Indoor type
MO16 70-300mm2 conductor size, Outdoor type
