TE Connectivity Raychem Heat-shrink Bushing Boots up to 17.5 kV

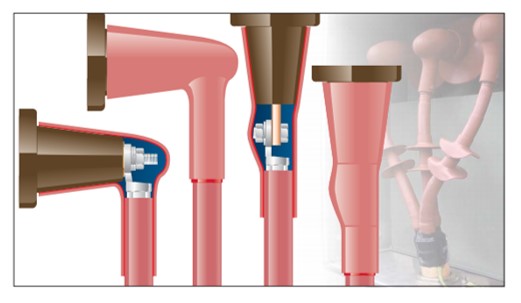

TE Connectivity’s Raychem heat-shrink insulating boots are moulded parts, that fit over the connection between a termination’s cable lug and an equipment bushing, to provide phase-to-phase and phase-to-ground insulation. They are used in switchgear and transformer cable boxes, where air clearances are insufficient for normal operation, and they also protect against flashover caused by rodents or high humidity.
Data Sheets

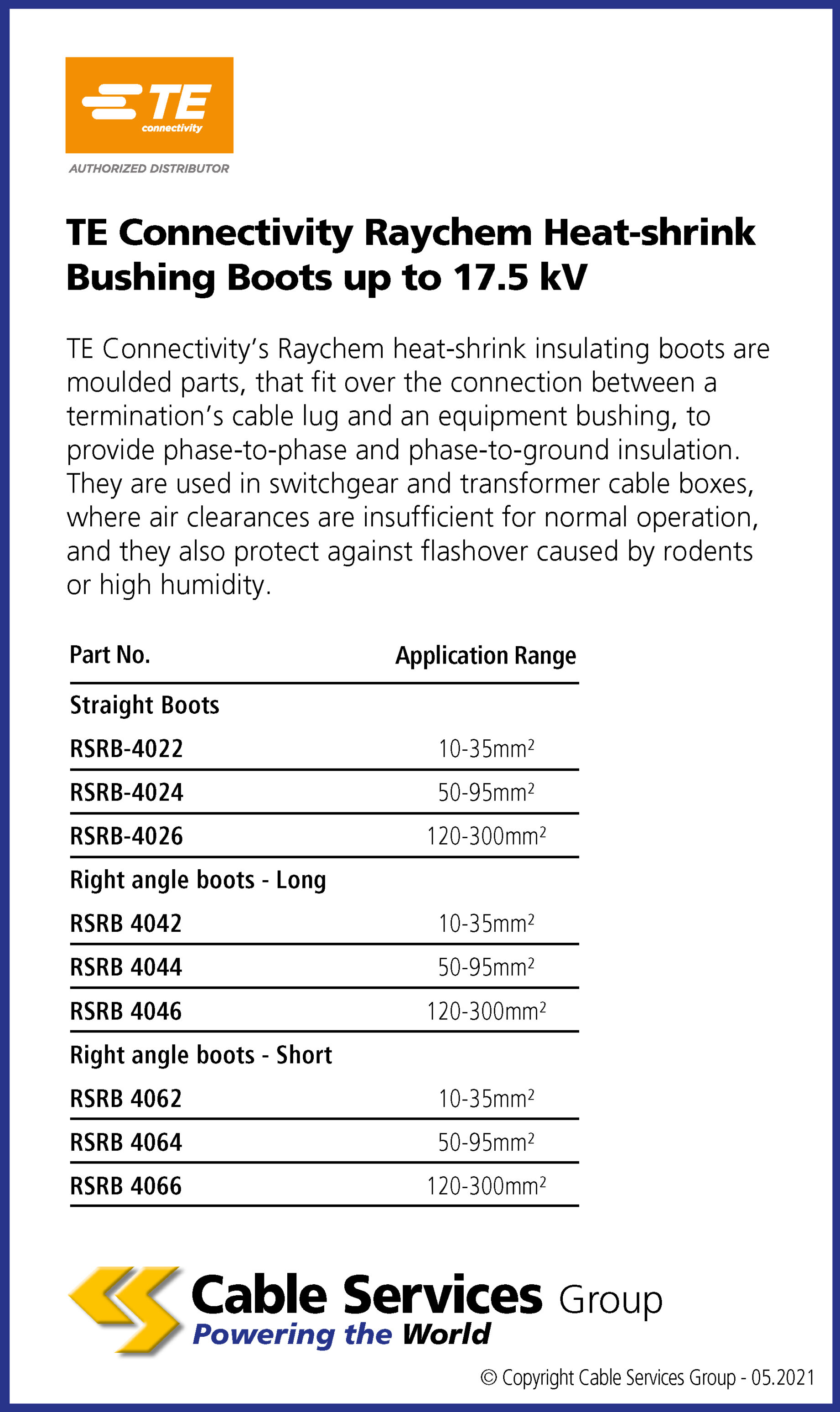

| Reference | Name | |
|---|---|---|
| RSRB4022 | 10 - 35mm2 conductor size, Straight boots type | |
| RSRB4024 | 50 - 95mm2 conductor size, Straight boots type | |
| RSRB4026 | 120 - 300mm2 conductor size, Straight boots type | |
| RSRB4042 | 10 - 35mm2 conductor size, Right angle boots - long type | |
| RSRB4044 | 50 - 95mm2 conductor size, Right angle boots - long type | |
| RSRB4046 | 120 - 300mm2 conductor size, Right angle boots - long type | |
| RSRB4062 | 10 - 35mm2 conductor size, Right angle boots - short type | |
| RSRB4064 | 50 - 95mm2 conductor size, Right angle boots - short type | |
| RSRB4066 | 120 - 300mm2 conductor size, Right angle boots - short type |
