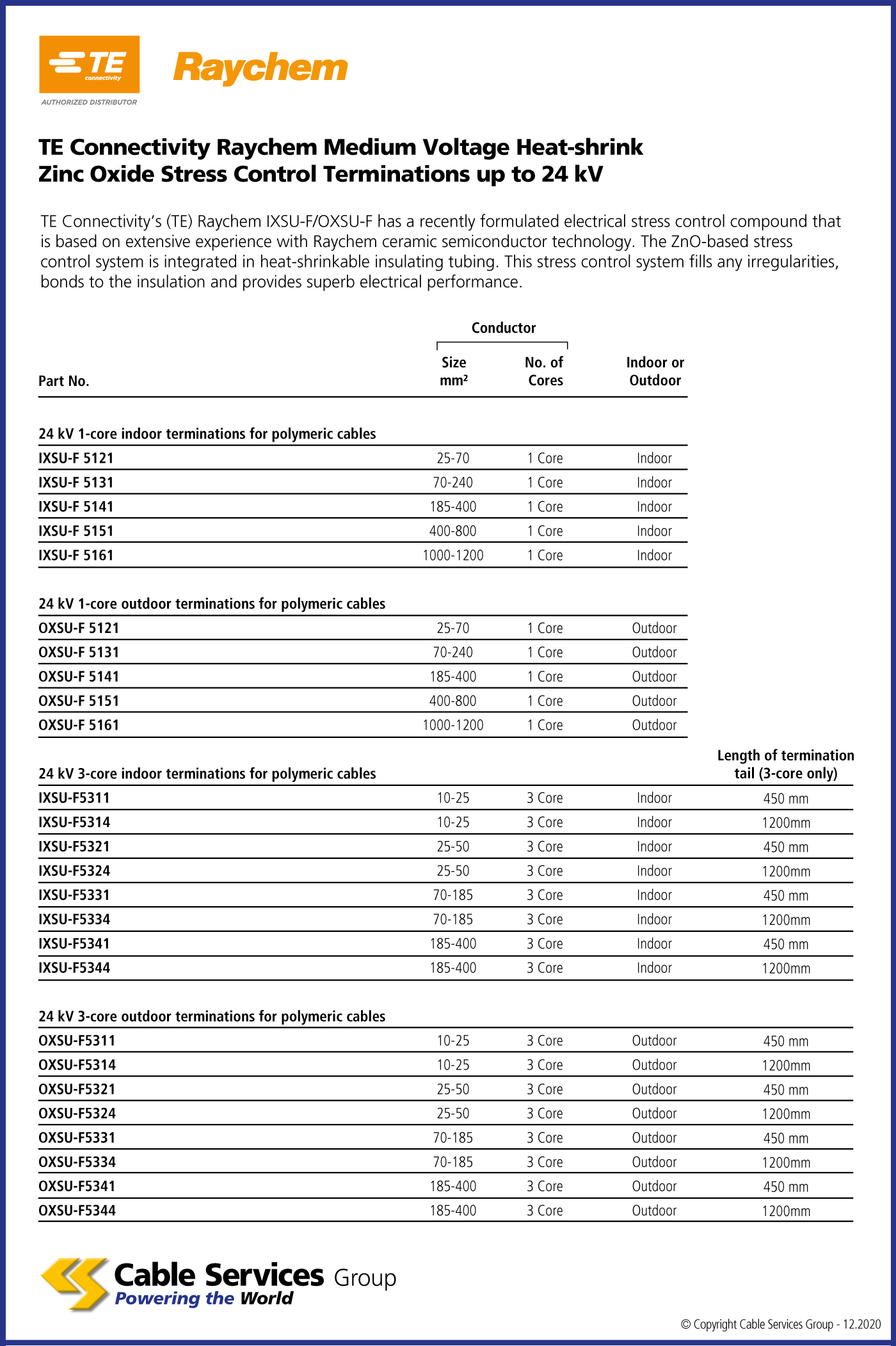

Selection Table

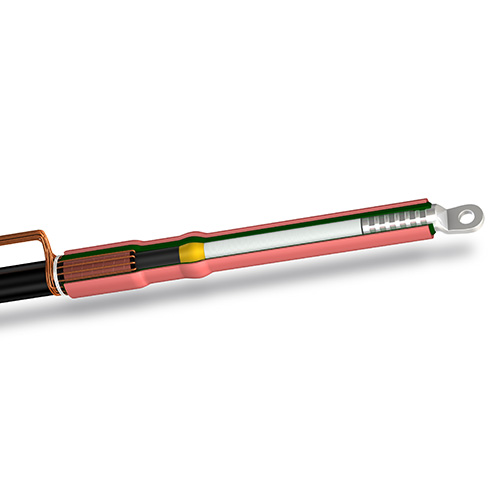

TE Connectivity Raychem Medium Voltage Heat-shrink Zinc Oxide Stress Control Terminations up to 24 kV
TE Connectivity’s (TE) Raychem IXSU-F/OXSU-F has a recently formulated electrical stress control compound that is based on extensive experience with Raychem ceramic semiconductor technology. The ZnO-based stress control system is integrated in heat-shrinkable insulating tubing. This stress control system fills any irregularities, bonds to the insulation and provides superb electrical performance.
Data Sheets
| Reference | Name | |
|---|---|---|
| IXSU-F5121 | 25-70mm conductor size, 1core - Indoor type | |
| IXSU-F5131 | 70-240mm conductor size, 1core - Indoor type | |
| IXSU-F5141 | 185-400mm conductor size, 1core - Indoor type | |
| IXSU-F5151 | 400-800mm conductor size, 1core - Indoor type | |
| IXSU-F5161 | 1000-1200mm conductor size, 1core - Indoor type | |
| OXSU-F5121 | 25-70mm conductor size, 1core - Outdoor type | |
| OXSU-F5131 | 70-240mm conductor size, 1core - Outdoor type | |
| OXSU-F5141 | 185-400mm conductor size, 1core - Outdoor type | |
| OXSU-F5151 | 400-800mm conductor size, 1core - Outdoor type | |
| OXSU-F5161 | 1000-1200mm conductor size, 1core - Outdoor type | |
| IXSU-F5311 | 10-25mm conductor size, 3core - Indoor type | |
| IXSU-F5314 | 10-25mm conductor size, 3core - Indoor type | |
| IXSU-F5321 | 25-50mm conductor size, 3core - Indoor type | |
| IXSU-F5324 | 25-50mm conductor size, 3core - Indoor type | |
| IXSU-F5331 | 70-185mm conductor size, 3core - Indoor type | |
| IXSU-F5334 | 70-185mm conductor size, 3core - Indoor type | |
| IXSU-F5341 | 185-400mm conductor size, 3core - Indoor type | |
| IXSU-F5344 | 185-400mm conductor size, 3core - Indoor type | |
| OXSU-F5311 | 10-25mm conductor size, 3core - Outdoor type | |
| OXSU-F5314 | 10-25mm conductor size, 3core - Outdoor type | |
| OXSU-F5321 | 25-50mm conductor size, 3core - Outdoor type | |
| OXSU-F5324 | 25-50mm conductor size, 3core - Outdoor type | |
| OXSU-F5331 | 70-185mm conductor size, 3core - Outdoor type | |
| OXSU-F5334 | 70-185mm conductor size, 3core - Outdoor type | |
| OXSU-F5341 | 185-400mm conductor size, 3core - Outdoor type | |
| OXSU-F5344 | 185-400mm conductor size, 3core - Outdoor type |
