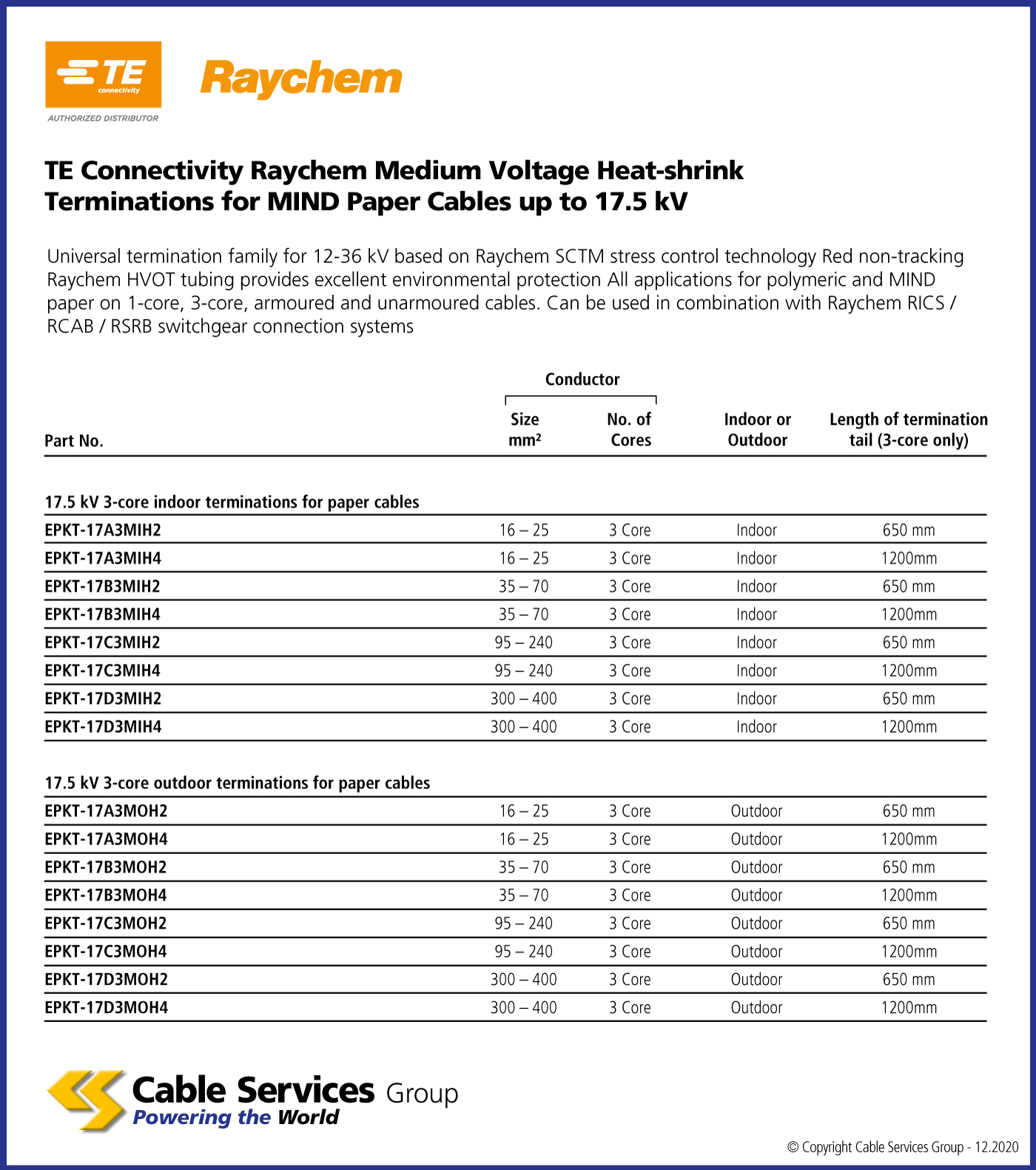

Selection Table
TE Connectivity Raychem Medium Voltage Heat-shrink Terminations for MIND Paper Cables up to 17.5 kV
Universal termination family for 12-36 kV based on Raychem SCTM stress control technology Red non-tracking Raychem HVOT tubing provides excellent environmental protection All applications for polymeric and MIND paper on 1-core, 3-core, armoured and unarmoured cables. Can be used in combination with Raychem RICS / RCAB / RSRB switchgear connection systems
Data Sheets
| Reference | Name | |
|---|---|---|
| EPKT17A3MIH2 | 16 – 25mm conductor size, 3core - Outdoor type | |
| EPKT17A3MIH4 | 16 – 25mm conductor size, 3core - Indoor type | |
| EPKT17B3MIH2 | 35-70mm conductor size, 3core - Indoor type | |
| EPKT17B3MIH4 | 35-70mm conductor size, 3core - Indoor type | |
| EPKT17C3MIH2 | 95-240mm conductor size, 3core - Indoor type | |
| EPKT17C3MIH4 | 95-240mm conductor size, 3core - Indoor type | |
| EPKT17D3MIH2 | 300-400mm conductor size, 3core - Indoor type | |
| EPKT17D3MIH4 | 300-400mm conductor size, 3core - Indoor type | |
| EPKT17A3MOH2 | 16 – 25mm conductor size, 3core - Outdoor type | |
| EPKT17A3MOH4 | 16 – 25mm conductor size, 3core - Outdoor type | |
| EPKT17B3MOH2 | 35-70mm conductor size, 3core - Outdoor type | |
| EPKT17B3MOH4 | 35-70mm conductor size, 3core - Outdoor type | |
| EPKT17C3MOH2 | 95-240mm conductor size, 3core - Outdoor type | |
| EPKT17C3MOH4 | 95-240mm conductor size, 3core - Outdoor type | |
| EPKT17D3MOH2 | 300-400mm conductor size, 3core - Outdoor type | |
| EPKT17D3MOH4 | 300-400mm conductor size, 3core - Outdoor type |
