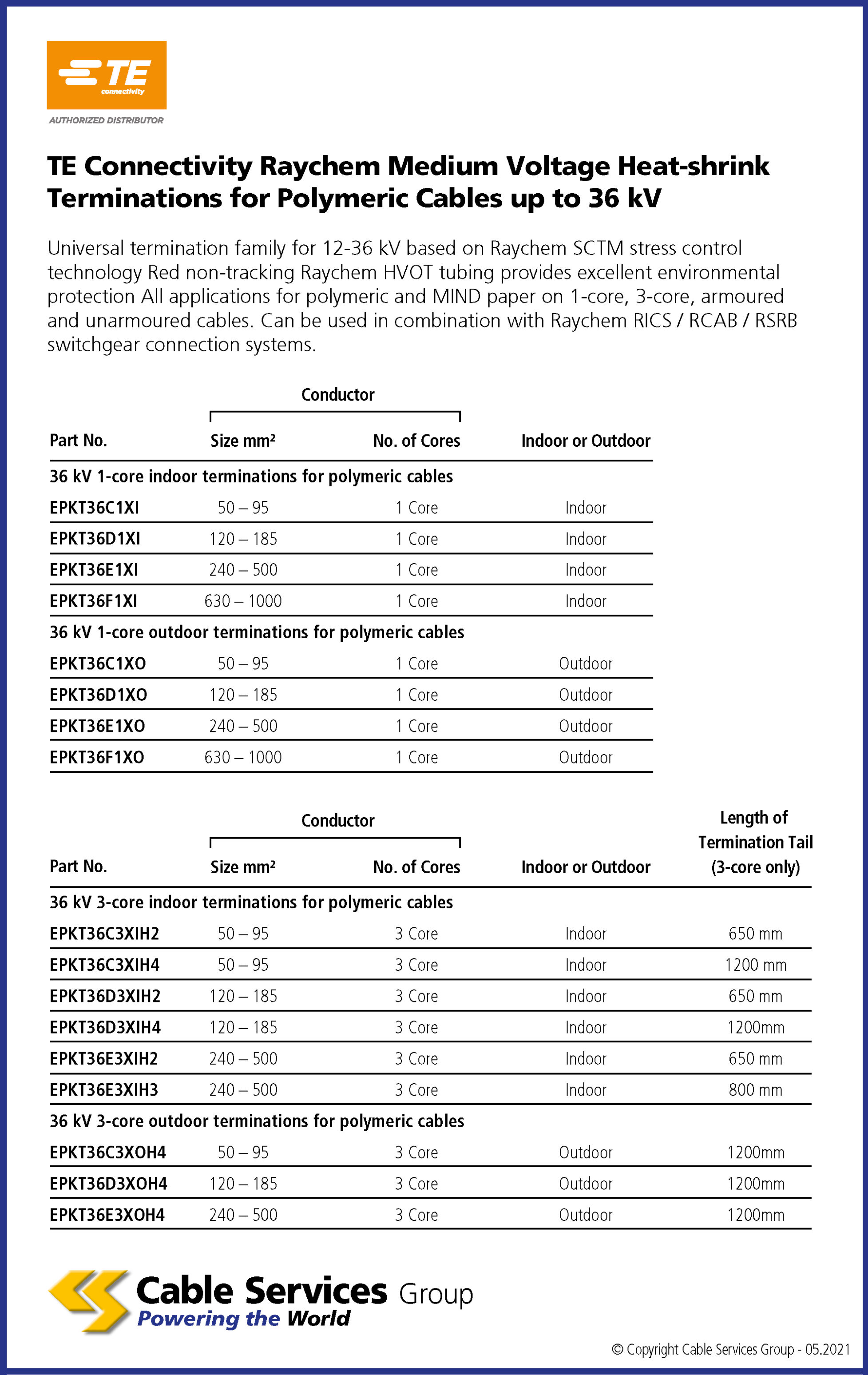

Selection Table
TE Connectivity Raychem Medium Voltage Heat-shrink Terminations for Polymeric Cables up to 36 kV
Universal termination family for 12-36 kV based on Raychem SCTM stress control technology Red non-tracking Raychem HVOT tubing provides excellent environmental protection All applications for polymeric and MIND paper on 1-core, 3-core, armoured and unarmoured cables. Can be used in combination with Raychem RICS / RCAB / RSRB switchgear connection systems
Data Sheets
| Reference | Name | |
|---|---|---|
| EPKT36C1XI | 50 – 95mm conductor size, 1core - Indoor type | |
| EPKT36D1XI | 120 – 185mm conductor size, 1core - Indoor type | |
| EPKT36E1XI | 240-500mm conductor size, 1core - Indoor type | |
| EPKT36F1XI | 630 – 1000mm conductor size, 1core - Indoor type | |
| EPKT36C1XO | 50 – 95mm conductor size, 1core - Outdoor type | |
| EPKT36D1XO | 120 – 185mm conductor size, 1core - Outdoor type | |
| EPKT36E1XO | 240-500mm conductor size, 1core - Outdoor type | |
| EPKT36F1XO | 630 – 1000mm conductor size, 1core - Outdoor type | |
| EPKT36C3XIH2 | 50 – 95mm conductor size, 3core - Indoor type | |
| EPKT36C3XIH4 | 50 – 95mm conductor size, 3core - Indoor type | |
| EPKT36D3XIH2 | 120 – 185mm conductor size, 3core - Indoor type | |
| EPKT36D3XIH4 | 120 – 185mm conductor size, 3core - Indoor type | |
| EPKT36E3XIH2 | 240-500mm conductor size, 3core - Indoor type | |
| EPKT36E3XIH3 | 240-500mm conductor size, 3core - Indoor type | |
| EPKT36C3XOH4 | 50 – 95mm conductor size, 3core - Outdoor type | |
| EPKT36D3XOH4 | 120 – 185mm conductor size, 3core - Outdoor type | |
| EPKT36E3XOH4 | 240-500mm conductor size, 3core - Outdoor type |
