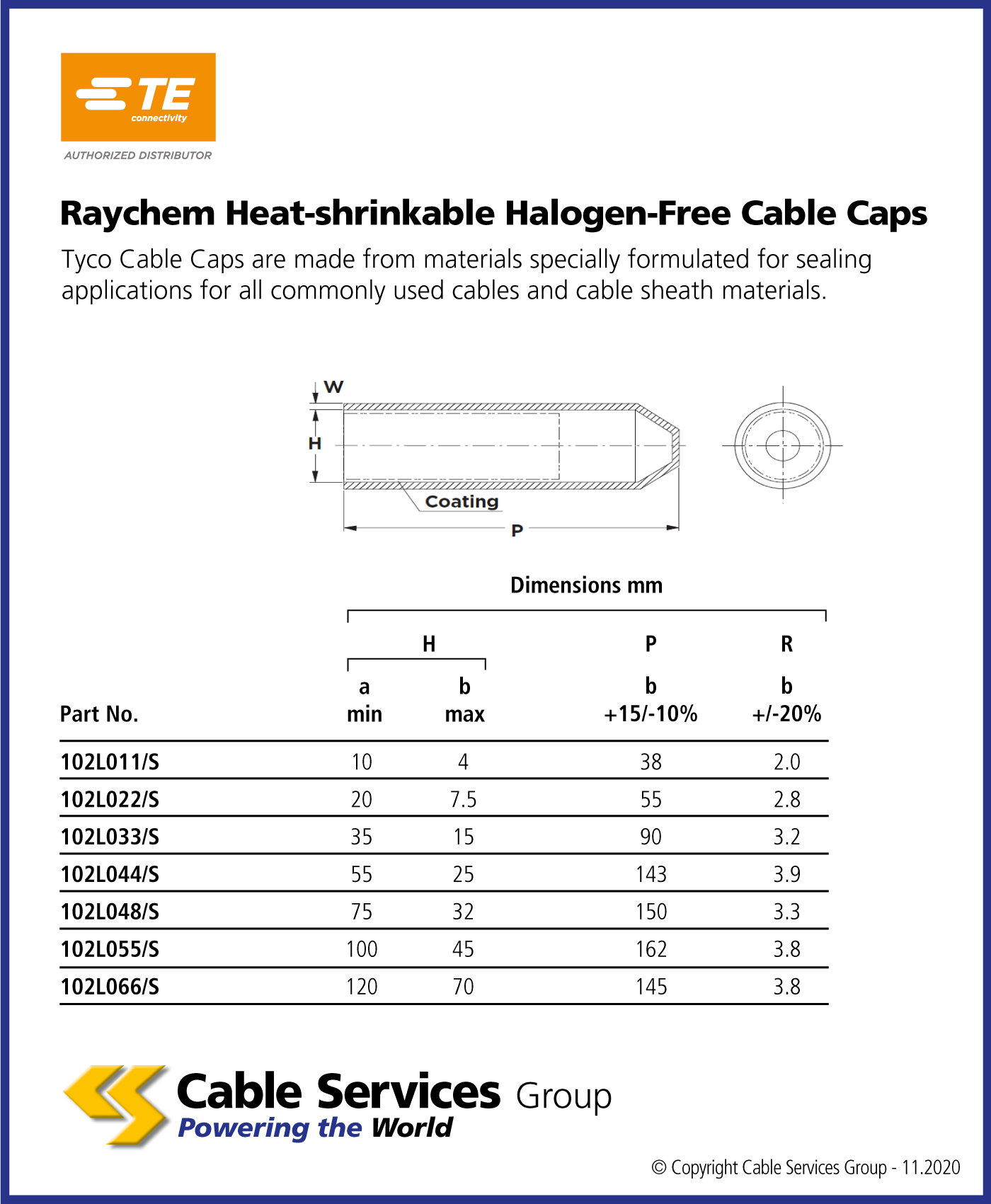

Selection Table

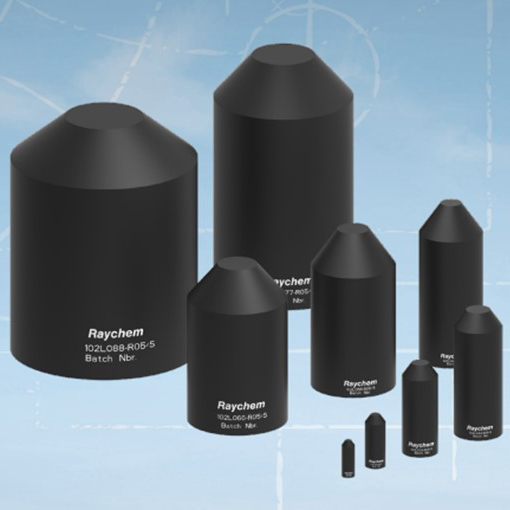

TE Connectivity Heat-shrinkable Halogen-Free Cable Caps
Tyco Cable Caps are made from materials specially formulated for sealing applications for all commonly used cables and cable sheath materials. The sealant can be used on plastic, rubber and paper insulated cables.
Data Sheets
| Reference | Name | |
|---|---|---|
| 102L011 | 10 - 4mm range | |
| 102L022 | 20 - 7.5mm range | |
| 102L033 | 35 - 15mm range | |
| 102L044 | 55 - 25mm range | |
| 102L048 | 75 - 32mm range | |
| 102L055 | 100 - 45mm range | |
| 102L066 | 120 - 70mm range |
