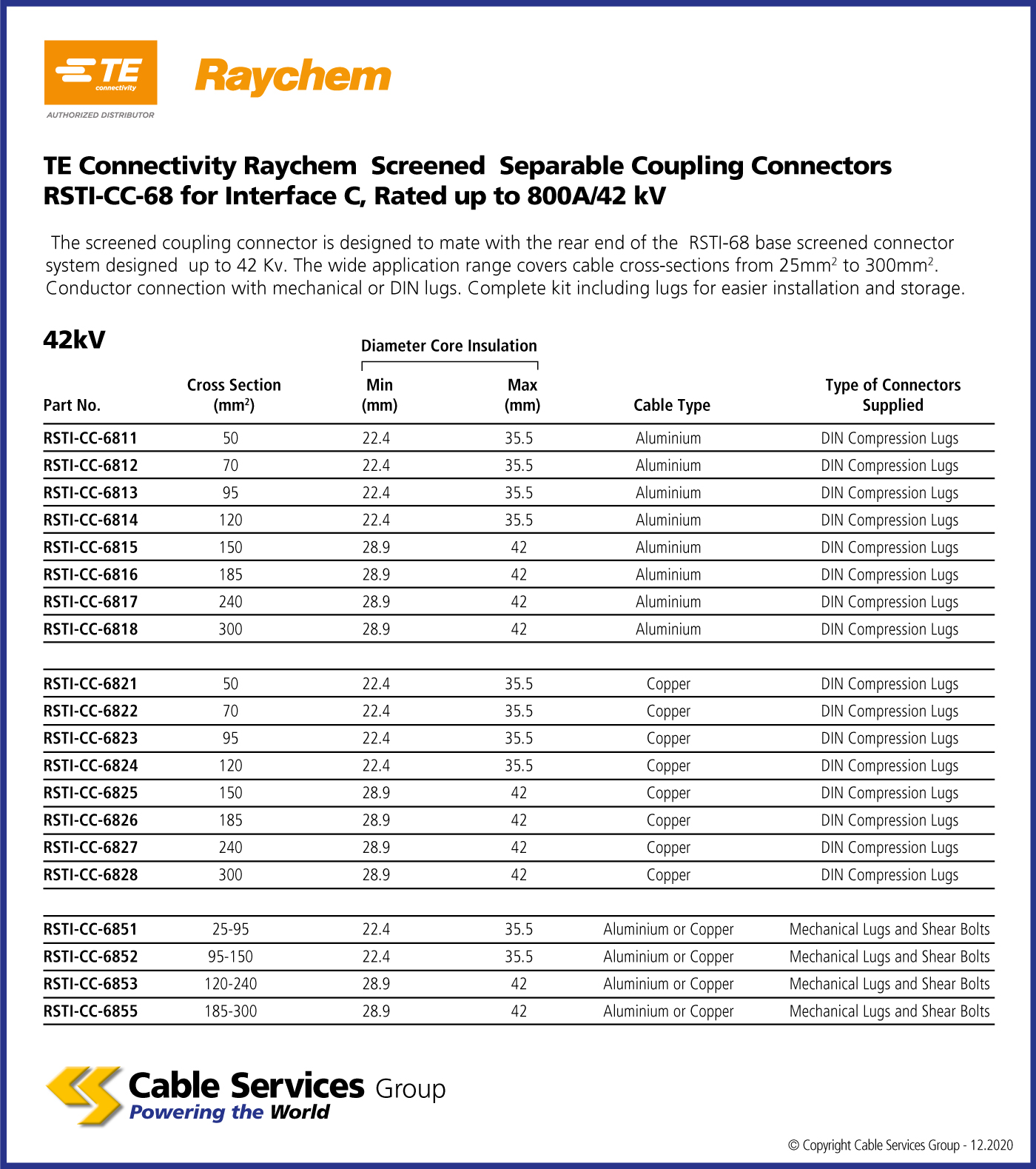

Selection Table
TE Connectivity Raychem Screened Separable Coupling Connectors RSTI-CC-68 for Interface C, Rated up to 800A/42 kV

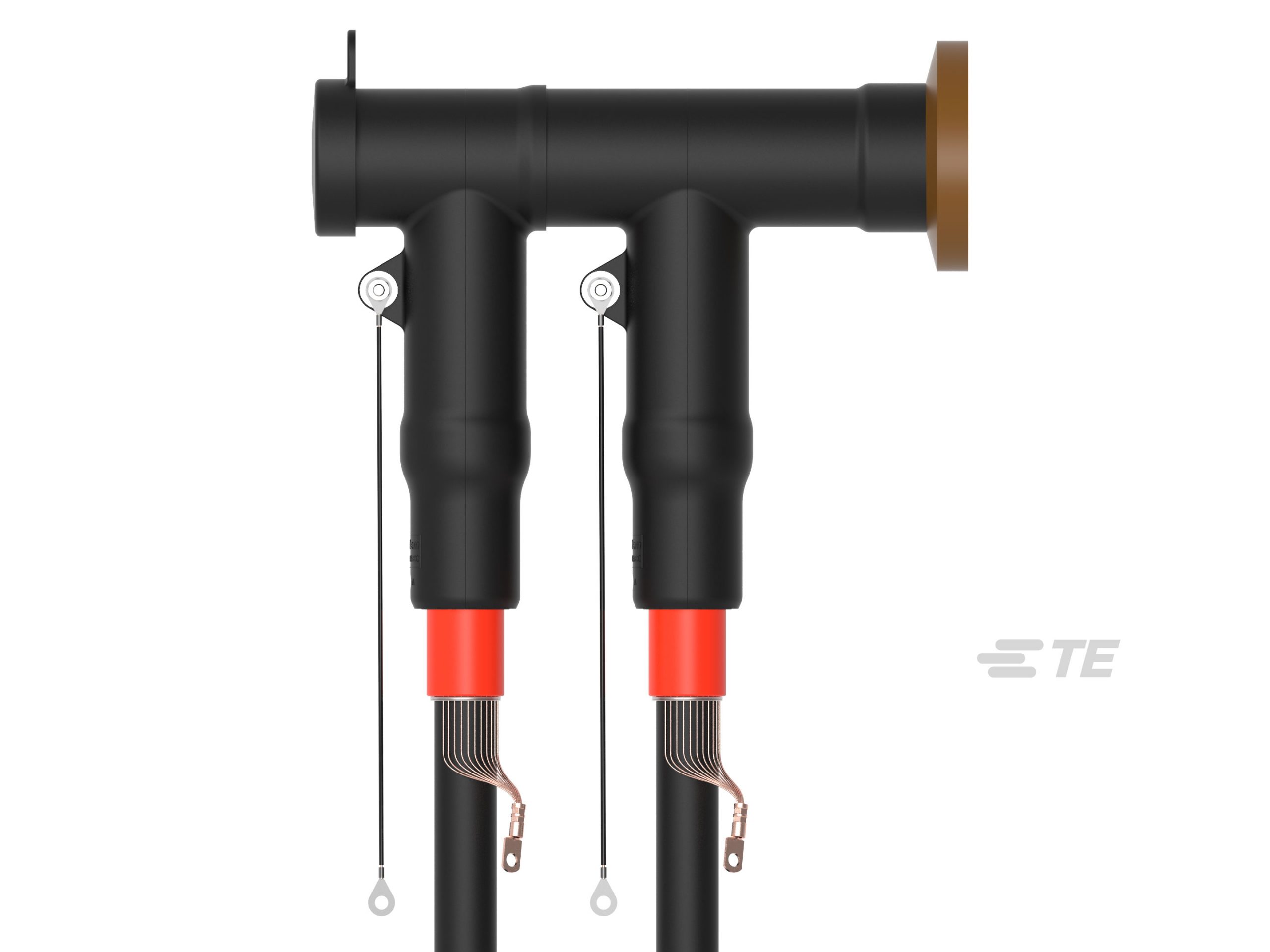

The screened coupling connector is designed to mate with the rear end of the RSTI-68 base screened connector system designed up to 42 Kv. The wide application range covers cable cross-sections from 25 mm2 to 300 mm2. Conductor connection with mechanical or DIN lugs. Complete kit including lugs for easier installation and storage.
Data Sheets
| Reference | Name | |
|---|---|---|
| RSTI-CC-6811 | 50mm2 cross section, Aluminium type | |
| RSTI-CC-6812 | 70mm2 cross section, Aluminium type | |
| RSTI-CC-6813 | 95mm2 cross section, Aluminium type | |
| RSTI-CC-6814 | 120mm2 cross section, Aluminium type | |
| RSTI-CC-6815 | 150mm2 cross section, Aluminium type | |
| RSTI-CC-6816 | 185mm2 cross section, Aluminium type | |
| RSTI-CC-6817 | 240mm2 cross section, Aluminium type | |
| RSTI-CC-6818 | 300mm2 cross section, Aluminium type | |
| RSTI-CC-6821 | 50mm2 cross section, Copper type | |
| RSTI-CC-6822 | 70mm2 cross section, Copper type | |
| RSTI-CC-6823 | 95mm2 cross section, Copper type | |
| RSTI-CC-6824 | 120mm2 cross section, Copper type | |
| RSTI-CC-6825 | 150mm2 cross section, Copper type | |
| RSTI-CC-6826 | 185mm2 cross section, Copper type | |
| RSTI-CC-6827 | 240mm2 cross section, Copper type | |
| RSTI-CC-6828 | 300mm2 cross section, Copper type | |
| RSTI-CC-6851 | 25-95mm2 cross section, Aluminium or Copper type | |
| RSTI-CC-6852 | 95-150mm2 cross section, Aluminium or Copper type | |
| RSTI-CC-6853 | 120-240mm2 cross section, Aluminium or Copper type | |
| RSTI-CC-6855 | 185-300mm2 cross section, Aluminium or Copper type |
