TE Connectivity (TE) Single Cable Cleat – Centre Mount Version

Polymeric Flame-Retardant V0 Material. Strong Performance with Maximum Cable Protection. TE Connectivity’s (TE) Single Cable Cleats are designed to offer a highly reliable retention system for cables and terminations in LV, MV and HV applications. They are compact, stackable and reduce the mechanical load where space is limited, such as wind farms, data centers, substations and switchgears

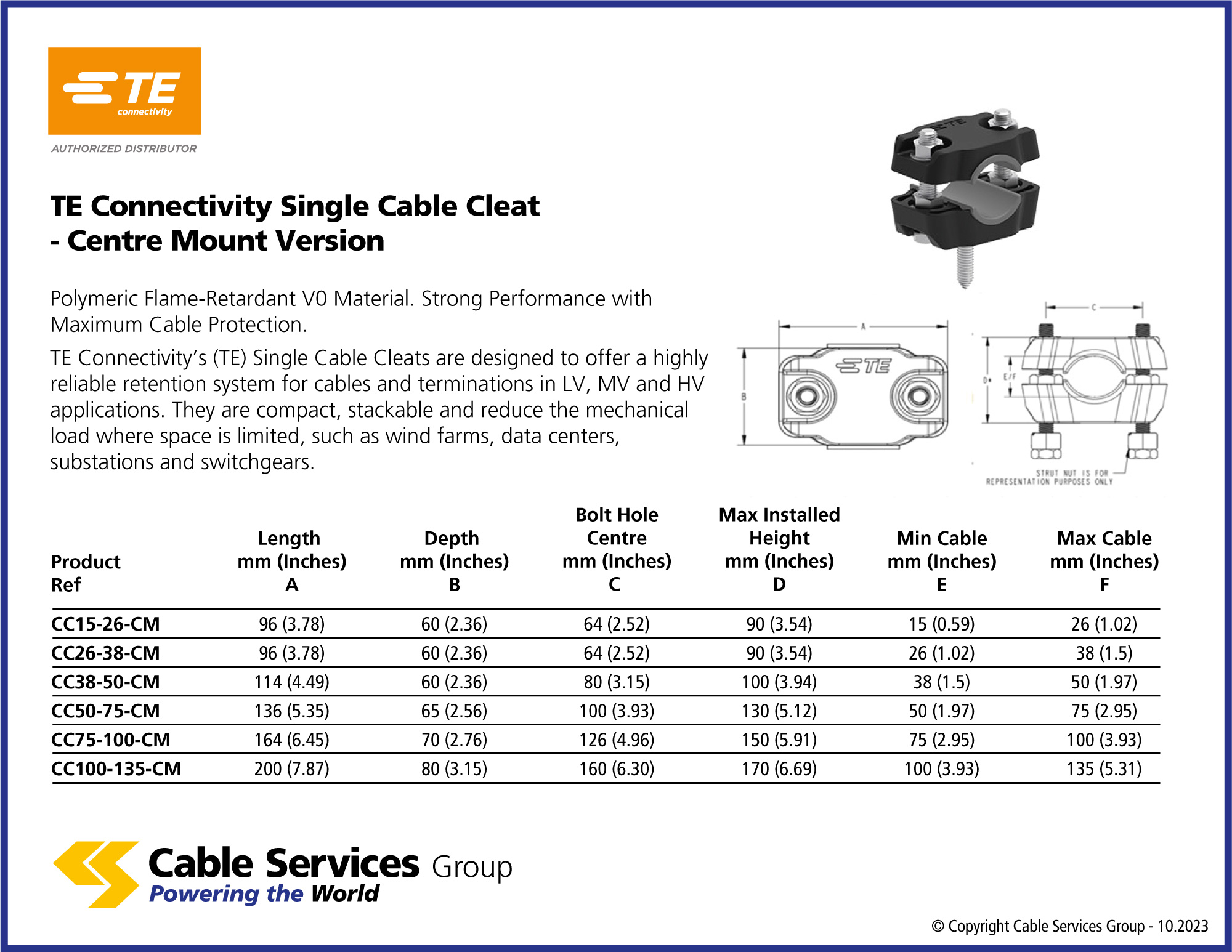

Selection Table

Data Sheets

Download Data Sheet

Reference Name
CC15-26-CM 15 - 26mm diameter
CC26-38-CM 26 - 38mm diameter
CC38-50-CM 38 - 50mm diameter
CC50-75-CM 50 - 75mm diameter
CC75-100-CM 75 - 100mm diameter
CC100-135-CM 100 - 135mm diameter
