Bussmann Barrel Type Fuses – House Service Cut-Out Fuse Links

£0.00

House Service Cut out and J Type – Fuse Links to BS1361

Clear
Category:

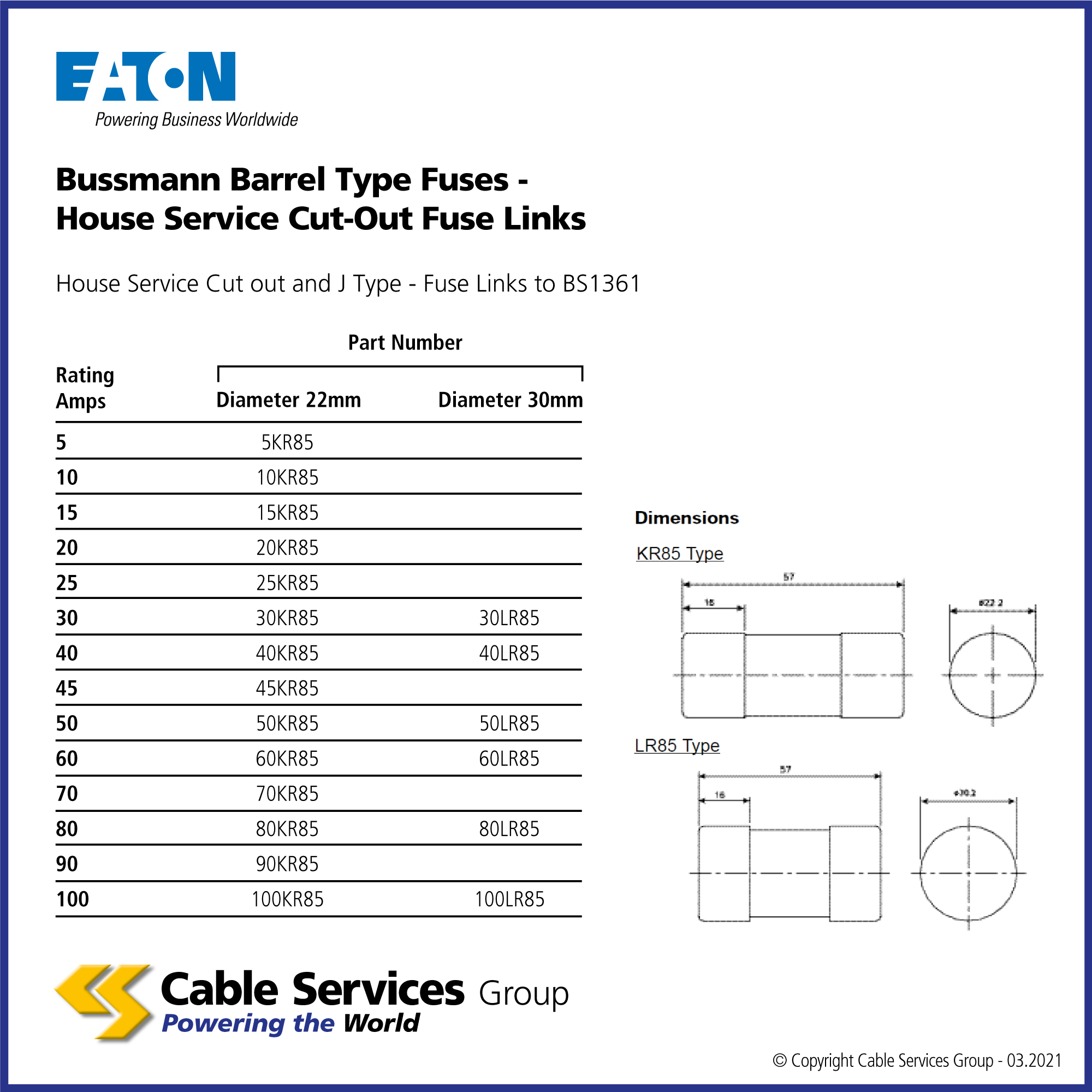

Selection Table

Data Sheets

Download Data Sheet

ReferenceName
60KR8560amps rating, 22mm diameter
100LR85100amps rating, 30mm diameter
80LR8580amps rating, 30mm diameter
60LR8560amps rating, 30mm diameter
50LR8550amps rating, 30mm diameter
40LR8540amps rating, 30mm diameter
30LR8530amps rating, 30mm diameter

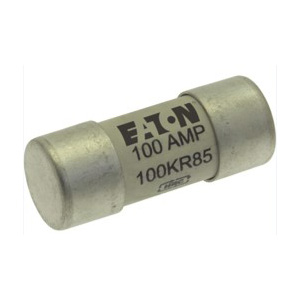

100KR85100amps rating, 22mm diameter
90KR8590amps rating, 22mm diameter
80KR8580amps rating, 22mm diameter
70KR8570amps rating, 22mm diameter
1010AA5amps rating,
50KR8550amps rating, 22mm diameter
45KR8545amps rating, 22mm diameter
40KR8540amps rating, 22mm diameter
30KR8530amps rating, 22mm diameter
25KR8525amps rating, 22mm diameter
20KR8520amps rating, 22mm diameter
15KR8515amps rating, 22mm diameter
10KR8510amps rating, 22mm diameter
5KR855amps rating, 22mm diameter
