Cembre LV Copper Through Connector

£0.00

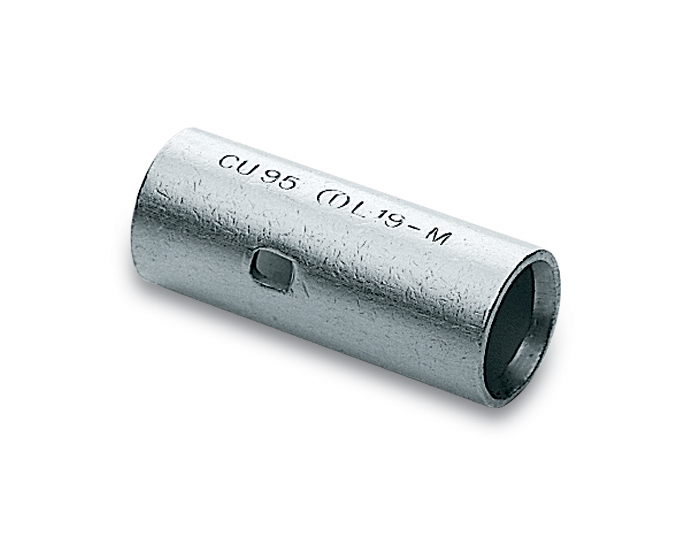

L-M range of connectors are designed for jointing low voltage conductors. Made of electrolytic copper tube having the same dimensions as A-M series lugs: L-M connectors are annealed and electrolytically tin plated. They feature an internal taper at both ends to ease the introduction of the conductor and a central stop to ensure correct positioning.

Clear
Category:

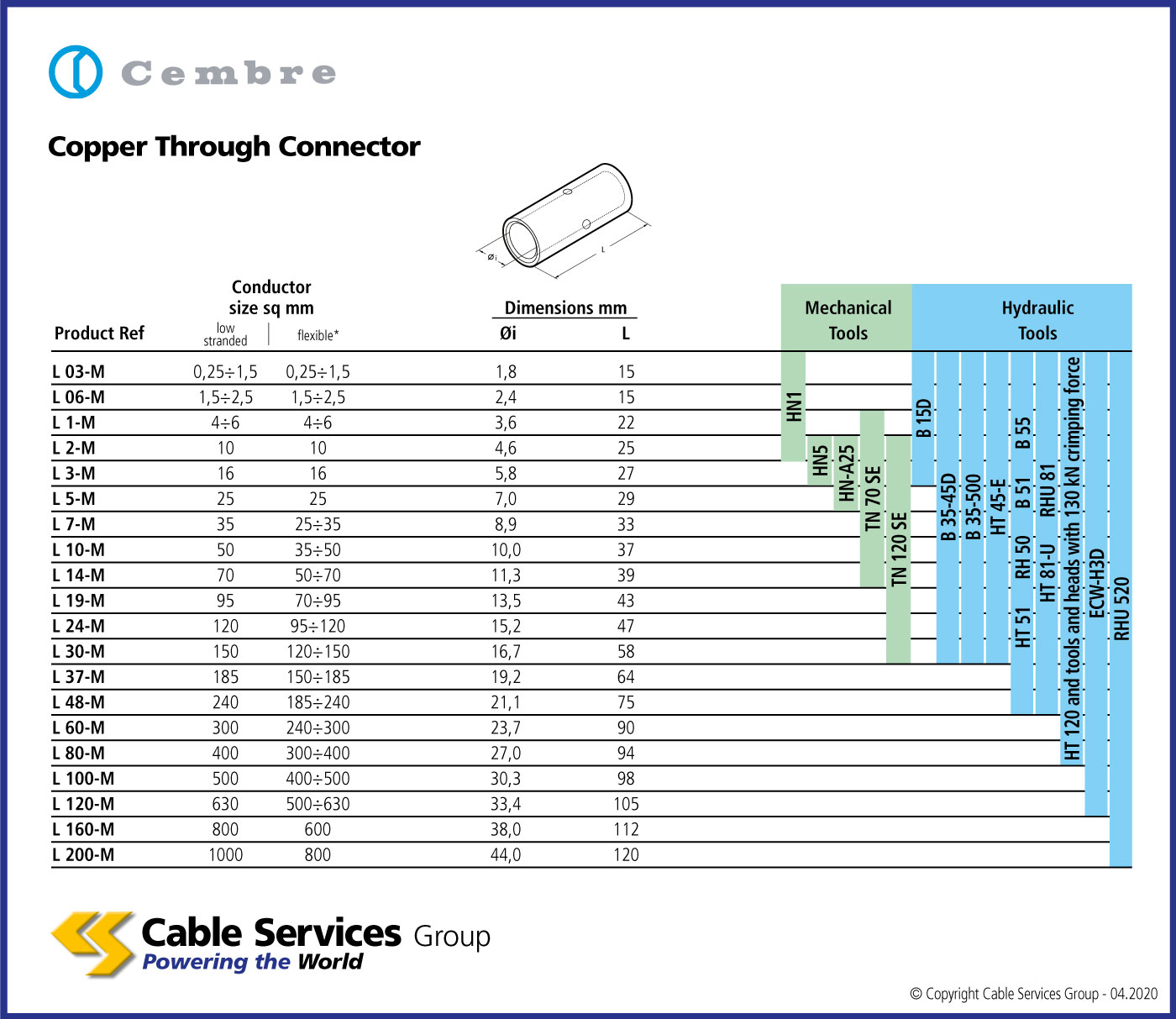

Selection Table

Data Sheets

Download Data Sheet

ReferenceName
L24M120mm2 conductor conductor size
L200M1000mm2 conductor conductor size
L160M800mm2 conductor conductor size
L120M630mm2 conductor conductor size
L100M500mm2 conductor conductor size
L80M400mm2 conductor conductor size
L60M300mm2 conductor conductor size
L48M240mm2 conductor conductor size
L37M185mm2 conductor conductor size
L30M150mm2 conductor conductor size
L03M0.25 - 1.5mm2 conductor conductor size
L19M95mm2 conductor conductor size
L14M70mm2 conductor conductor size
L10M50mm2 conductor conductor size
L7M35mm2 conductor conductor size
L5M25mm2 conductor conductor size
L3M16mm2 conductor conductor size
L2M10mm2 conductor conductor size
L1M4 - 6mm2 conductor conductor size
L06M1.5 - 2.5mm2 conductor conductor size
