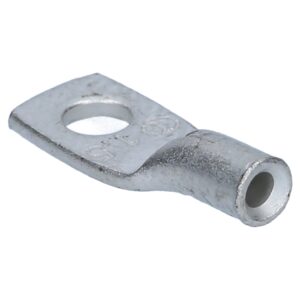

Cembre MV Copper Tube Crimping Lugs (Two Bolt Fixings)

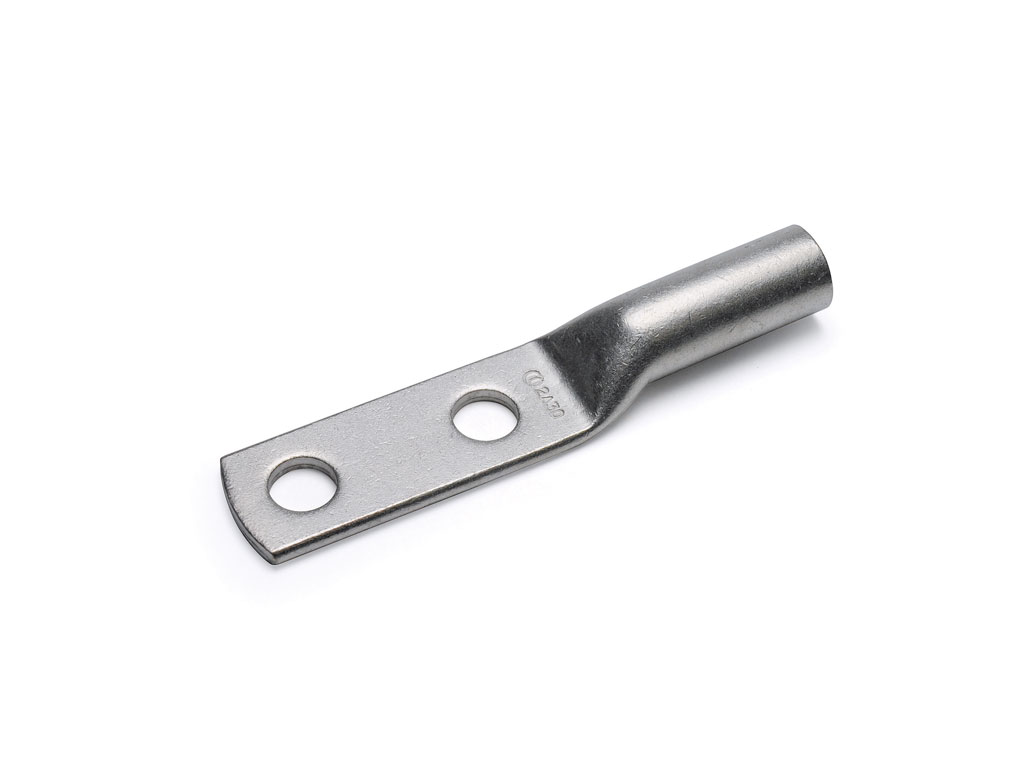

CA-2M Copper Tube Terminal Lugs are designed for high voltage applications up to 33kV. Manufactured from high purity copper tube, annealed and tin-plated. The extended barrel enhances electricaland mechanical performance. The absence of an inspectionhole preventsmoisture entry into the crimped joint. Featuring an extended palm with two fixing holes at 44.5mm centres.

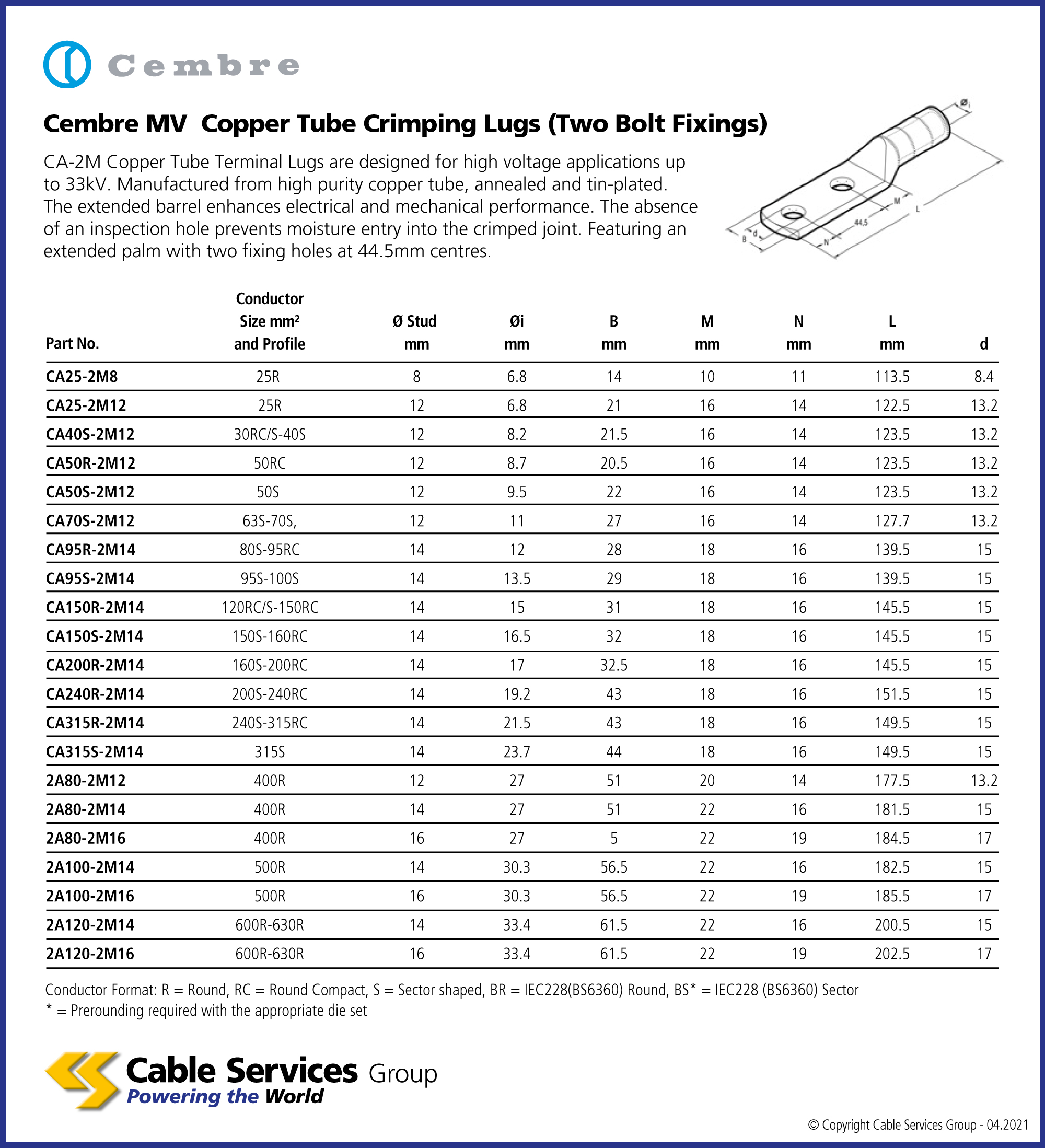

Data Sheets
| Reference | Name | |
|---|---|---|
| CA25-2M8 | 25mm2 conductor conductor size, 8mm fixing size | |
| CA25-2M12 | 25mm2 conductor conductor size, 12mm fixing size | |
| CA40S-2M12 | 40mm2 conductor conductor size, 12mm fixing size | |
| CA50R-2M12 | 50mm2 conductor conductor size, 12 Round Compactmm fixing size | |
| CA50S-2M12 | 50mm2 conductor conductor size, 12 Sector Shapedmm fixing size | |
| CA70S-2M12 | 70mm2 conductor conductor size, 12mm fixing size | |
| CA95R-2M14 | 95mm2 conductor conductor size, 14 / 12mm fixing size | |
| CA95S-2M14 | 95mm2 conductor conductor size, 14 / 13.5mm fixing size | |
| CA150R-2M14 | 150mm2 conductor conductor size, 14 / 15mm fixing size | |
| CA150S-2M14 | 150mm2 conductor conductor size, 14.16.5mm fixing size | |
| CA200R-2M14 | 200mm2 conductor conductor size, 14 / 17mm fixing size | |
| CA240R-2M14 | 240mm2 conductor conductor size, 14 / 19.2mm fixing size | |
| CA315R-2M14 | 315mm2 conductor conductor size, 14 / 21.5mm fixing size | |
| CA315S-2M14 | 315mm2 conductor conductor size, 14 / 23.7mm fixing size | |
| 2A80-2M12 | 400mm2 conductor conductor size, 12mm fixing size | |
| 2A80-2M14 | 400mm2 conductor conductor size, 14mm fixing size | |
| 2A80-2M16 | 400mm2 conductor conductor size, 16mm fixing size | |
| 2A100-2M14 | 500mm2 conductor conductor size, 14mm fixing size | |
| 2A100-2M16 | 500mm2 conductor conductor size, 16mm fixing size | |
| 2A120-2M14 | 600mm2 conductor conductor size, 14mm fixing size | |
| 2A120-2M16 | 600mm2 conductor conductor size, 16mm fixing size |
