Selection Table
CMP Earth Tags
Accessories for cable glands, available in brass,aluminium and nickel plated brass

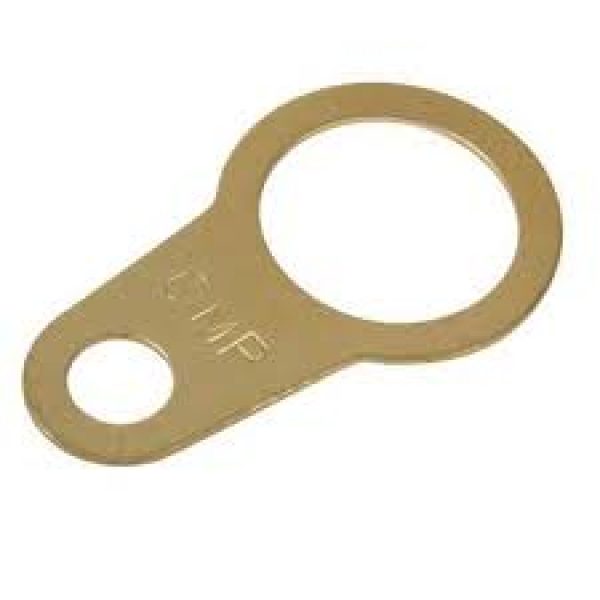

An earth tag fits over the entry thread of a cable gland to provide an earth bonding point for the cable armour. CMP cable gland earth tags are available in brass, aluminium and nickel plated brass.
Data Sheets

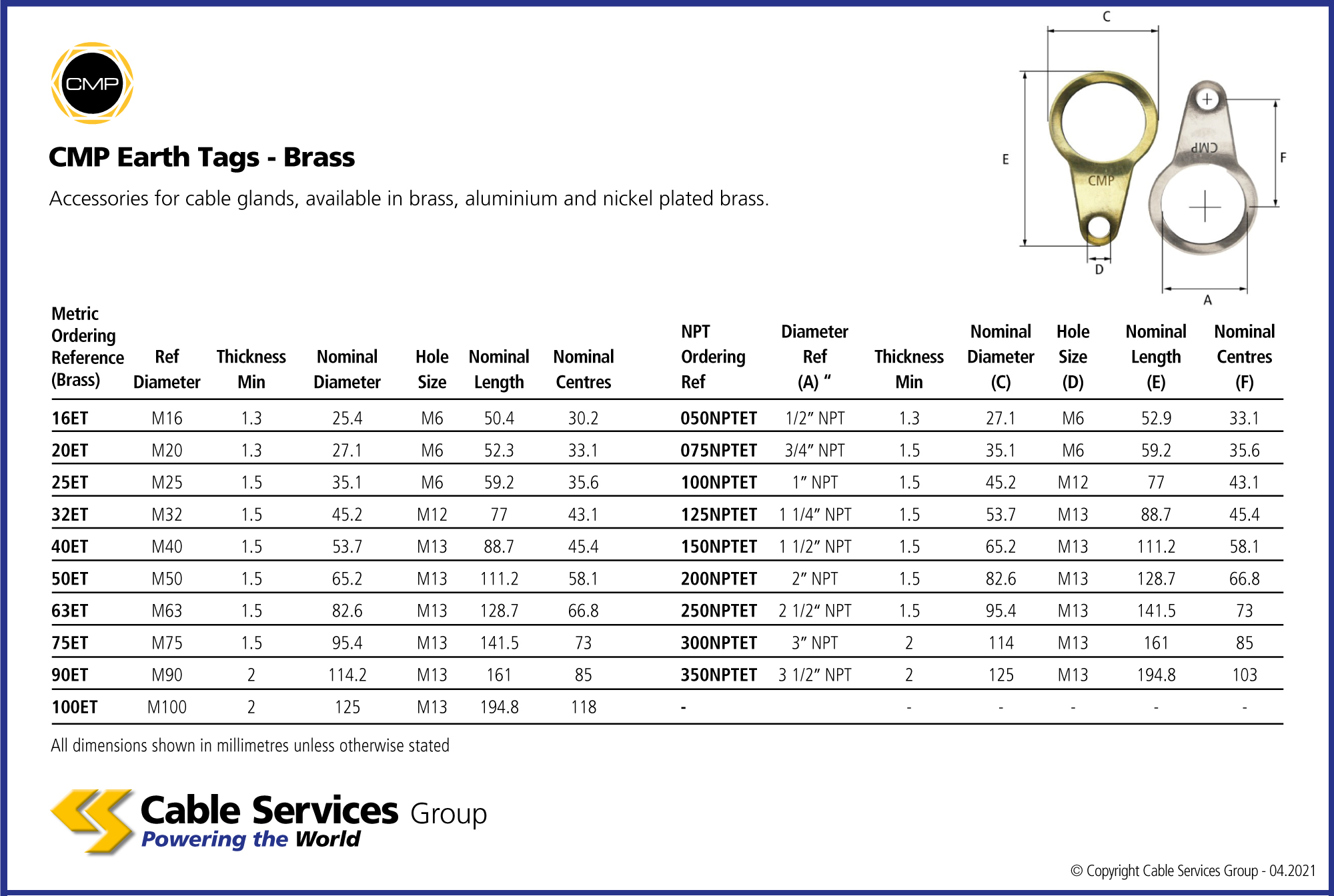

| Reference | Name | |
|---|---|---|
| 16ET | 16mm conductor size | |
| 20ET | 20mm conductor size | |
| 25ET | 25mm conductor size | |
| 32ET | 32mm conductor size | |
| 40ET | 40mm conductor size | |
| 50ET | 50mm conductor size | |
| 63ET | 63mm conductor size | |
| 75ET | 75mm conductor size | |
| 90ET | 90mm conductor size | |
| 100ET | 100mm conductor size |
