Selection Table

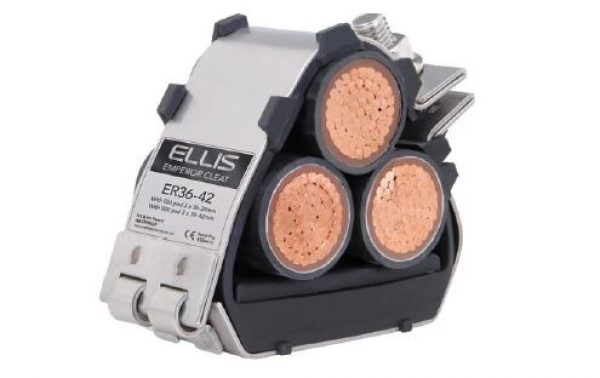

Ellis Patents Emperor ™ Trefoil Stainless Steel Cable Cleats
Heavy Duty Compact Stainless Steel Cable Cleat, for cables in single or trefoil formation.
Compare trefoil, single and quad options in our guide to cable cleat types and sizes.

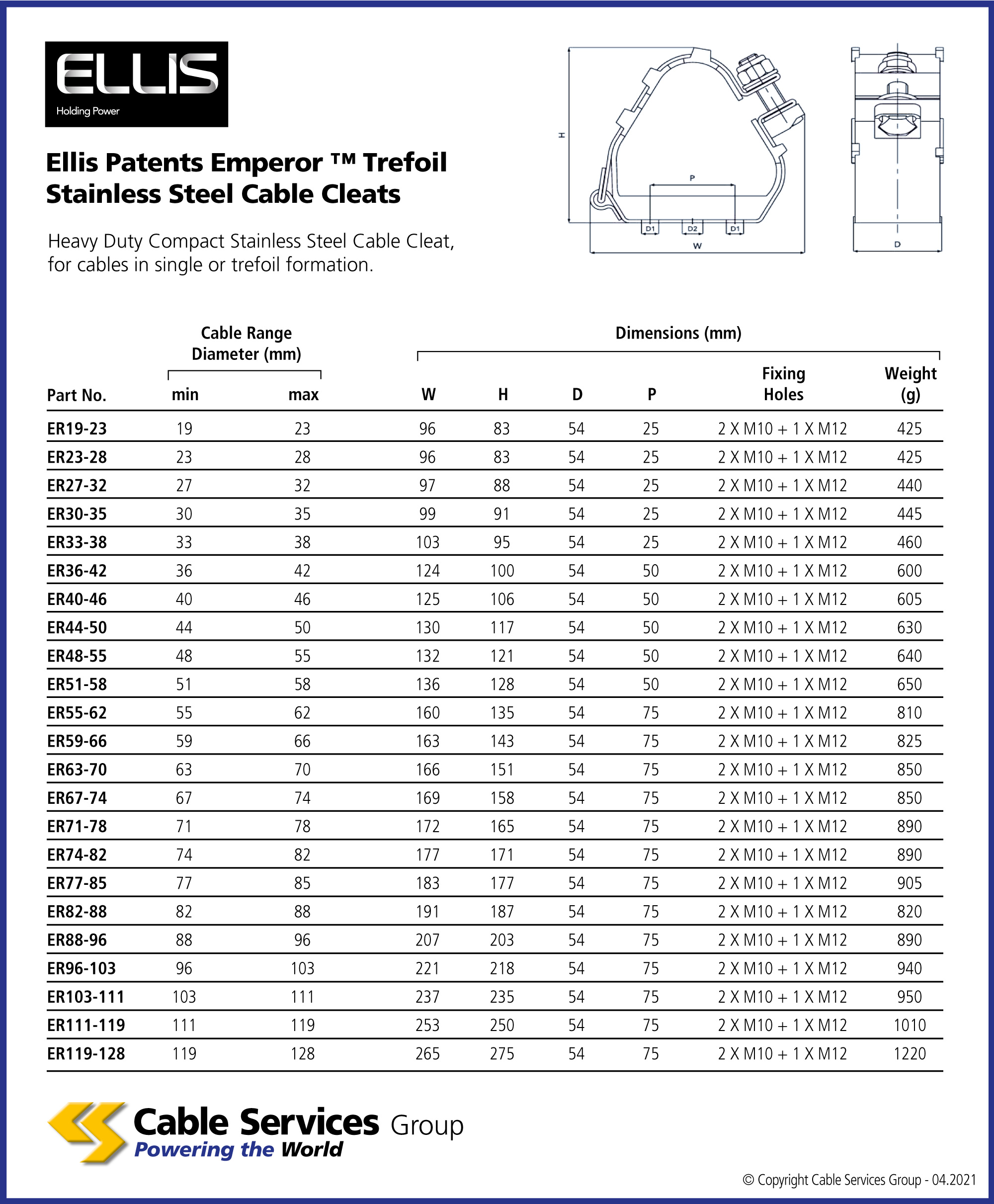

Data Sheets
| Reference | Name | |
|---|---|---|
| ER19-23 | 19 - 23mm cable sizing | |
| ER23-28 | 23 - 28mm cable sizing | |
| 1003M | 23 - 28mm cable sizing | |
| ER27-32 | 27 - 32mm cable sizing | |
| ER30-35 | 30 - 35mm cable sizing | |
| ER33-38 | 33 - 38mm cable sizing | |
| ER36-42 | 36 - 42mm cable sizing | |
| ER40-46 | 40 - 46mm cable sizing | |
| ER44-50 | 44 - 50mm cable sizing | |
| ER48-55 | 48 - 55mm cable sizing | |
| ER51-58 | 51 - 58mm cable sizing | |
| ER55-62 | 55 - 62mm cable sizing | |
| ER59-66 | 59 - 66mm cable sizing | |
| ER63-70 | 63 - 70mm cable sizing | |
| ER67-74 | 67 - 74mm cable sizing | |
| ER71-78 | 71 - 78mm cable sizing | |
| ER74-82 | 74 - 82mm cable sizing | |
| ER77-85 | 77 - 85mm cable sizing | |
| ER82-88 | 82 - 88mm cable sizing | |
| ER88-96 | 88 - 96mm cable sizing | |
| ER96-103 | 96 - 103mm cable sizing | |
| ER103-111 | 103 - 111mm cable sizing | |
| ER111-119 | 111 - 119mm cable sizing | |
| ER119-128 | 119 - 128mm cable sizing |
