Selection Table
Furse Earth Bar without Disconnecting Link
Furse earth bars have a plastic channel base that is entirely corrosion proof, made from high impact uPVC unlike the traditional galvanized steel channel. The use of a modern polymer channel has also reduced the weight of these earth bars, making them lighter and easier to handle. Available as bare copper or tinned copper hard drawn bar. Pre-drilled fixing holes for ease of installation. Swan-Neck accessory available to facilitate the main earth bar connection. Standard height 90 mm, standard depth 77 mm. Tightening torque 20 Nm. Fix using countersunk wood screws 1½” No. 12 (Part no. SW110) and wall plugs (Part no. PS310).
Data Sheets

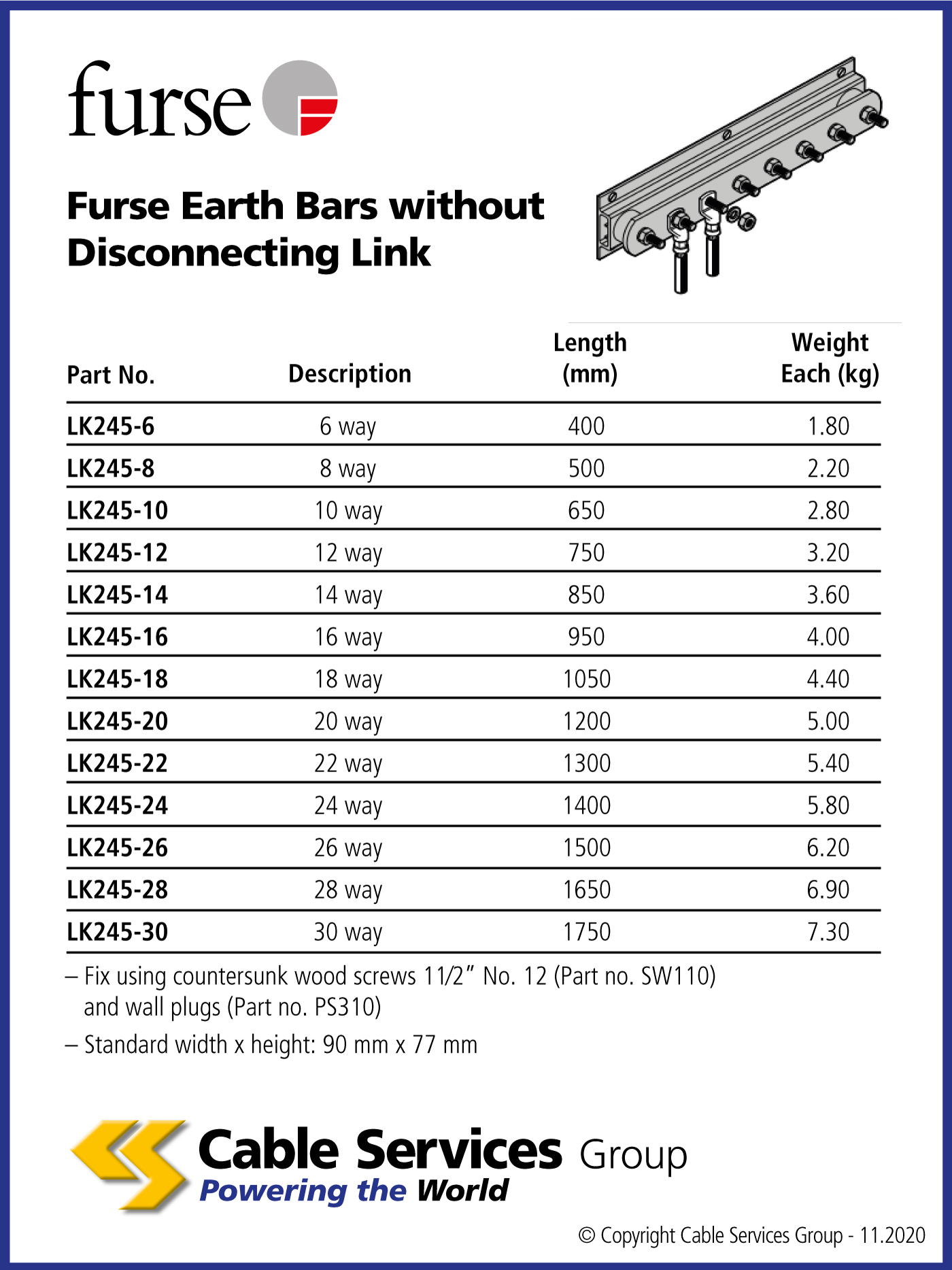

| Reference | Name | |
|---|---|---|
| LK245 | 400mm size, 6 way fixing type | |
| LK245-8 | 500mm size, 8 way fixing type | |
| LK245-10 | 650mm size, 10 way fixing type | |
| LK245-12 | 750mm size, 12 way fixing type | |
| LK245-14 | 850mm size, 14 way fixing type | |
| LK245-16 | 950mm size, 16 way fixing type | |
| LK245-18 | 1050mm size, 18 way fixing type | |
| LK245-20 | 1200mm size, 20 way fixing type | |
| LK245-22 | 1300mm size, 22 way fixing type | |
| LK245-24 | 1400mm size, 24 way fixing type | |
| LK245-26 | 1500mm size, 26 way fixing type | |
| LK245-28 | 1650mm size, 28 way fixing type | |
| LK245-30 | 1750mm size, 30 way fixing type |
