Lucy Zodion Titan 2 Single and Double Pole Cutouts & Gland Plates

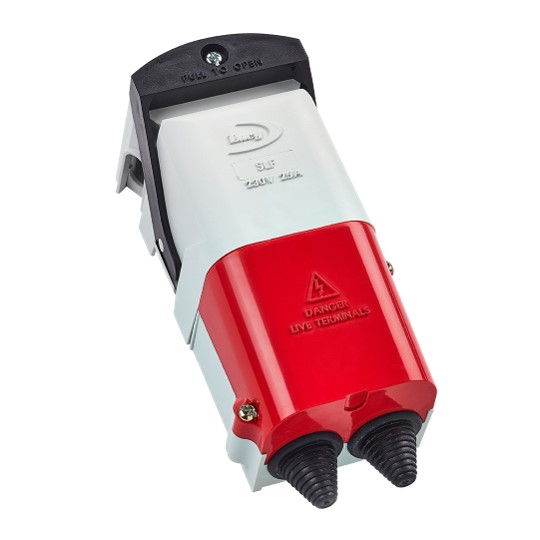

Lucy Zodion’s Titan range of street lighting cut outs has been designed and tested to meet BS 7654 and manufactured with high quality engineering thermoplastics. Complete with earth blocks, Titan cut outs are available with extension troughs, brass gland plates, grommets, holes and tubes to meet a wide range of configuration requirements.

Category:

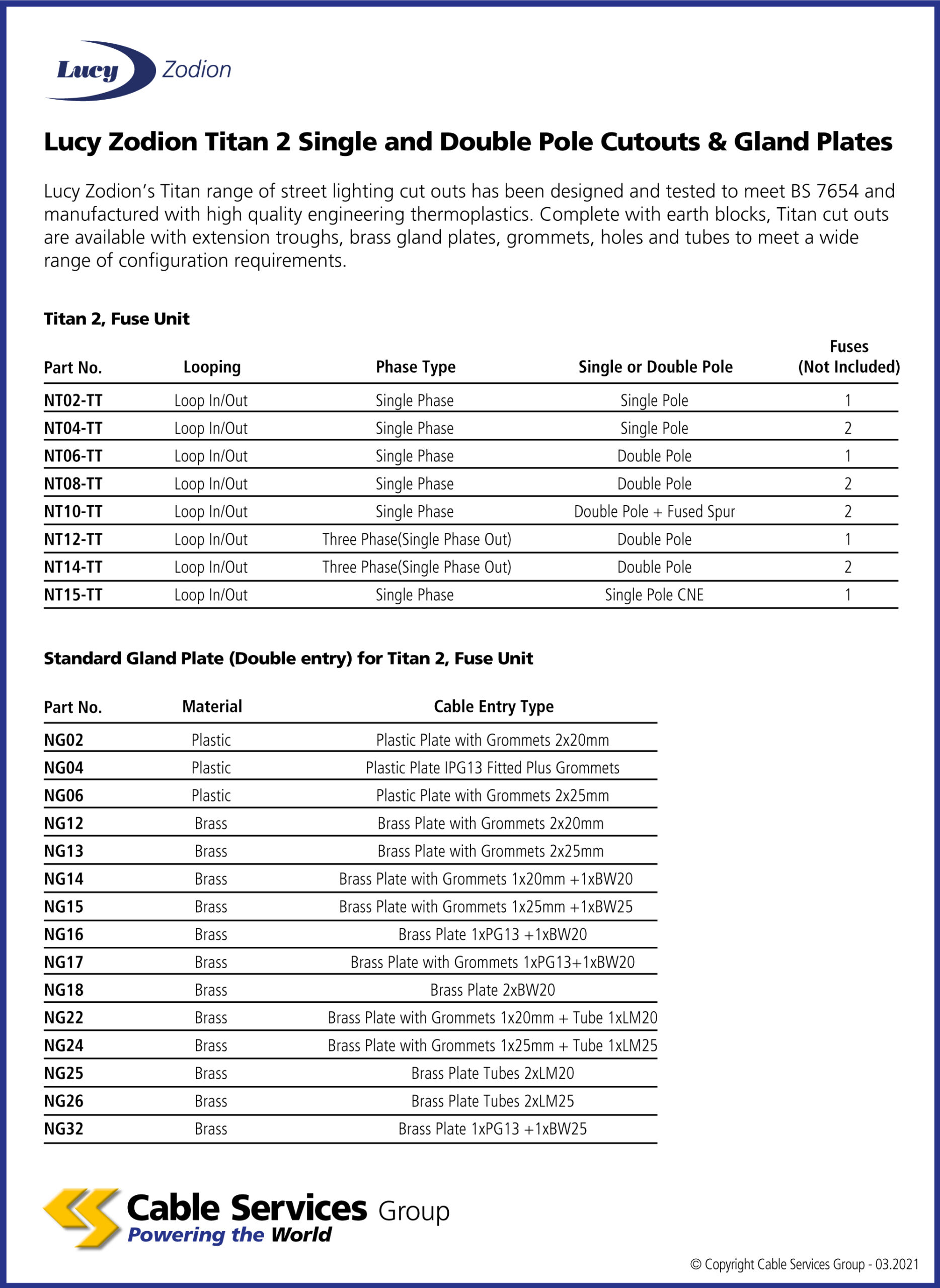

Selection Table

Data Sheets

Download Data Sheet

ReferenceName
NT02-TTSingle Pole variant, 1 fuse (not included) size
NT04-TTSingle Pole variant, 2 fuses (not included) size
NT06-TTDouble Pole variant, 1 fuse (not included) size
NT08-TTDouble Pole variant, 2 fuses (not included) size
NT10-TTDouble Pole + Fused Spur variant, 2 fuses (not included) size
NT12-TTDouble Pole variant, 1 fuse (not included) size
NT14-TTDouble Pole variant, 2 fuses (not included) size
NT15-TTSingle Pole CNE variant, 1 fuse (not included) size
NG02Plastic Plate with Grommets 2x20mm variant,
NG04Plastic Plate IPG13 Fitted Plus Grommets variant,
NG06Plastic Plate with Grommets 2x25mm variant,
NG12Brass Plate with Grommets 2x20mm variant,
NG13Brass Plate with Grommets 2x25mm variant,
NG14Brass Plate with Grommets 1x20mm +1xBW20 variant,
NG15Brass Plate with Grommets 1x25mm +1xBW25 variant,
NG16Brass Plate 1xPG13 +1xBW20 variant,
NG17Brass Plate with Grommets 1xPG13+1xBW20 variant,
NG18Brass Plate 2xBW20 variant,
NG22Brass Plate with Grommets 1x20mm + Tube 1xLM20 variant,
NG24Brass Plate with Grommets 1x25mm + Tube 1xLM25 variant,
NG25Brass Plate Tubes 2xLM20 variant,
NG26Brass Plate Tubes 2xLM25 variant,
NG32Brass Plate 1xPG13 +1xBW25 variant,
