Selection Table

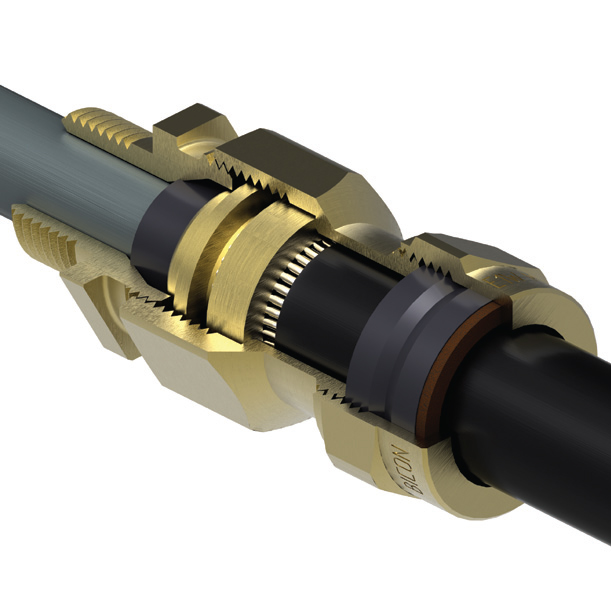

Prysmian Bicon E1W Gland Kit (with PCP Shroud)
Outdoor Wet Area Gland Kit. Suitable for use with all steel wire armoured cables. The KA413 Series kit comprises of : E1W Gland , Brass Earth Tag, Brass Locknut and PCP Shroud. (2 per kit up to and including 25mm size)

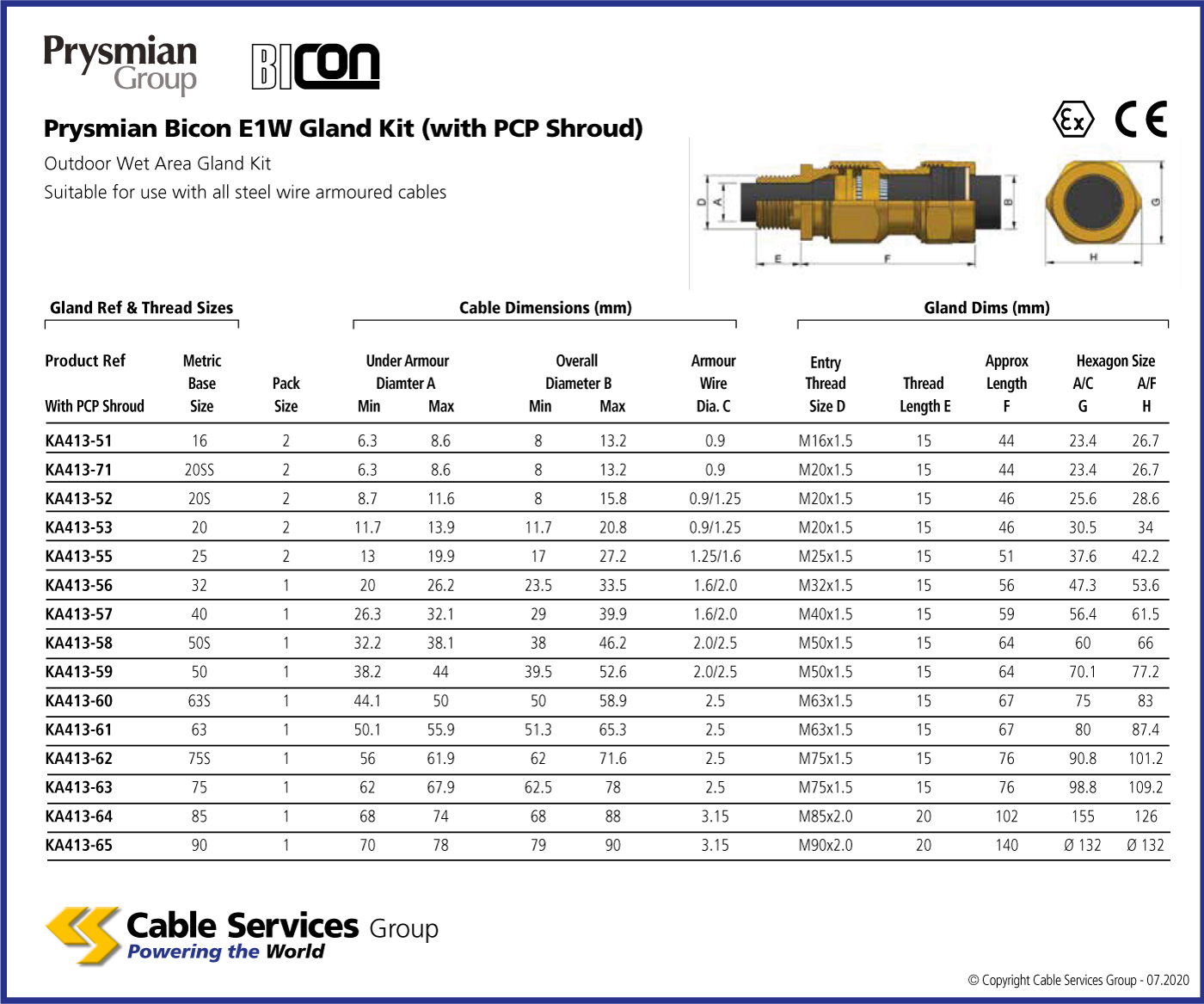

Data Sheets
| Reference | Name | |
|---|---|---|
| KA413-51 | 16mm conductor size | |
| KA413-71 | 20SSmm conductor size | |
| KA413-52 | 20Smm conductor size | |
| KA413-53 | 20mm conductor size | |
| KA413-55 | 25mm conductor size | |
| KA413-56 | 32mm conductor size | |
| KA413-57 | 40mm conductor size | |
| KA413-58 | 50Smm conductor size | |
| KA413-59 | 50mm conductor size | |
| KA413-60 | 63Smm conductor size | |
| KA413-61 | 63mm conductor size | |
| KA413-62 | 75Smm conductor size | |
| KA413-63 | 75mm conductor size | |
| KA413-64 | 85mm conductor size | |
| KA413-65 | 90mm conductor size |
