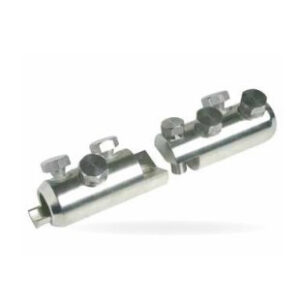

TE Connectivity BSM Medium Voltage Mechanical Connectors

TE Connectivity’s (TE) mechanical connectors are designed for use in low and medium voltage applications.

Category:

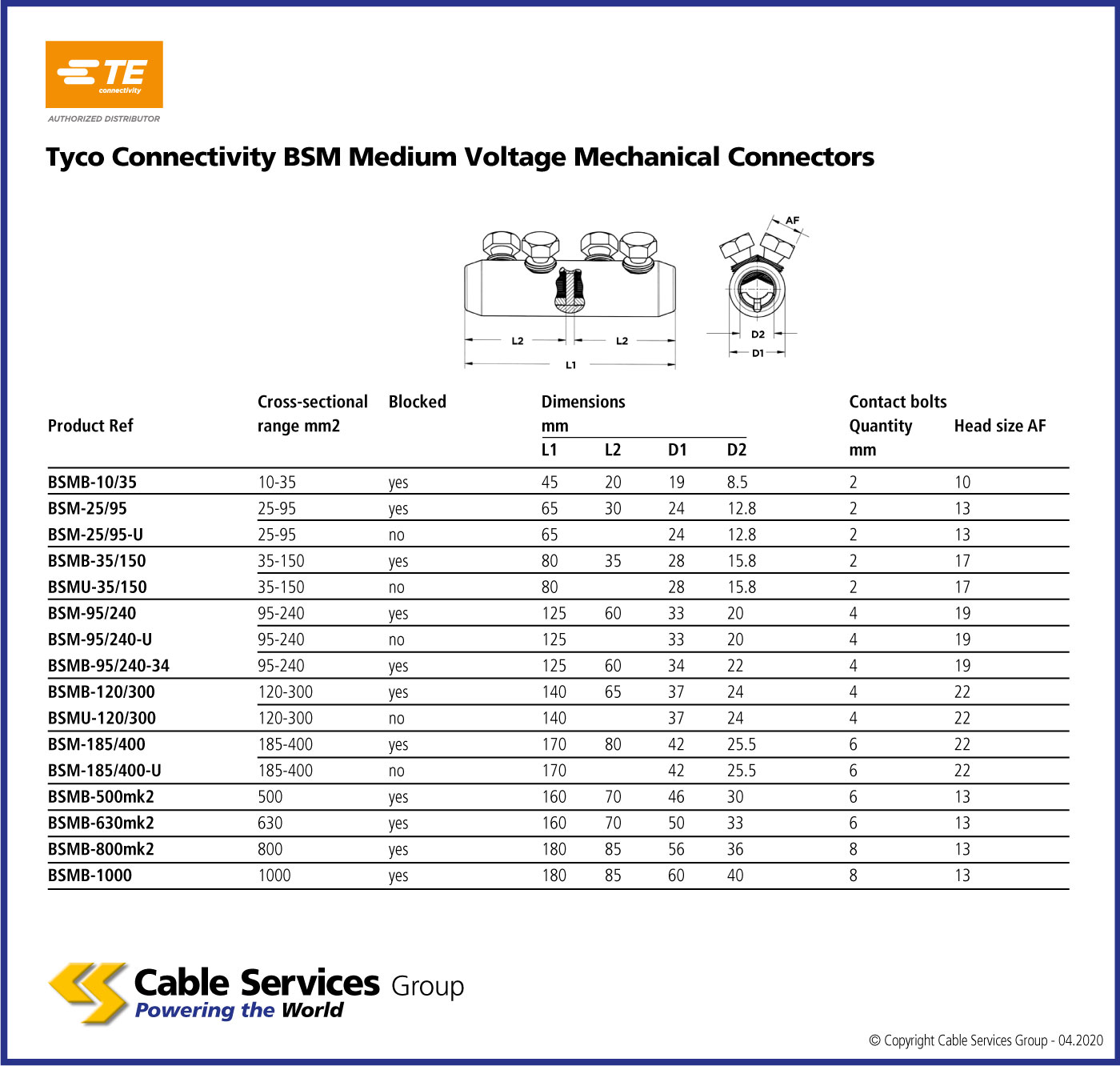

Selection Table

Data Sheet

Download Data Sheet

Reference Name
BSMB10/35 10 - 35mm2 conductor conductor size, 20mm2 fixing size
BSM25/95 25 - 95mm2 conductor conductor size, 30mm2 fixing size
BSM25/95-U 25 - 95mm2 conductor conductor size,
BSMB35/150 35 - 150mm2 conductor conductor size, 35mm2 fixing size
BSMU35/150 35 - 150mm2 conductor conductor size,
BSM95/240 95 - 240mm2 conductor conductor size, 60mm2 fixing size
BSM95/240-U 95 - 240mm2 conductor conductor size,
BSMB95/300-GB 95 - 300mm2 conductor conductor size, 60mm2 fixing size
BSMB120/300 120 - 300mm2 conductor conductor size, 65mm2 fixing size
BSMU120/300 120 - 300mm2 conductor conductor size,
BSMB150/400 150 - 400mm2 conductor conductor size, 80mm2 fixing size
BSMU150/400 150 - 400mm2 conductor conductor size,
BSMB500MK2 500mm2 conductor conductor size, 70mm2 fixing size
BSMB630 MK2 630mm2 conductor conductor size, 70mm2 fixing size
BSMB800 MK2 800mm2 conductor conductor size, 85mm2 fixing size
BSMB1000 1000mm2 conductor conductor size, 85mm2 fixing size
