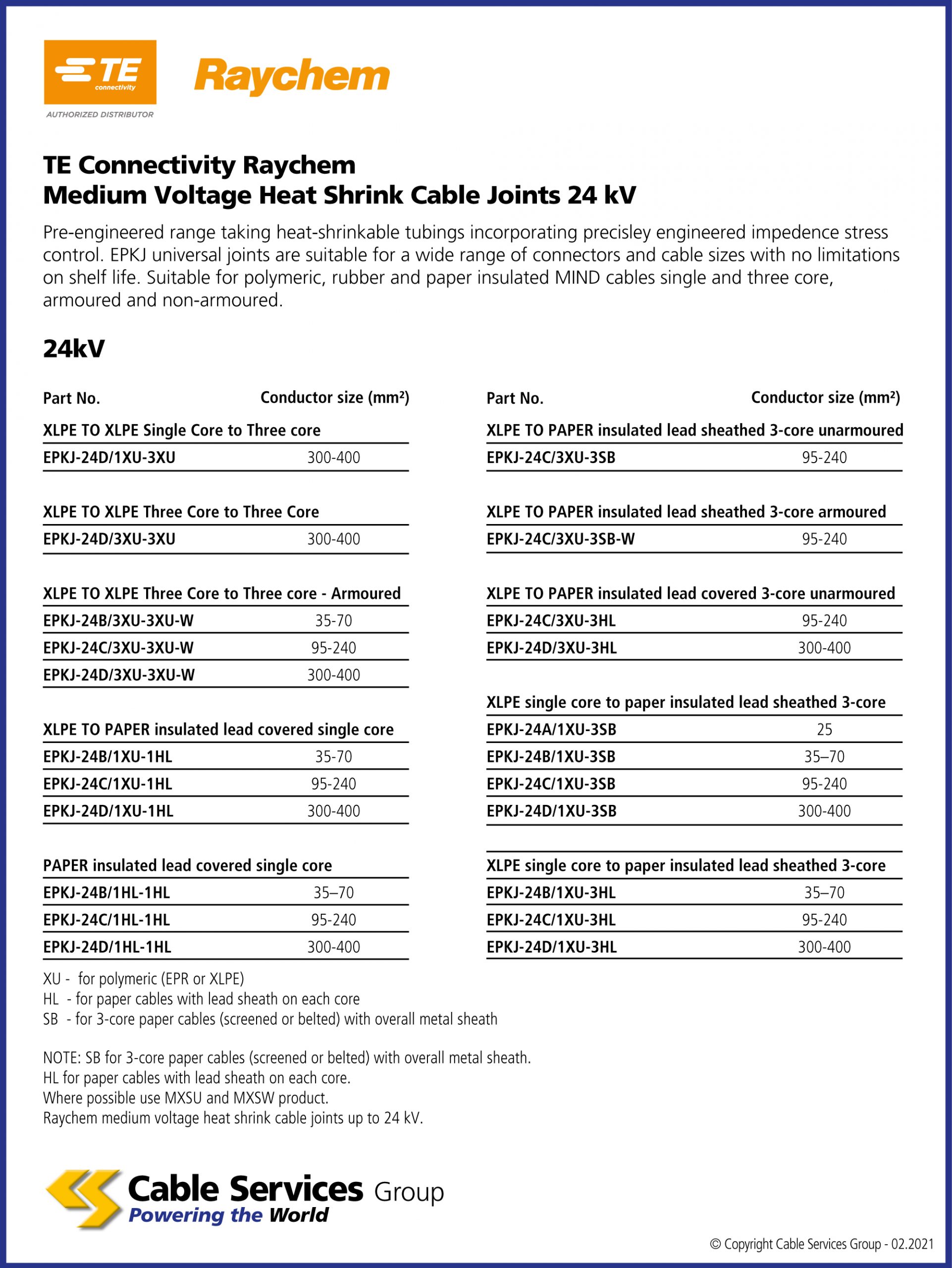

Selection Table

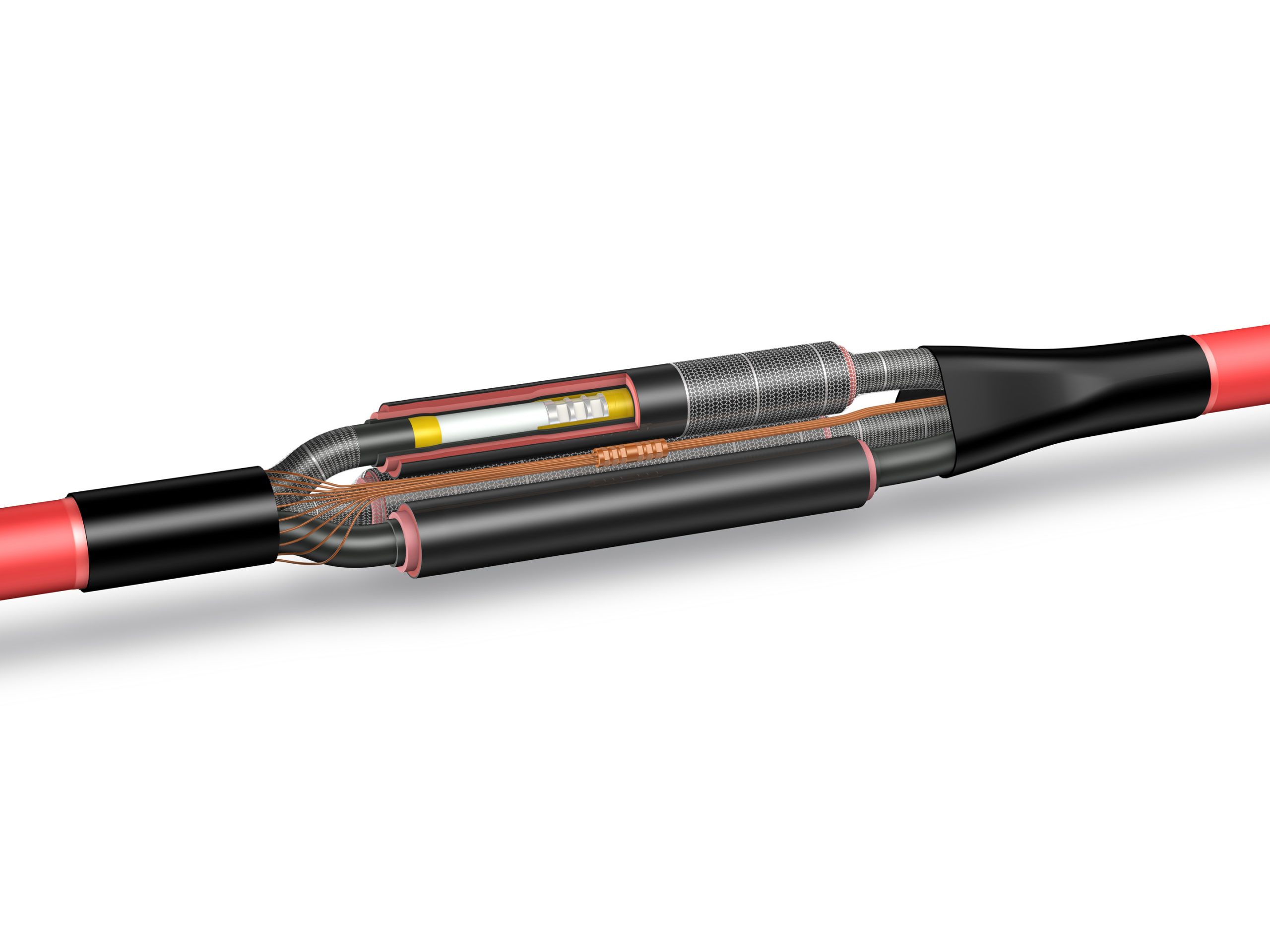

TE Connectivity Raychem Medium Voltage Heat Shrink Cable Joints up to 24 kV
Pre-engineered range taking heat-shrinkable tubings incorporating precisley engineered impedence stress control. EPKJ universal joints are suitable for a wide range of connectors and cable sizes with no limitations on shelf life. Suitable for polymeric, rubber and paper insulated MIND cables single and three core, armoured and non-armoured
Data Sheets
| Reference | Name | |
|---|---|---|
| EPKJ24C3XU-3SB | 95-240mm2 cable connector size, XLPE TO PAPER insulated lead sheathed 3-core unarmoured size type | |
| EPKJ24D1XU-3HL | 300-400mm2 cable connector size, XLPE Single Core to Paper Insulated Lead Sheathed 3-Core size type | |
| EPKJ24C1XU-3HL | 95-240mm2 cable connector size, XLPE Single Core to Paper Insulated Lead Sheathed 3-Core size type | |
| EPKJ24B1XU-3HL | , XLPE Single Core to Paper Insulated Lead Sheathed 3-Core size type | |
| EPKJ24D1XU-3SB | 300-400mm2 cable connector size, XLPE Single Core to Paper Insulated Lead Sheathed 3-Core size type | |
| EPKJ24C1XU-3SB | 95-240mm2 cable connector size, XLPE Single Core to Paper Insulated Lead Sheathed 3-Core size type | |
| EPKJ24B1XU-3SB | , XLPE Single Core to Paper Insulated Lead Sheathed 3-Core size type | |
| EPKJ24A1XU-3SB | 25mm2 cable connector size, XLPE Single Core to Paper Insulated Lead Sheathed 3-Core size type | |
| EPKJ24D3XU-3HL | 300-400mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered 3-core Unarmoured size type | |
| EPKJ24C3XU-3HL | 95-240mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered 3-core Unarmoured size type | |
| EPKJ24C3XU-3SB-W | 95-240mm2 cable connector size, XLPE TO PAPER Insulated Lead Sheathed 3-core Armoured size type | |
| EPKJ24D1XU-3XU | 300-400mm2 cable connector size, XLPE TO XLPE Single Core to Three core size type | |
| EPKJ24D1HL-1HL | 300-400mm2 cable connector size, PAPER Insulated Lead Covered Single Core size type | |
| EPKJ24C1HL-1HL | 95-240mm2 cable connector size, PAPER Insulated Lead Covered Single Core size type | |
| EPKJ24B1HL-1HL | , PAPER Insulated Lead Covered Single Core size type | |
| EPKJ24D1XU-1HL | 300-400mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered Single Core size type | |
| EPKJ24C1XU-1HL | 95-240mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered Single Core size type | |
| EPKJ24B1XU-1HL | , XLPE TO PAPER Insulated Lead Covered Single Core size type | |
| EPKJ24D3XU-3XU-W | 300-400mm2 cable connector size, | |
| EPKJ24C3XU-3XU-W | 95-240mm2 cable connector size, | |
| EPK24B3XU-3XU-W | , | |
| EPKJ24D3XU-3XU | 300-400mm2 cable connector size, XLPE TO XLPE Three Core to Three core size type |
