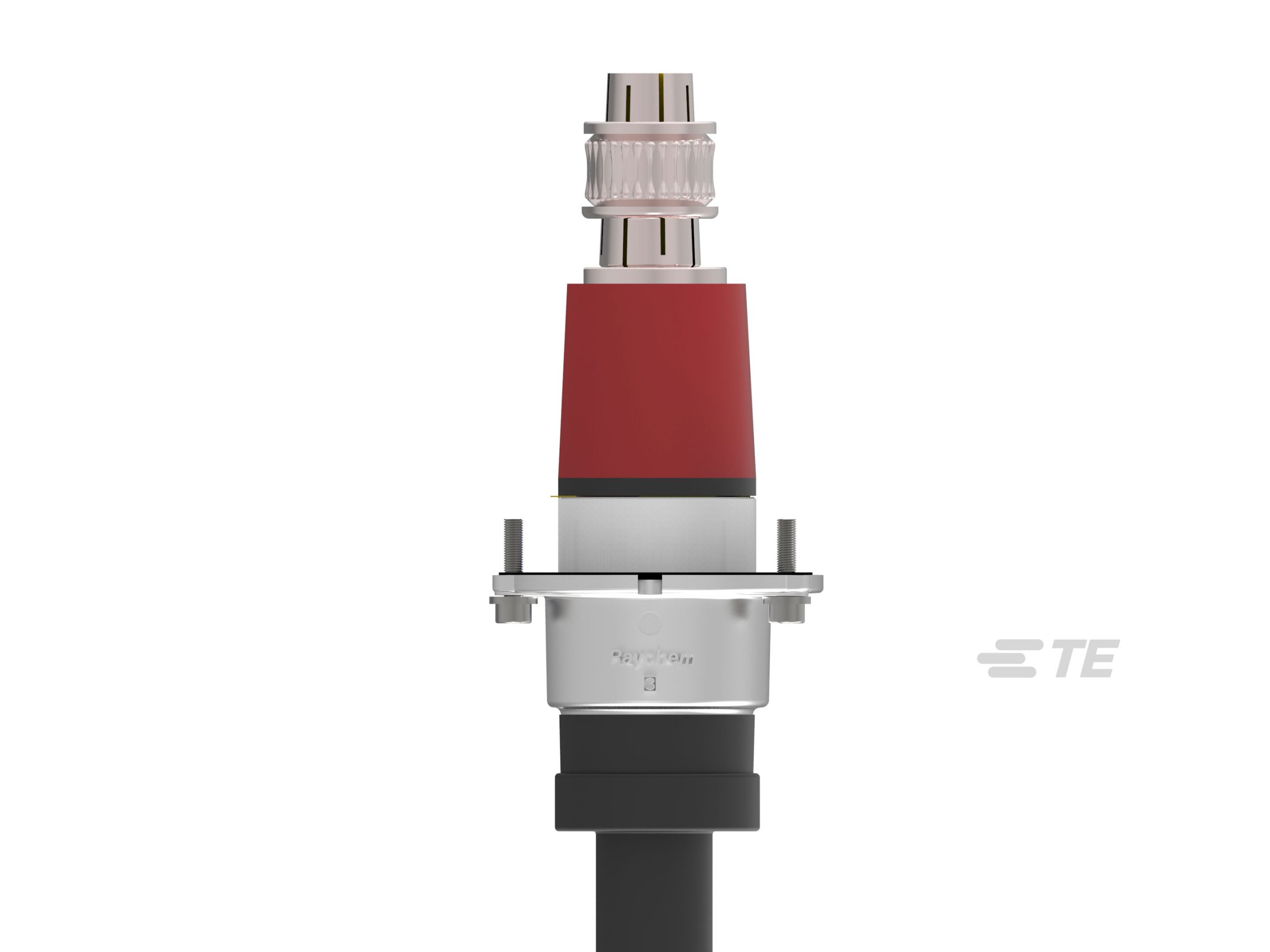

TE Connectivity Raychem Plug-In Terminations RPIT Size 3 1250A 12kV

TE Connectivity’s (TE) Raychem Plug-In Terminations RPIT separable connectors are designed for both aluminum or copper conductors in accordance with IEC 60228 and are compatible with inner cone bushings size 2 (800 A) and size 3 (1250 A) as per EN 50180/EN 50181. TE’s Raychem RPIT are available for system voltages from 12 kV up to 52 kV for any type of cable and are compliant with CENELEC HD 629.1.S2:2006- A1:2008 (up to 42 kV) and IEC 60840 (52 kV). In addition, TE’s Raychem RPIT can be customized with an optional voltage detection point and a special material composition for harsh environments.

Category:

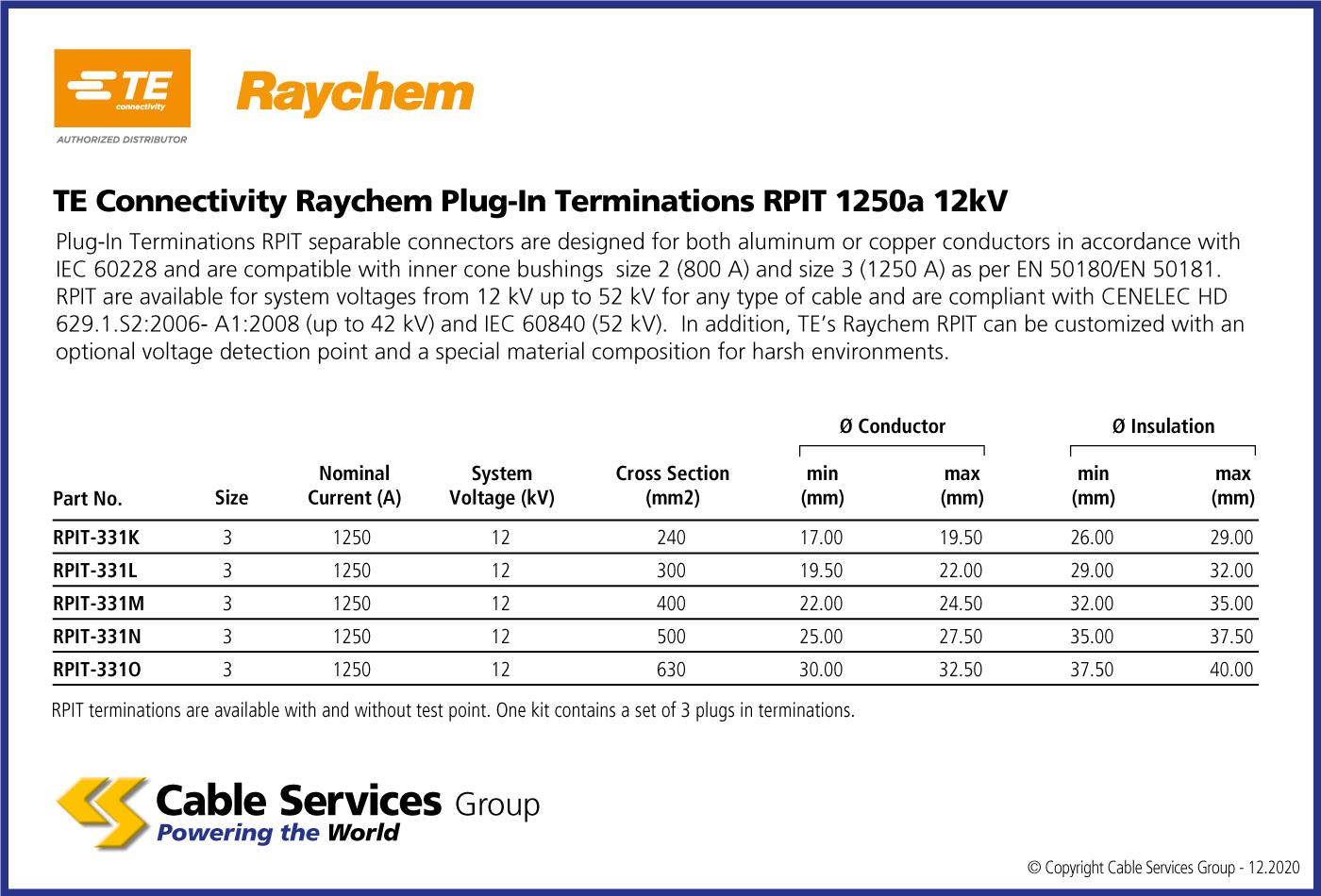

Selection Table

Data Sheets

Download Data Sheet

Reference Name
RPIT-331K-CS 240mm2 cross section
RPIT-331L-CS 300mm2 cross section
RPIT-331M-CS 400mm2 cross section
RPIT-331N-CS 500mm2 cross section
RPIT-331O-CS 630mm2 cross section
