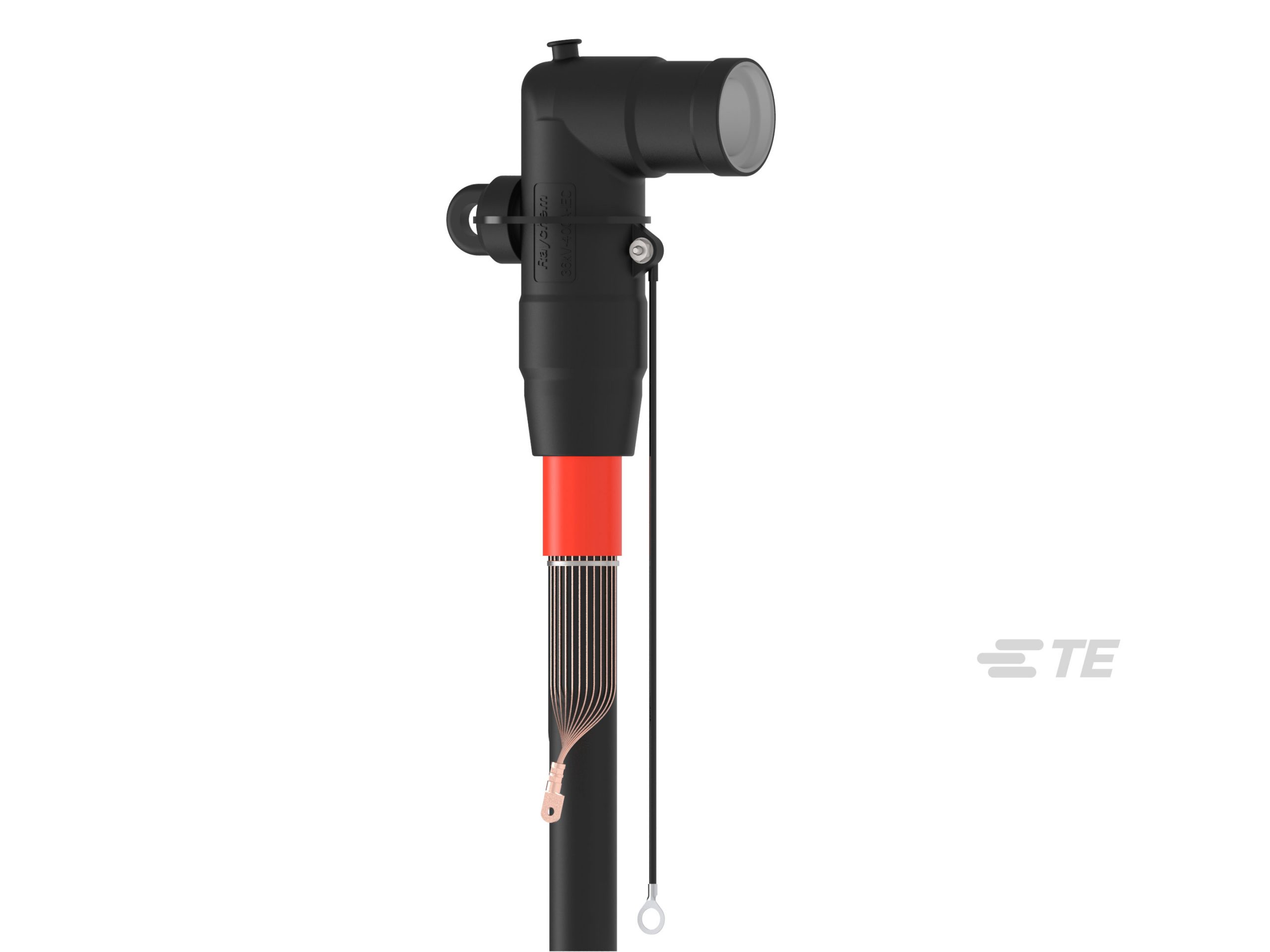

TE Connectivity Raychem Screened, separable elbow connection system RSES Type B 400A for 36kV

Raychem RSES screened, separable elbow connectors are designed to connect single- and three-core polymeric cables to medium-voltage gas-insu la ted switchgear and other equipment using CENELEC bushings Type “B” specified for 400 A up to 36 kV.

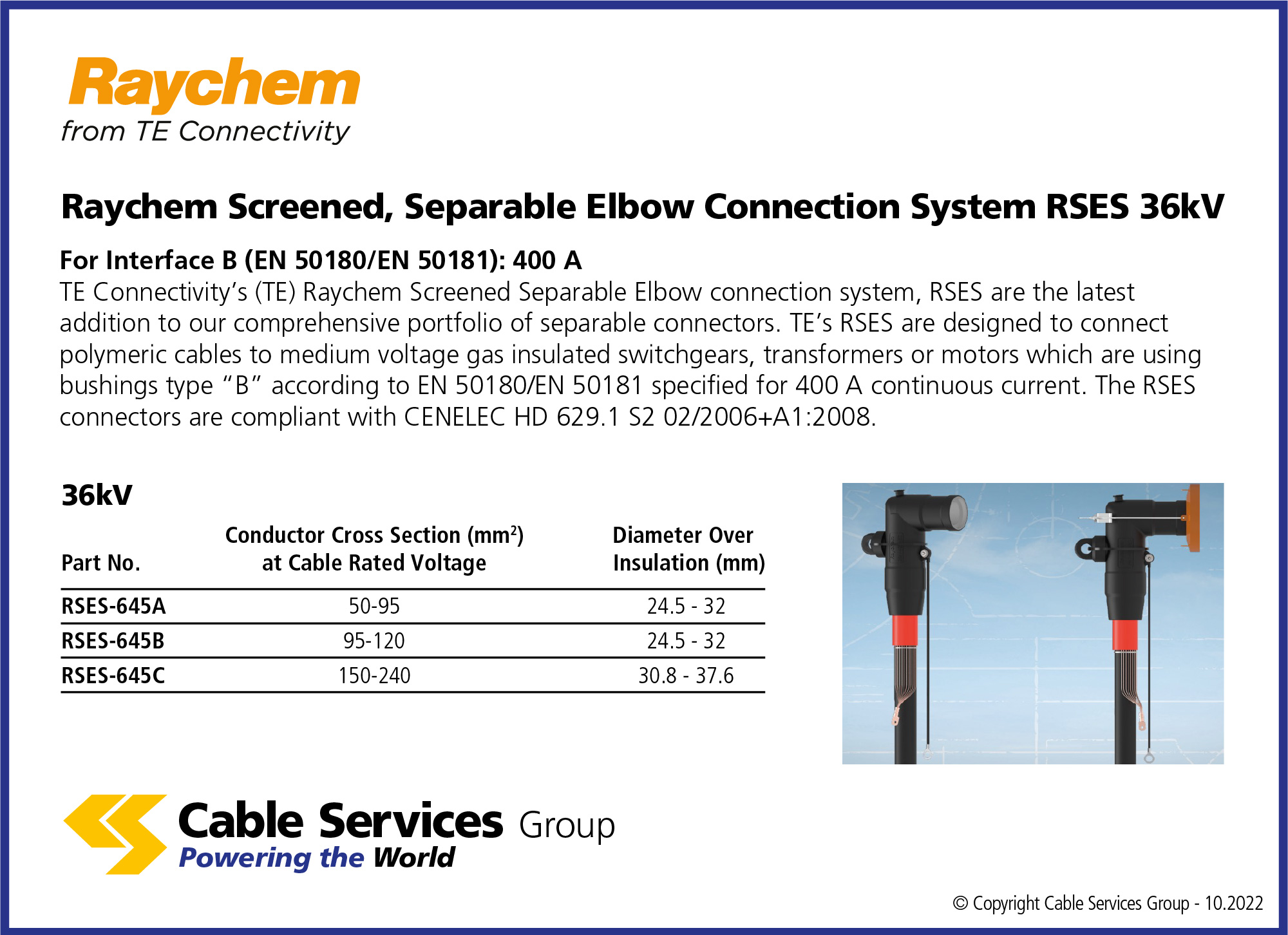

Selection Table

Data Sheets

Download Data Sheet

Reference Name
RSES-645A 50-95mm2 cross section, 36kV type
RSES-645B 95-120mm2 cross section, 36kV type
RSES-645C 150-240mm2 cross section, 36kV type
