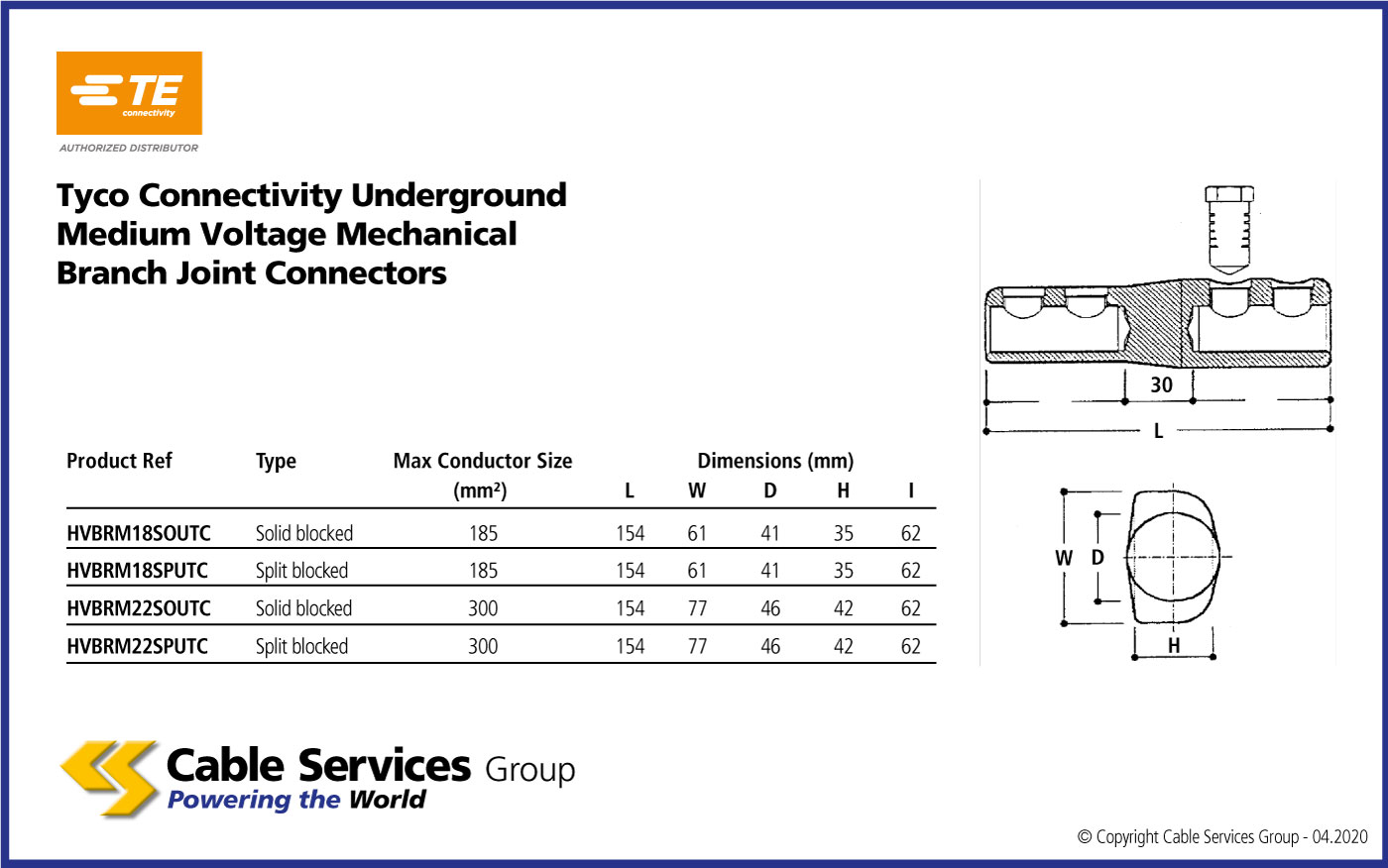

TE Connectivity Underground Medium Voltage Mechanical Branch Joint Connectors

£0.00

Medium Voltage Branch Joint for Alumimium or Copper Cable

Clear
Category:

Selection Table

Data Sheets

Download Data Sheet

ReferenceName
BLMT25/95-1325 - 95mm2 conductor conductor size, 13mm2 diameter fixing size
BLMT25/95-1725 - 95mm2 conductor conductor size, 17mm2 diameter fixing size
BLMT35/150-1335 - 150mm2 conductor conductor size, 13mm2 diameter fixing size
BLMT35/150-1735 - 150mm2 conductor conductor size, 17mm2 diameter fixing size
BLMT95/240-1395 - 240mm2 conductor conductor size, 13mm2 diameter fixing size
BLMT95/240-1795 - 240mm2 conductor conductor size, 17mm2 diameter fixing size
BLMT120/300-13120 - 300mm2 conductor conductor size, 13mm2 diameter fixing size
BLMT120/300-17120 - 300mm2 conductor conductor size, 17mm2 diameter fixing size
BLMT150/400-13120 - 300mm2 conductor conductor size, 13/0mm2 diameter fixing size
BLMT150/400-17150 - 400mm2 conductor conductor size, 17mm2 diameter fixing size
BLMT150/400-21150 - 400mm2 conductor conductor size, 21mm2 diameter fixing size
BLMT500/630-13MK2500 - 630mm2 conductor conductor size, 13mm2 diameter fixing size
BLMT500/630-17MK2500 - 630mm2 conductor conductor size, 17mm2 diameter fixing size
BLMT500/630-21MK2500 - 630mm2 conductor conductor size, 21mm2 diameter fixing size
BLMT800-50x56-D21800mm2 conductor conductor size, 21mm2 diameter fixing size
BLMT800-80x40-2D14x401000mm2 conductor conductor size, 2x14mm2 diameter fixing size
