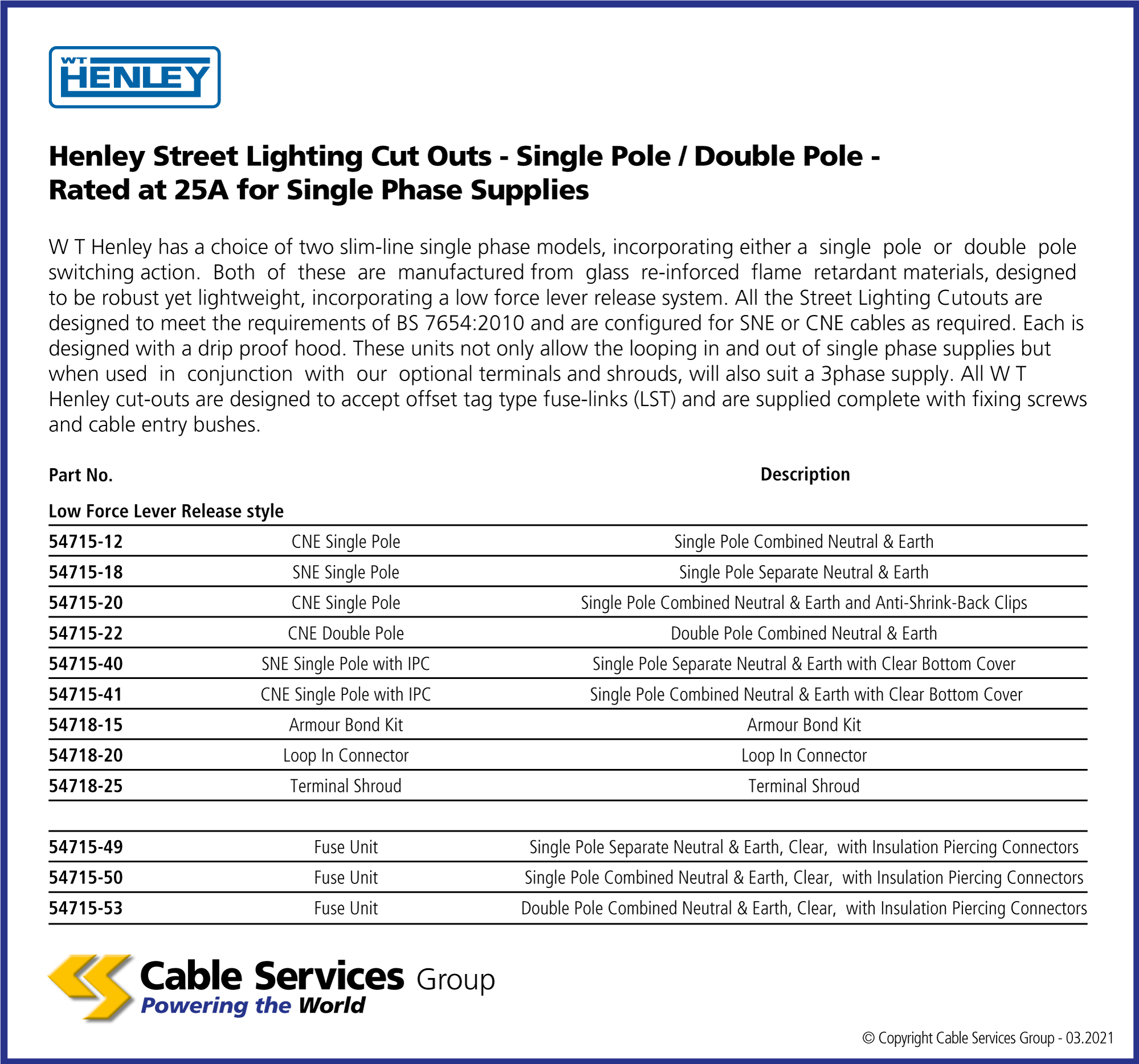

Selection Table
Henley Street Lighting Cut Outs – Single Pole / Double Pole – Rated at 25A for single phase supplies.
W T Henley has a choice of two slim-line single phase models, incorporating either a single pole or double pole switching action. Both of these are manufactured from glass re-inforced flame retardant materials, designed to be robust yet lightweight, incorporating a low force lever release system. All the Street Lighting Cutouts are designed to meet the requirements of BS 7654:2010 and are configured for SNE or CNE cables as required. Each is designed with a drip proof hood. These units not only allow the looping in and out of single phase supplies but when used in conjunction with our optional terminals and shrouds, will also suit a 3phase supply. All W T Henley cut-outs are designed to accept offset tag type fuse-links (LST) and are supplied complete with fixing screws and cable entry bushes.
Data Sheets
| Reference | Name | |
|---|---|---|
| 54715-12 | Single Pole Combined Neutral & Earth variant | |
| 54715-18 | Single Pole Separate Neutral & Earth variant | |
| 54715-20 | Single Pole Combined Neutral & Earth and Anti-Shrink-Back Clips variant | |
| 54715-22 | Double Pole Combined Neutral & Earth variant | |
| 54715-40 | Single Pole Separate Neutral & Earth with Clear Bottom Cover variant | |
| 54715-41 | Single Pole Combined Neutral & Earth with Clear Bottom Cover variant | |
| 54718-15 | Armour Bond Kit variant | |
| 54718-20 | Loop In Connector variant | |
| 54718-25 | Terminal Shroud variant | |
| 54715-49 | Single Pole Separate Neutral & Earth, Clear, with Insulation Piercing Connectors variant | |
| 54715-50 | Single Pole Combined Neutral & Earth, Clear, with Insulation Piercing Connectors variant | |
| 54715-53 | Double Pole Combined Neutral & Earth, Clear, with Insulation Piercing Connectors variant |
