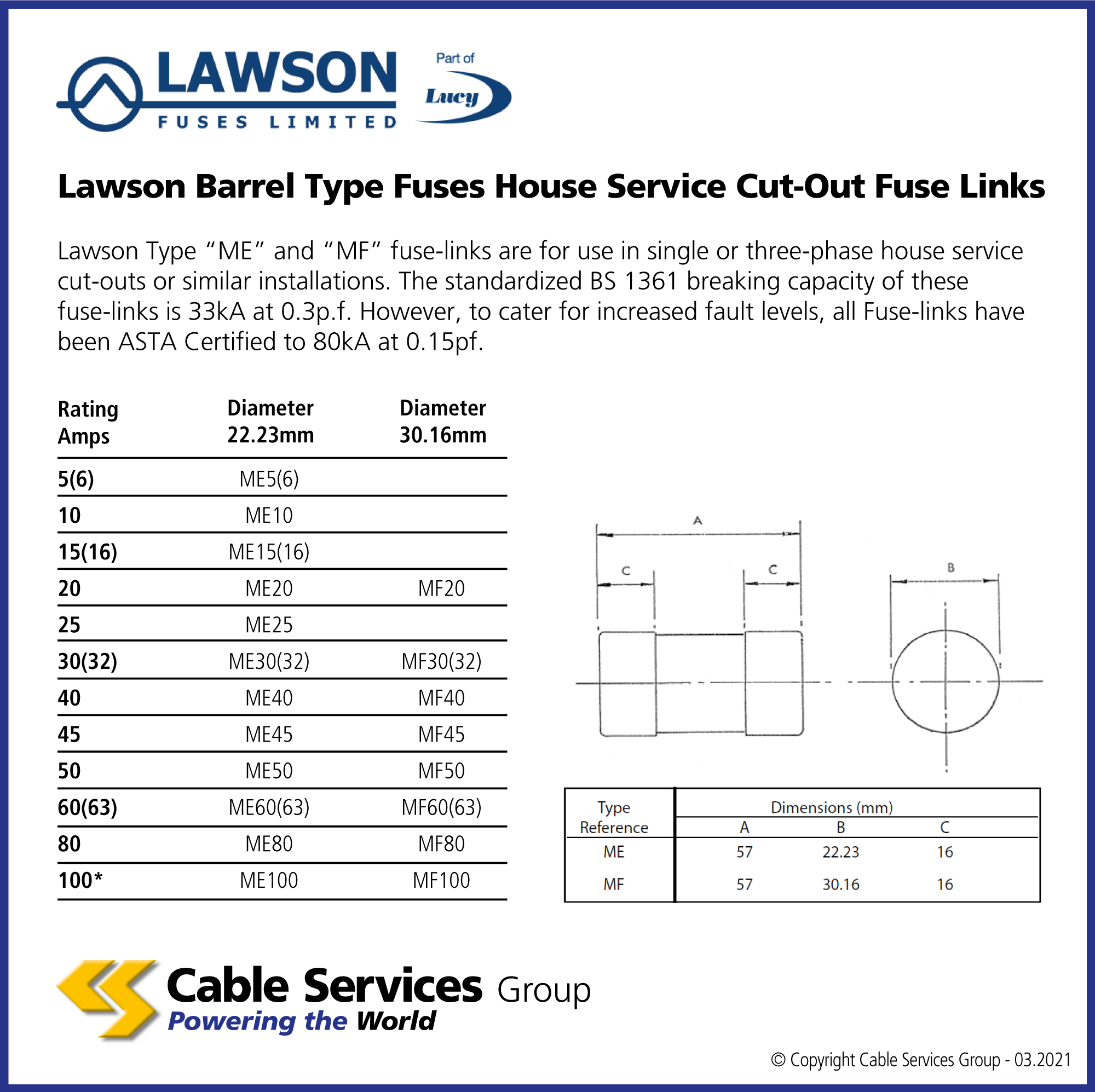

Selection Table

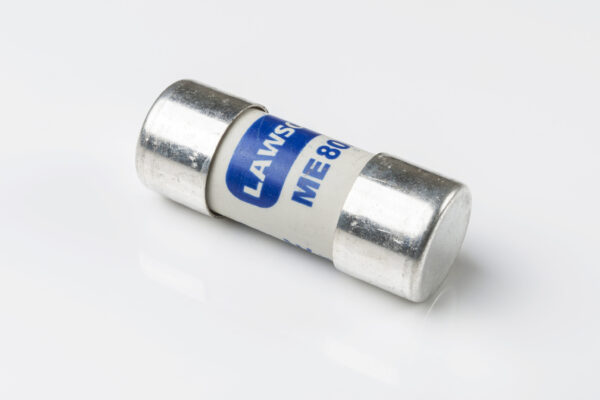

Lawson Barrel Type Fuses House Service Cut-Out Fuse Links
Lawson Type “ME” and “MF” fuse-links are for use in single or three-phase house service cut-outs or similar installations. The standardized BS 1361 breaking capacity of these fuse-links is 33kA at 0.3p.f. However, to cater for increased fault levels, all Fuse-links have been ASTA Certified to 80kA at 0.15pf.
Data Sheets
| Reference | Name | |
|---|---|---|
| ME5(6) | 5(6)amps rating, 22.23mm diameter | |
| ME10 | 10amps rating, 22.23mm diameter | |
| ME15(16) | 15(16)amps rating, 22.23mm diameter | |
| ME20 | 20amps rating, 22.23mm diameter | |
| ME25 | 25amps rating, 22.23mm diameter | |
| ME30(32) | 30(32)amps rating, 22.23mm diameter | |
| ME40 | 40amps rating, 22.23mm diameter | |
| ME45 | 45amps rating, 22.23mm diameter | |
| ME50 | 50amps rating, 22.23mm diameter | |
| ME60(63) | 60(63)amps rating, 22.23mm diameter | |
| ME80 | 80amps rating, 22.23mm diameter | |
| ME100 | 100amps rating, 23.23mm diameter | |
| MF20 | 20amps rating, 30.16mm diameter | |
| MF30(32) | 30(32)amps rating, 30.16mm diameter | |
| MF40 | 40amps rating, 30.16mm diameter | |
| MF45 | 45amps rating, 30.16mm diameter | |
| MF50 | 50amps rating, 30.16mm diameter | |
| MF60(63) | 60(63)amps rating, 30.16mm diameter | |
| MF80 | 80amps rating, 30.16mm diameter | |
| MF100 | 100amps rating, 30.16mm diameter |
