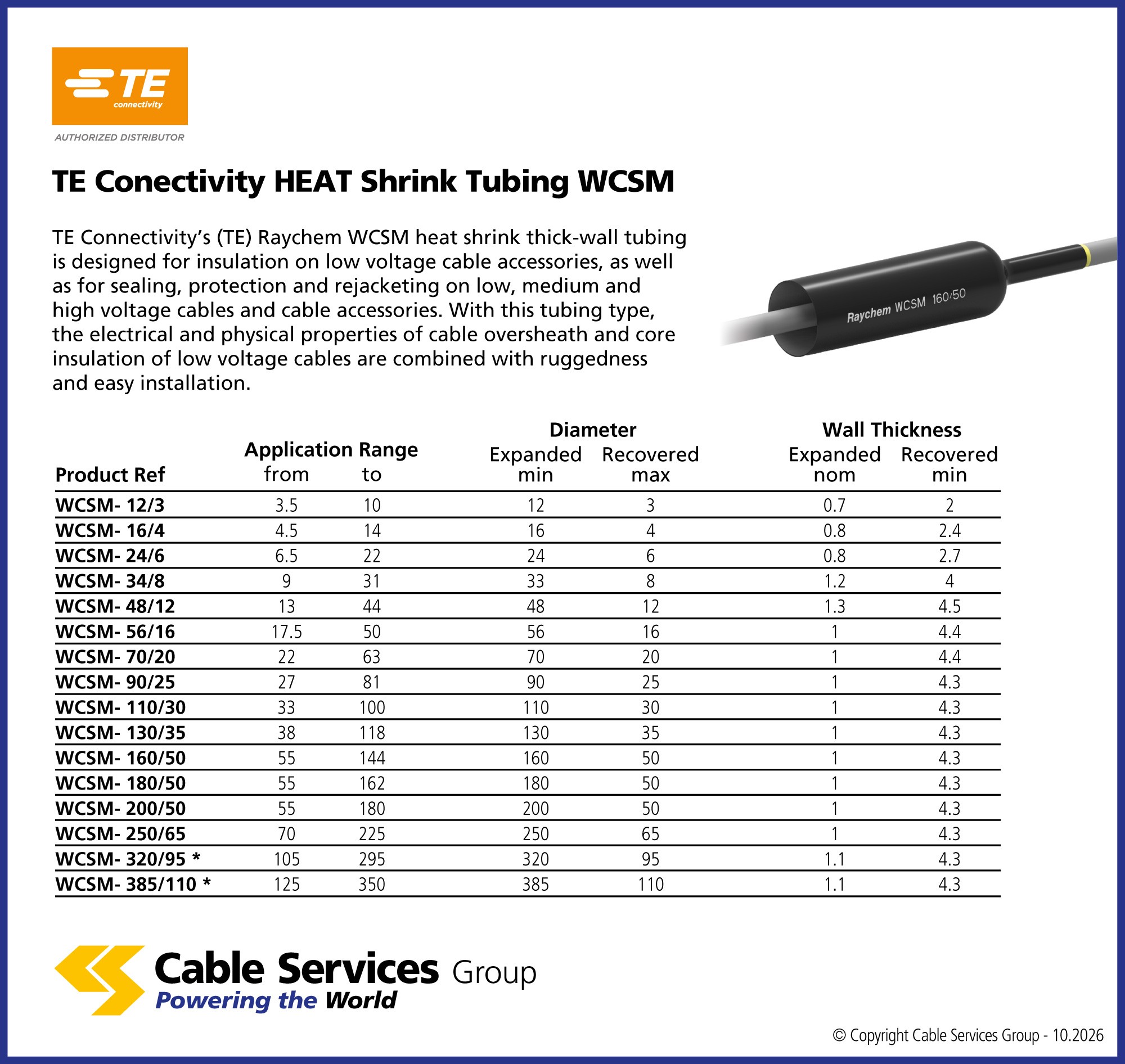

Selection table
TE Connectivity Heat Shrink Tubing WCSM

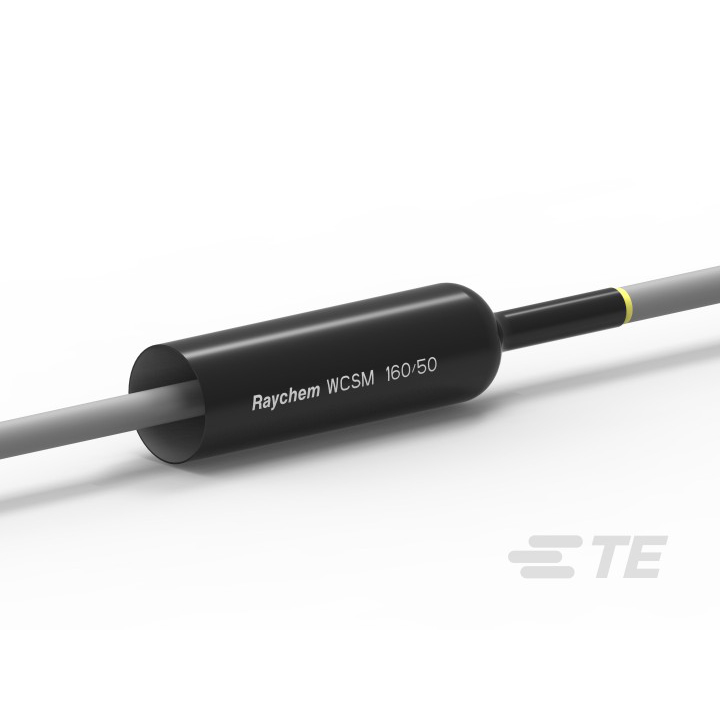

TE Connectivity Heat Shrinkable thick wall insulating tubing (WCSM)
Heat shrinkable heavy wall insulation and outer sealing sleeve WCSM is designed specifically for insulating and sealing power cables and accessories.
Within this tubing, the electrical and physical properties of the cable oversheath material are combined for easy installation and durability.
Upon heat application, the Raychem tubing WCSM recovers to a smaller diameter which, due to its high shrink ratio, fits tightly over a wide range of cable sizes.
KEY FEATURES
- High electrical characteristics and mechanical strength for low voltage applications
- Thick-wall, cross-linked polyolefin. UV stabilized against irradiation and weathering
- Halogen and silicon-free material content, non corrosive, non-toxic, free of lead and aluminium
- Available inline coated with hot melt adhesive or uncoated
- Colour black, 3:1 shrink ratio
- Unlimited shelf-life
Data sheets
| Reference | Name | |
|---|---|---|
| WCSM- 12/3 | 3.5 - 10mm application range | |
| WCSM- 16/4 | 4.5 - 14mm application range | |
| WCSM- 24/6 | 6.5 - 22mm application range | |
| WCSM- 34/8 | 9 - 31mm application range | |
| WCSM- 48/12 | 13 - 44mm application range | |
| WCSM- 56/16 | 17.5 - 50mm application range | |
| WCSM- 70/20 | 22 - 63mm application range | |
| WCSM- 90/25 | 27 - 81mm application range | |
| WCSM- 110/30 | 33 - 100mm application range | |
| WCSM- 130/35 | 38 - 118mm application range | |
| WCSM- 160/50 | 55 - 144mm application range | |
| WCSM- 180/50 | 55 - 180mm application range | |
| WCSM- 200/50 | 55 - 162mm application range | |
| WCSM- 250/65 | 70 - 255mm application range | |
| WCSM- 320/95 * | 105 - 295mm application range | |
| WCSM- 385/110 * | 125 - 350mm application range |
