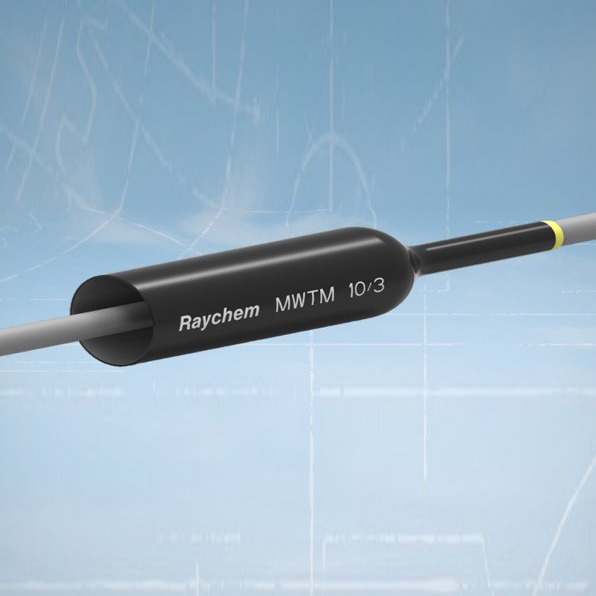

TE Connectivity Raychem MWTM Medium Walled Halogen-Free Heat Shrink Tubing

£0.00

TE Connectivity’s (TE) Raychem MWTM heat shrink medium-wall tubing is designed for insulation on low voltage cable accessories, as well as for sealing and protection purposes on low and medium voltage cables and cable accessories. In this tubing type, the electrical and physical properties of cable oversheath and core insulation of low voltage cables are combined with ruggedness and easy installation

Clear

Selection Table

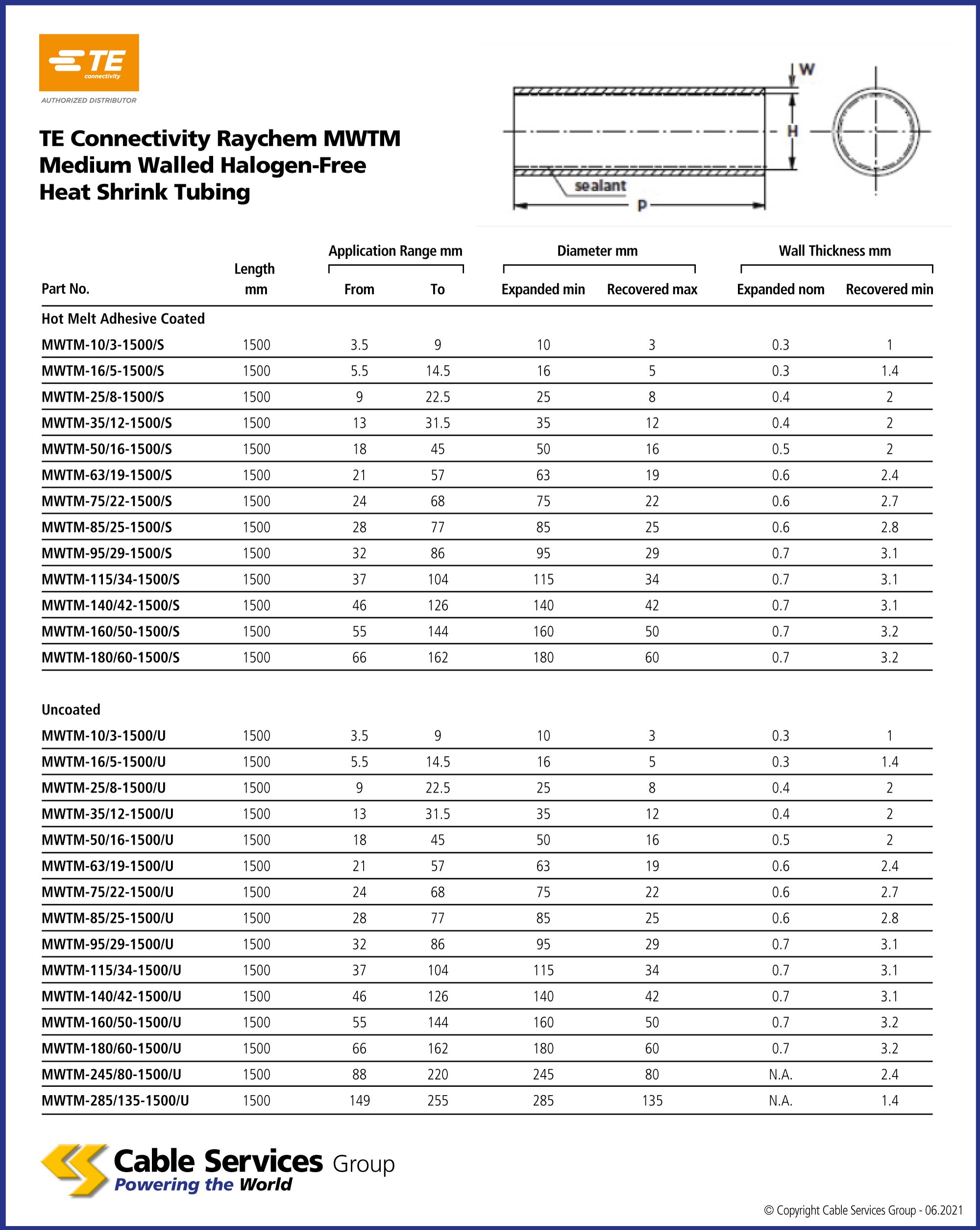

Data Sheets

Download Data Sheet

ReferenceName
MWTM16/5-1500/U5.5 - 14.5mm size, Uncoated coating
MWTM285/135-1500/U149 - 255mm size, Uncoated coating
MWTM245/80-1500/U88 - 220mm size, Uncoated coating
MWTM180/60-1500/U66 - 162mm size, Uncoated coating
MWTM160/50-1500/U55 - 144mm size, Uncoated coating
MWTM140/42-1500/U46 - 126mm size, Uncoated coating
MWTM115/34-1500/U37 - 104mm size, Uncoated coating
MWTM95/29-1500/U32 - 86mm size, Uncoated coating
MWTM85/25-1500/U28 - 77mm size, Uncoated coating
MWTM75/22-1500/U24 - 68mm size, Uncoated coating
MWTM63/19-1500/U21 - 57mm size, Uncoated coating
MWTM50/16-1500/U18 - 45mm size, Uncoated coating
MWTM35/12-1500/U13 - 31.5mm size, Uncoated coating
MWTM25/8-1500/U9 - 22.5mm size, Uncoated coating
MWTM10/3-1500/S3.5 - 9mm size, Hot Melt Adhesive coating
MWTM10/3-1500/U3.5 - 9mm size, Uncoated coating
MWTM180/60-1500/S66 - 162mm size, Hot Melt Adhesive coating
MWTM160/50-1500/S55 - 144mm size, Hot Melt Adhesive coating
MWTM140/42-1500/S46 - 126mm size, Hot Melt Adhesive coating
MWTM115/34-1500/S37 - 104mm size, Hot Melt Adhesive coating
MWTM95/29-1500/S32 - 86mm size, Hot Melt Adhesive coating
MWTM85/25-1500/S28 - 77mm size, Hot Melt Adhesive coating
MWTM75/22-1500/S24 - 68mm size, Hot Melt Adhesive coating
MWTM63/19-1500/S21 - 57mm size, Hot Melt Adhesive coating
MWTM50/16-1500/S18 - 45mm size, Hot Melt Adhesive coating
MWTM35/12-1500/S13 - 31.5mm size, Hot Melt Adhesive coating
MWTM25/8-1500/S9 - 22.5mm size, Hot Melt Adhesive coating
MWTM16/5-1500/S5.5 - 14.5mm size, Hot Melt Adhesive coating
