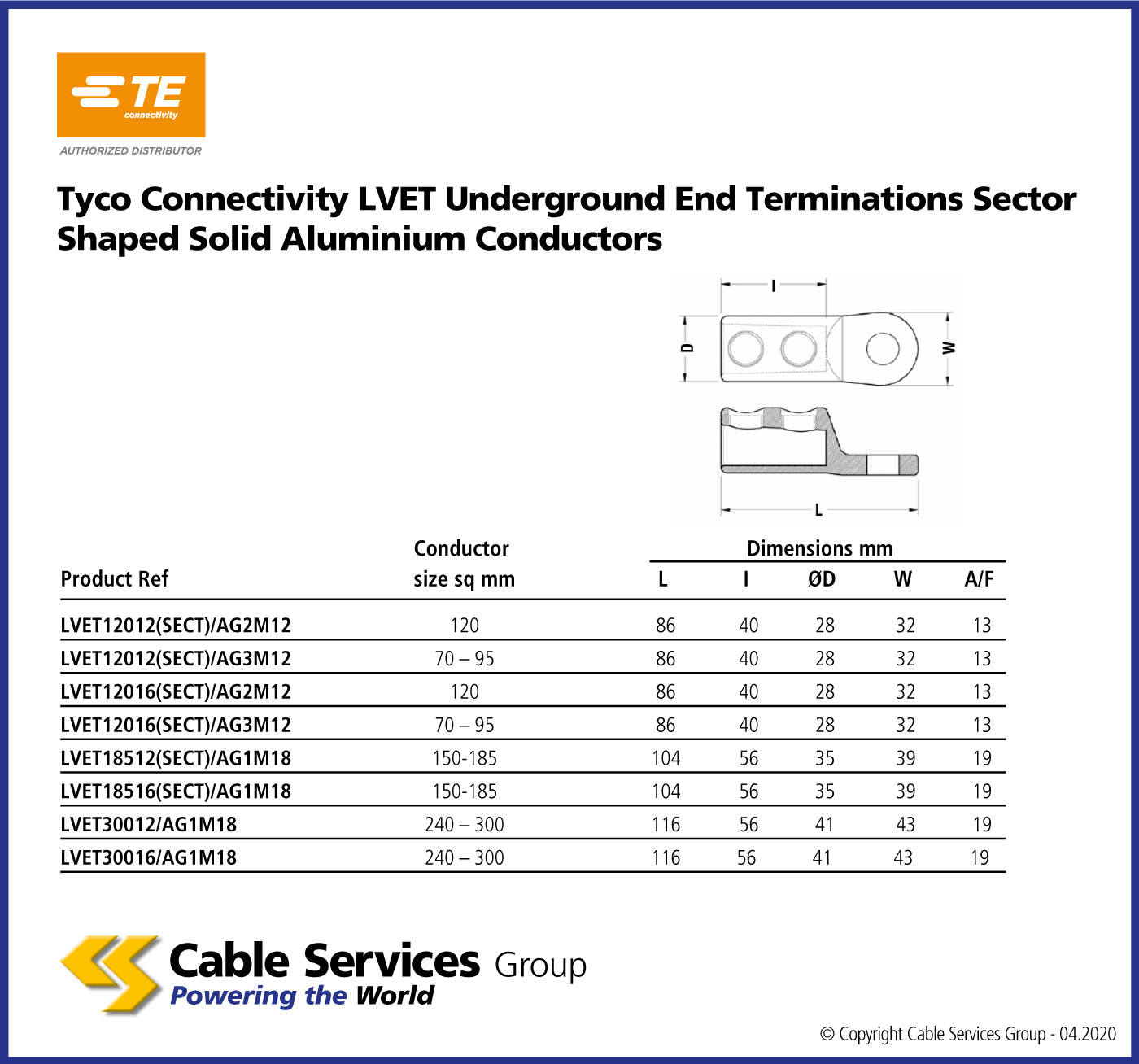

Selection Table

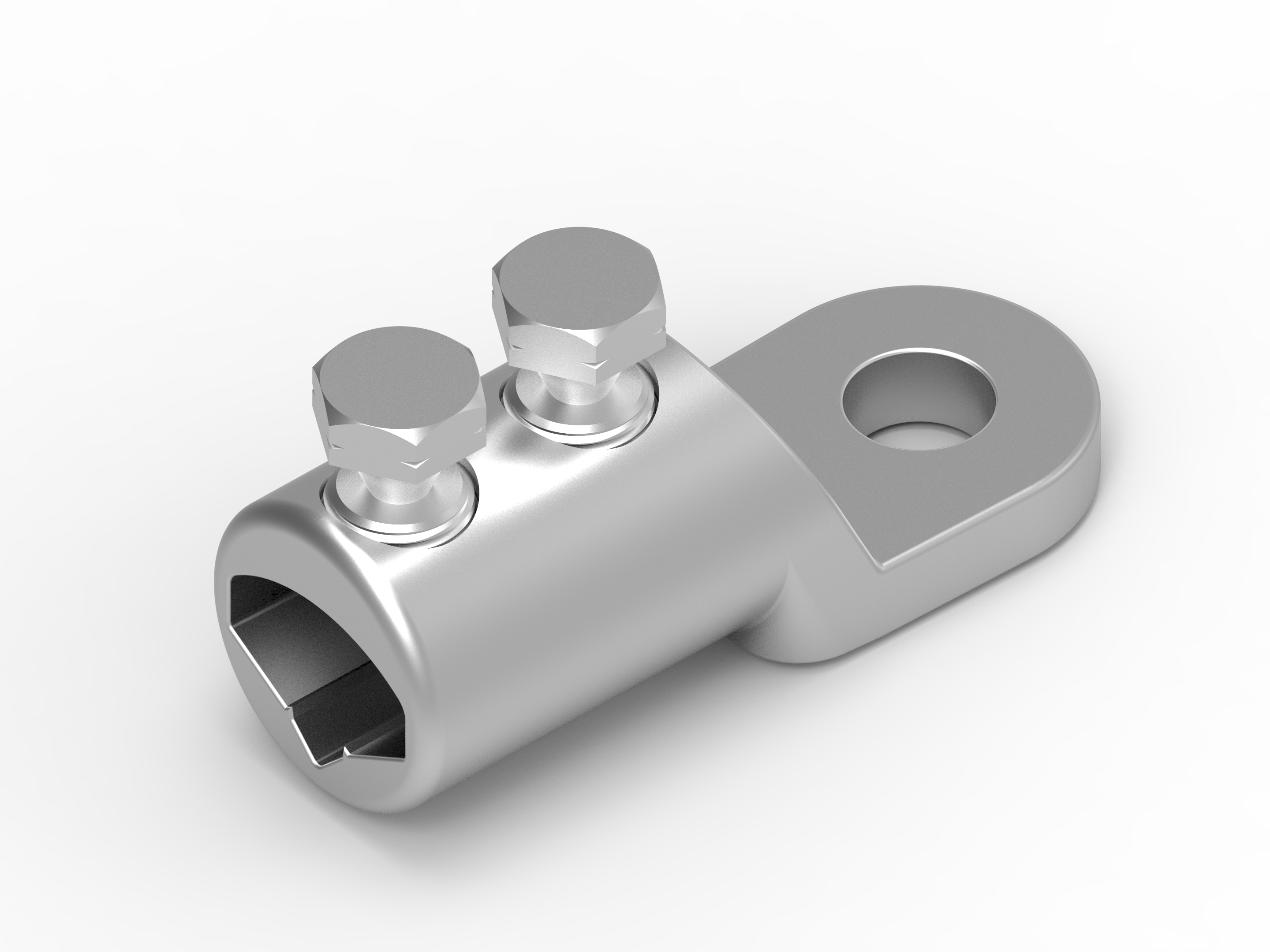

TE Connectivity LVET Underground End Terminations Sector Shaped Solid Aluminium Conductors
These fittings are designed primarily for use on the solid shaped aluminum conductor (either 120 or 90 degress angle) of 3 or 4 core cables
Data Sheets
| Reference | Name | |
|---|---|---|
| LVET12012(SECT)/AG2M12 | 120mm2 conductor conductor size, 86mm2 fixing size | |
| LVET12012(SECT)/AG3M12 | 70 – 95mm2 conductor conductor size, 86mm2 fixing size | |
| LVET12016(SECT)/AG2M12 | 120mm2 conductor conductor size, 86/0mm2 fixing size | |
| LVET12016(SECT)/AG3M12 | 70 – 95mm2 conductor conductor size, 86/0mm2 fixing size | |
| LVET18512(SECT)/AG1M18 | 150 - 185mm2 conductor conductor size, 104mm2 fixing size | |
| LVET18516(SECT)/AG1M18 | 150 - 185mm2 conductor conductor size, 104/0mm2 fixing size | |
| LVET30012/AG1M18 | 240 – 300mm2 conductor conductor size, 116mm2 fixing size | |
| LVET30016/AG1M18 | 240 – 300mm2 conductor conductor size, 116/0mm2 fixing size |
